46 EKI-7710 Series User Manual
4.5.2 Port Mirror
Port mirroring function allows the sending of a copy of network packets seen on one
switch port to a network monitoring connection on another switch port. Port mirroring
can be used to analyze and debug data or diagnose errors on a network or to mirror
either inbound or outbound traffic (or both).
There are no preset values in the Port Mirror. The displayed values do not represent
the actual setting values.
To access this page, click L2 Switching > Port Mirror.

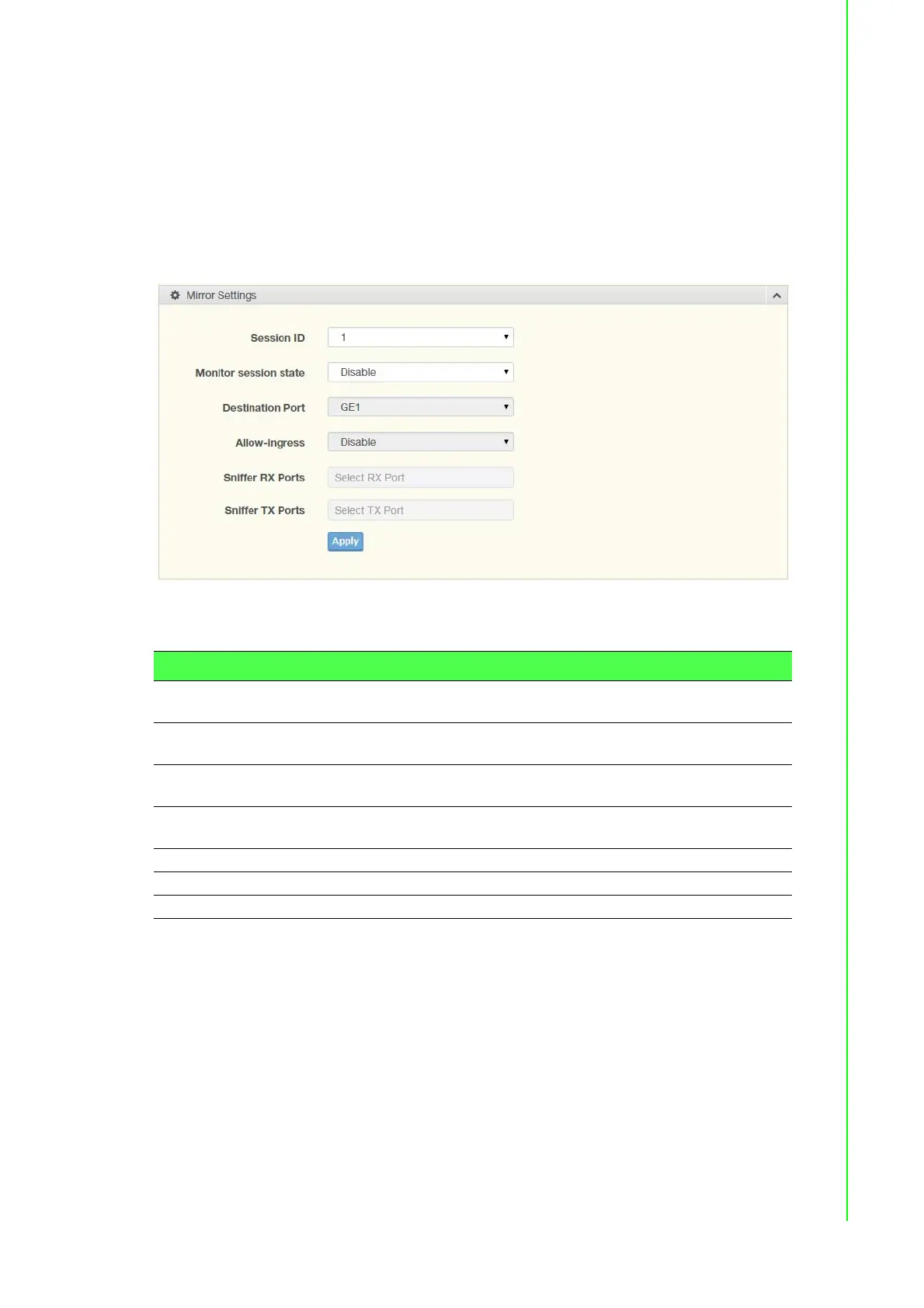

Figure 4.16 L2 Switching > Port Mirror
The following table describes the items in the previous figure.
The ensuing table for Mirror Status settings are informational only: Session ID, Des-
tination Port, Ingress State, Source TX Port and Source RX Port.
4.5.3 Link Aggregation
Link Aggregation is a method for combining multiple network connections in parallel
in order to increase throughput beyond the capability of a single connection, and to
provide redundancy in case one of the links should fail.
4.5.3.1 Load Balance
The Load Balancing page allows you to select between a MAC Address or IP/MAC
Address algorithm for the even distribution of IP traffic across two or more links.
Item Description
Session ID Click the drop-down menu to select a port mirroring session from the
list. The number of sessions allowed is platform specific.
Monitor session state Click the drop-down menu to enable or disable the session mode for a
selected session ID.
Destination Port Click the drop-down menu to select the destination port and receive
all the traffic from configured mirrored port(s).
Allow-ingress Click the drop-down menu to enable or disable the Allow-ingress func-
tion.
Sniffer RX Ports Enter the variable to define the RX port.
Sniffer TX Ports Enter the variable to define the TX port.
Apply Click Apply to save the values and update the screen.
