38 EKI-7710 Series User Manual
The ensuing table for Ether-Like MIB Counters settings are informational only:
dot3StatsAlignmentErrors, dot3StatsFCSErrors, dot3StatsSingleCollisionFrames,
dot3StatsMultipleCollisionFrames, dot3StatsDeferredTransmissions,
dot3StatsLateCollisions, dot3StatsExcessiveCollisions, dot3StatsFrameTooLongs,
dot3StatsSymbolErrors, dot3ControlInUnknownOpcodes, dot3InPauseFrames and
dot3OutPauseFrames.
The ensuing table for Rmon MIB Counters settings are informational only: ether-
StatsDropEvents, etherStatsOctets, etherStatsPkts, etherStatsBroadcastPkts, ether-
StatsMulticastPkts, etherStatsCRCAlignErrors, etherStatsUnderSizePkts,
etherStatsOverSizePkts, etherStatsFragments, etherStatsJabbers, etherStatsColli-
sions, etherStatsPkts64Octets, etherStatsPkts65to127Octets,
etherStatsPkts128to255Octets, etherStatsPkts256to511Octets,
etherStatsPkts512to1023Octets and etherStatsPkts1024to1518Octets.
4.3.3.2 Port Utilization
To access this page, click Monitoring > Port Monitoring > Port Utilization.

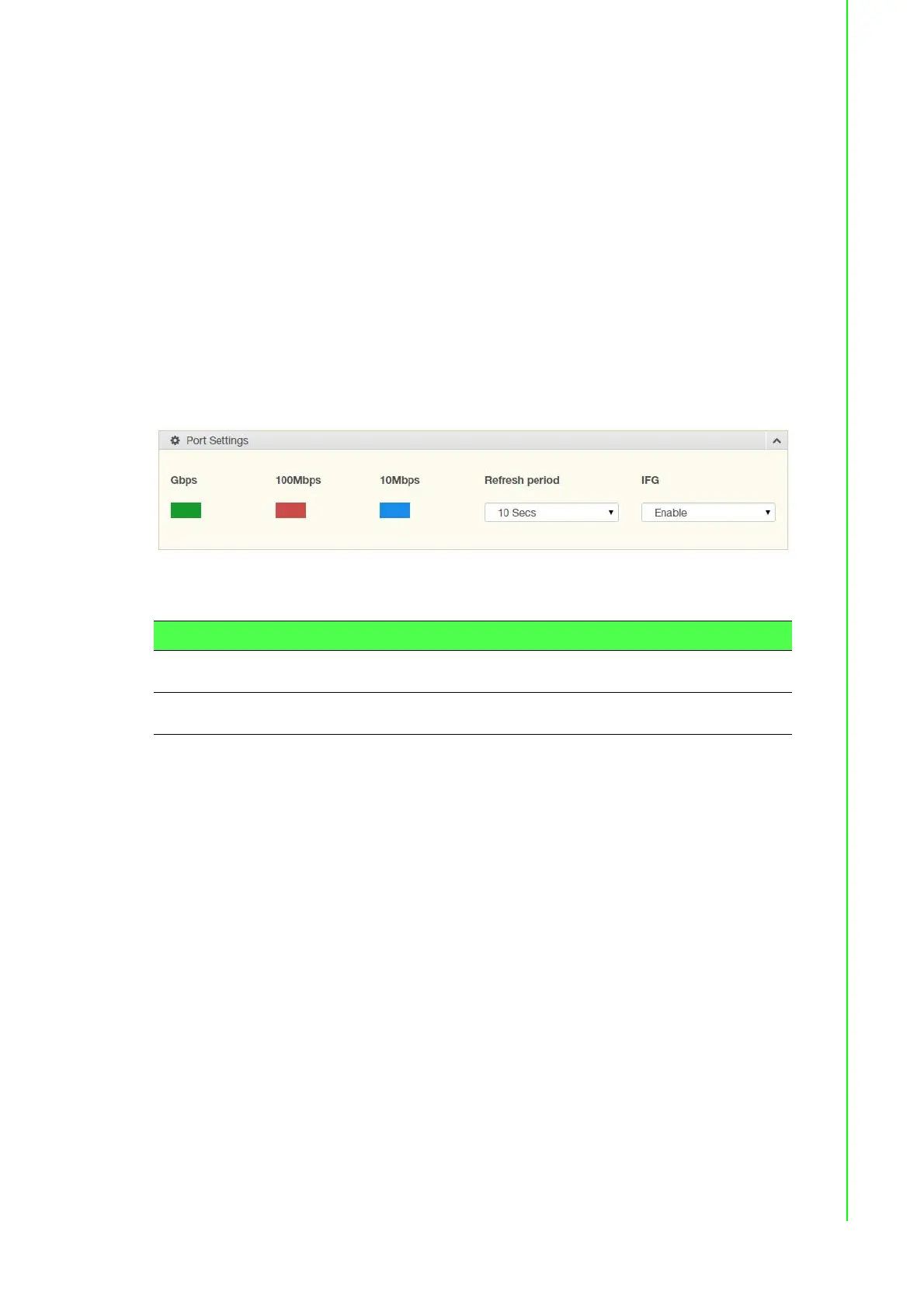

Figure 4.6 Monitoring > Port Monitoring > Port Utilization
The following table describes the items in the previous figure.
4.3.4 Link Aggregation
The Link Aggregation function provides LAG information for each trunk. It displays
membership status, link state and membership type for each port.
To access this page, click Monitoring > Link Aggregation.
The ensuing table for Link Aggregation Group Status settings are informational
only: LAG, Name, Type, Link State, Active Member and Standby Member.
The ensuing table for LACP Information settings are informational only: LAG, Port,
PartnerSysId, PnKey, AtKey, Sel, Mux, Receiv, PrdTx, AtState and PnState.
4.3.5 LLDP Statistics
The LLDP Statistics page displays the LLDP statistics.
Item Description
Refresh period Click the drop-down menu to select and designate a period (second
intervals) to refresh the information (TX and RX) listings.
IFG Click the drop-down menu to enable or disable the Interframe Gap
(IFG) statistic.
