Advantech EKI-7710E-2C User Manual

EKI-7710 Series User Manual 13
3. Once the bottom is clear of the DIN rail, lift the device straight up to unhook it
from the DIN rail.
\

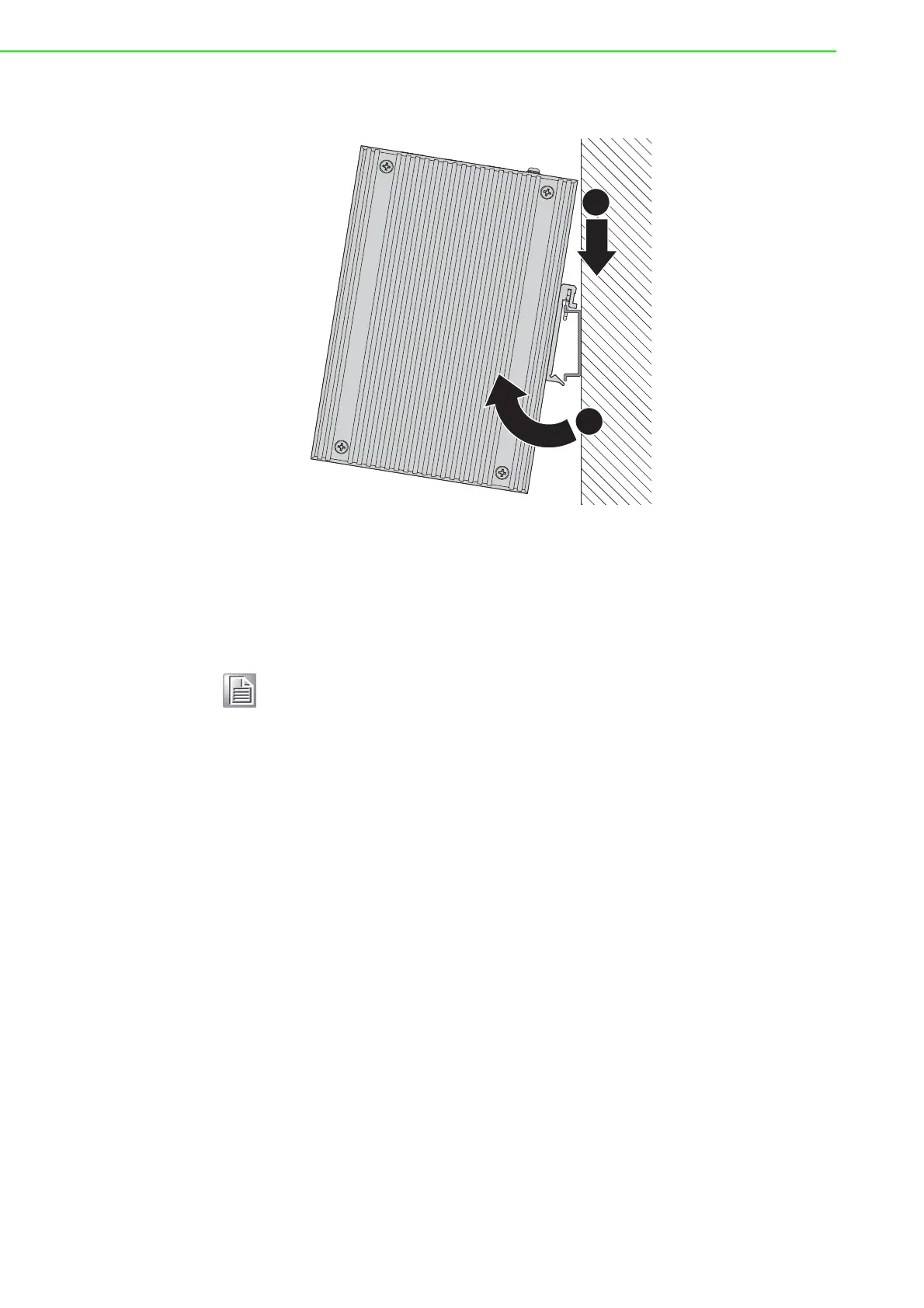

Figure 2.2 Removing the DIN-Rail
2.3.2 Wall-Mounting
The wall mounting option provides better shock and vibration resistance than the DIN
rail vertical mount.
Before the device can be mounted on a wall, you will need to remove the DIN rail
plate.
1. Rotate the device to the rear side and locate the DIN mounting plate.
2. Remove the screws securing the DIN mounting plate to the rear panel of the
switch.
3. Remove the DIN mounting plate. Store the DIN mounting plate and provided
screws for later use.
4. Align the wall mounting plates on the rear side. The screw holes on the device
and the mounting plates must be aligned, see the following illustration.
1
2
DIN Rail
Note! When installing, make sure to allow for enough space to properly install
the cabling.
