The following table describes the items in the previous figure.
The ensuing table for IGMP Querier Status settings are informational only: VLAN ID,
Querier State, Querier Status, Querier Version and Querier IP.
IGMP Static Groups
To access this page, click L2 Switching > Multicast > IGMP Snooping > IGMP
Static Groups.

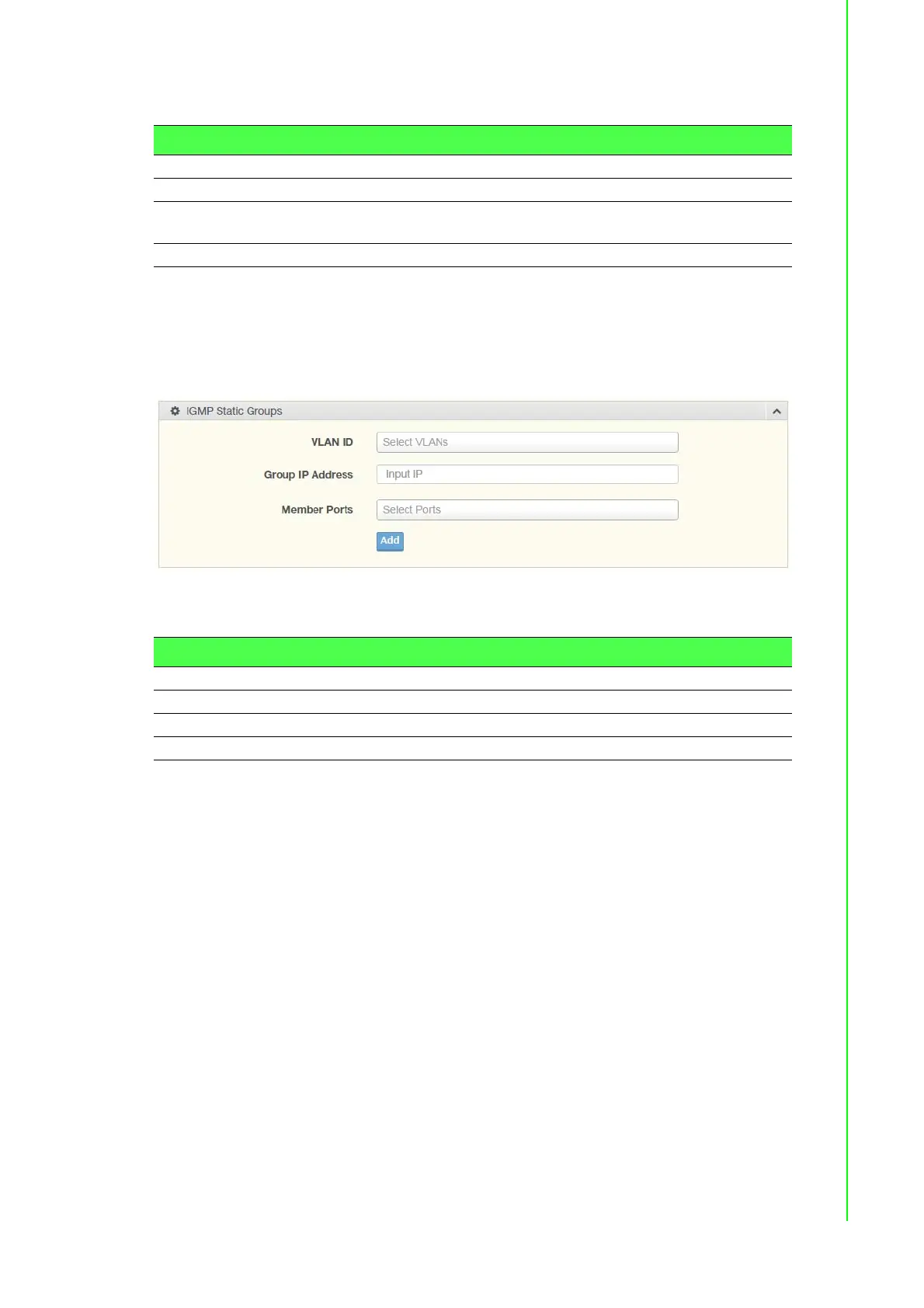

Figure 4.33 L2 Switching > Multicast > IGMP Snooping > IGMP Static Groups
The following table describes the items in the previous figure.
The ensuing table for IGMP Static Groups Status settings are informational only:
VLAN ID, Group IP Address, Member Ports and Modify.
Multicast Groups
To access this page, click L2 Switching > Multicast > IGMP Snooping > Multicast
Groups.
The ensuing table for Multicast Groups settings are informational only: VLAN ID,
Group IP Address, Member Ports, Type and Life (Sec).
Router Ports
To access this page, click L2 Switching > Multicast > IGMP Snooping > Router
Ports.
The ensuing table for Router Ports settings are informational only: VLAN ID, Port
and Expiry Time (Sec).
4.5.8.3 MLD Snooping
The MLD Snooping page allows you to select the snooping status (enable or dis-
able), the version (v1 or v2) and the enabling/disabling of the report suppression for
the MLD querier, which sends out periodic general MLD queries and are forwarded
through all ports in the VLAN.
MLD Settings
Item Description
VLAN ID Select the VLAN ID to define the local IGMP querier.
Querier State Select Disable or Enable to configure the VLAN ID (IGMP Querier).
Querier Version Select the querier version (V2 or V3) designated to the selected VLAN
ID.
Apply Click Apply to save the values and update the screen.
Item Description
VLAN ID Select the VLAN ID to define IGMP static group.
Group IP Address Enter the IP address assigned to the VLAN ID.
Member Ports Enter the port numbers to associate with the static group.
Add Click Add to add an IGMP group.
