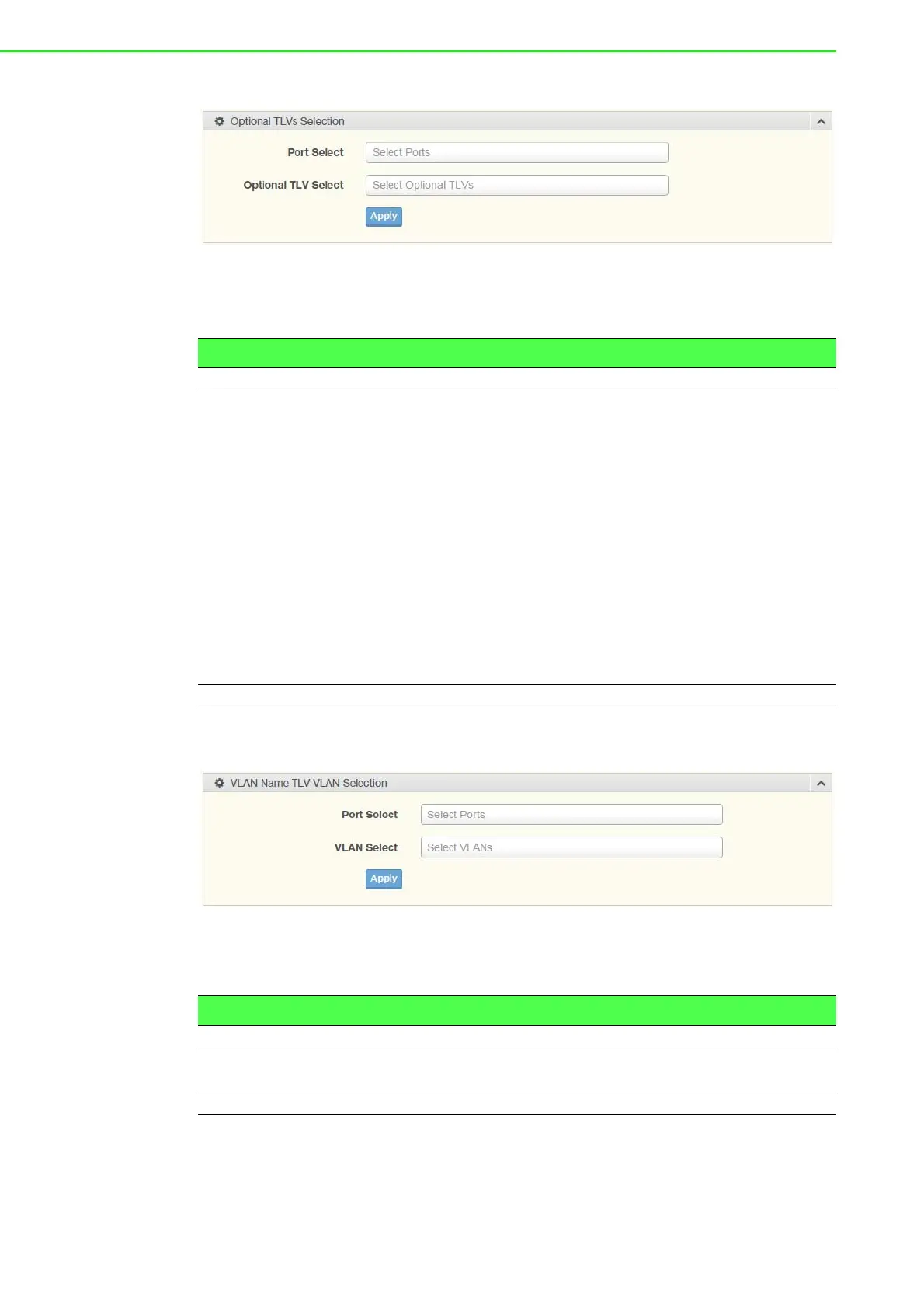

Figure 4.82 Management > LLDP > LLDP Port Settings > Optional TLVs
Selection
The following table describes the items in the previous figure.
The ensuing table for LLDP Port Status settings are informational only: Port, State
and Selected Optional TLVs.
Figure 4.83 Management > LLDP > LLDP Port Settings > VLAN Name TLV VLAN
Selection
The following table describes the items in the previous figure.
The ensuing table for LLDP Port VLAN TLV Status settings are informational only:
Port and Selected VLAN.
Item Description
Port Select Enter the port number associated with the TLV (optional) selection.
Optional TLV Select Click the drop-down menu to select the LLDP optional TLVs to be car-
ried (multiple selections are allowed).
 System Name: To include system name TLV in LLDP frames.
 Port Description: To include port description TLV in LLDP
frames.
 System Description: To include system description TLV in LLDP
frames.
 System Capability: To include system capability TLV in LLDP
frames.
 802.3 MAC-PHY:
 802.3 Link Aggregation:
 802.3 Maximum Frame Size:
 Management Address:
 802.1 PVID:
Apply Click Apply to save the values and update the screen.
Item Description
Port Select Enter the port number to associated with the TLV selection.
VLAN Select Select the VLAN Name ID to be carried out (multiple selection is
allowed).
Apply Click Apply to save the values and update the screen.
