4.9.3 Power Over Ethernet
Power Over Ethernet is the function supplying power to Powered Devices (PD)
through the switch in the event that AC power is not readily available.
Power over Ethernet can be used for the following areas:
 Surveillance devices
 I/O sensors for security requirements
 Wireless access points
4.9.3.1 PoE System Settings
The PoE System Settings page allows you to configure the overload disconnect and
the maximum available wattage.
To access this page, click Management > Power Over Ethernet > PoE System
Settings.

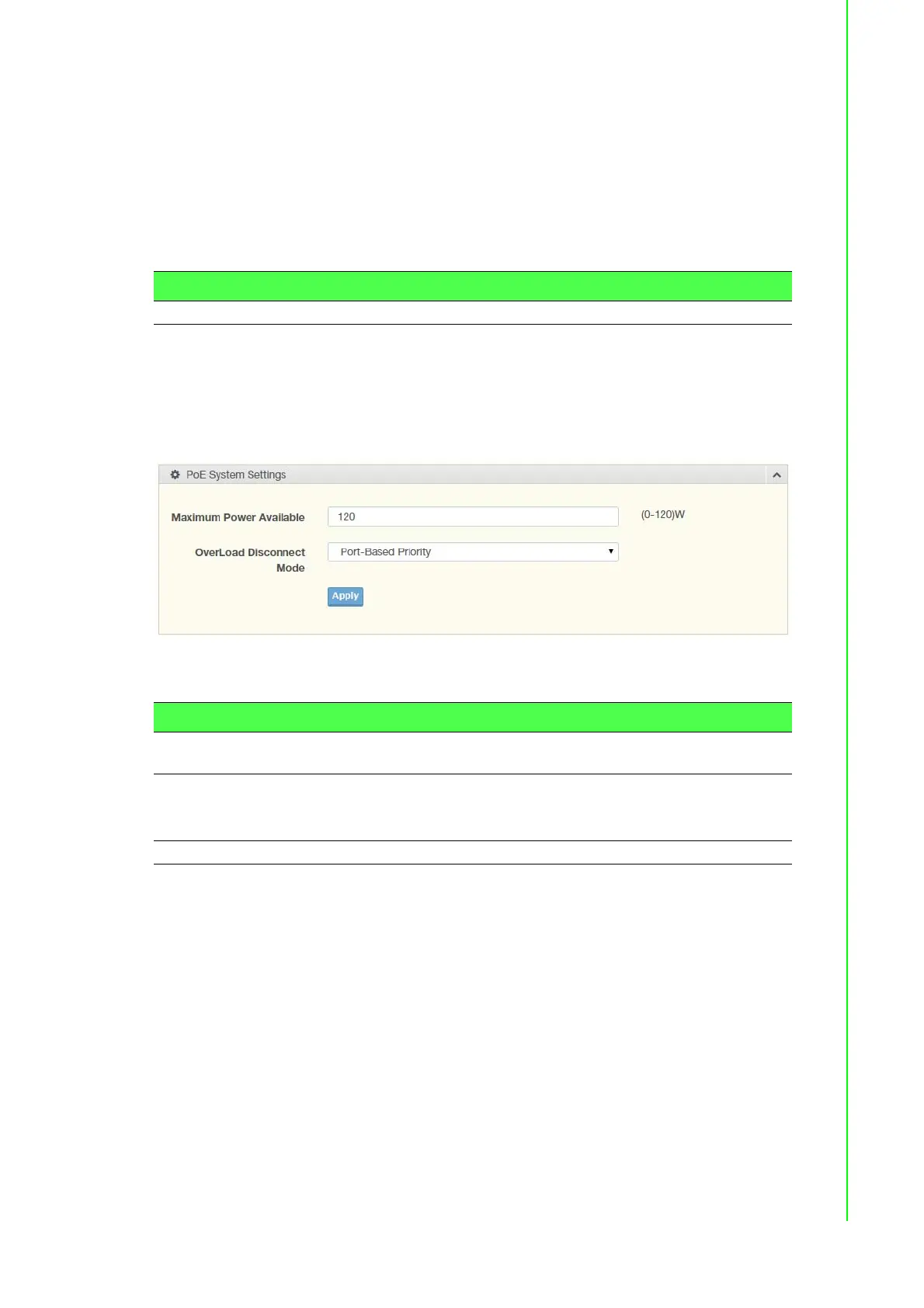

Figure 4.91 Management > Power Over Ethernet > PoE System Settings
The following table describes the items in the previous figure.
The ensuing table for PoE System Information settings are informational only: Firm-
ware Version, Maximum Power Available, Actual Power Consumption and Overload
Disconnect Type.
4.9.3.2 PoE Port Settings
The PoE Port Settings page allows you to configure the port status, its power limita-
tions, legacy mode status, and power limit settings.
Series Supported Models
EKI 7710E-2CP, 7710E-2CPI, 7710G-2CP, 7710G-2CPI
Item Description
Maximum Power
Available
Select the value in Watts to set the maximum available power.
OverLoad Discon-
nect Mode
Click the drop-down menu to designate the overload mode:
 Overload Port First:
 Port-Based Priority:
Apply Click Apply to save the values and update the screen.
