82 EKI-7710 Series User Manual
The following table describes the items in the previous figure.
The ensuing table for QoS Global Information settings are informational only: QoS
Mode.
4.8.1.2 QoS Settings
Once the QoS function is enabled, you can configure the available settings.
To access this page, click QoS > General > QoS Settings.

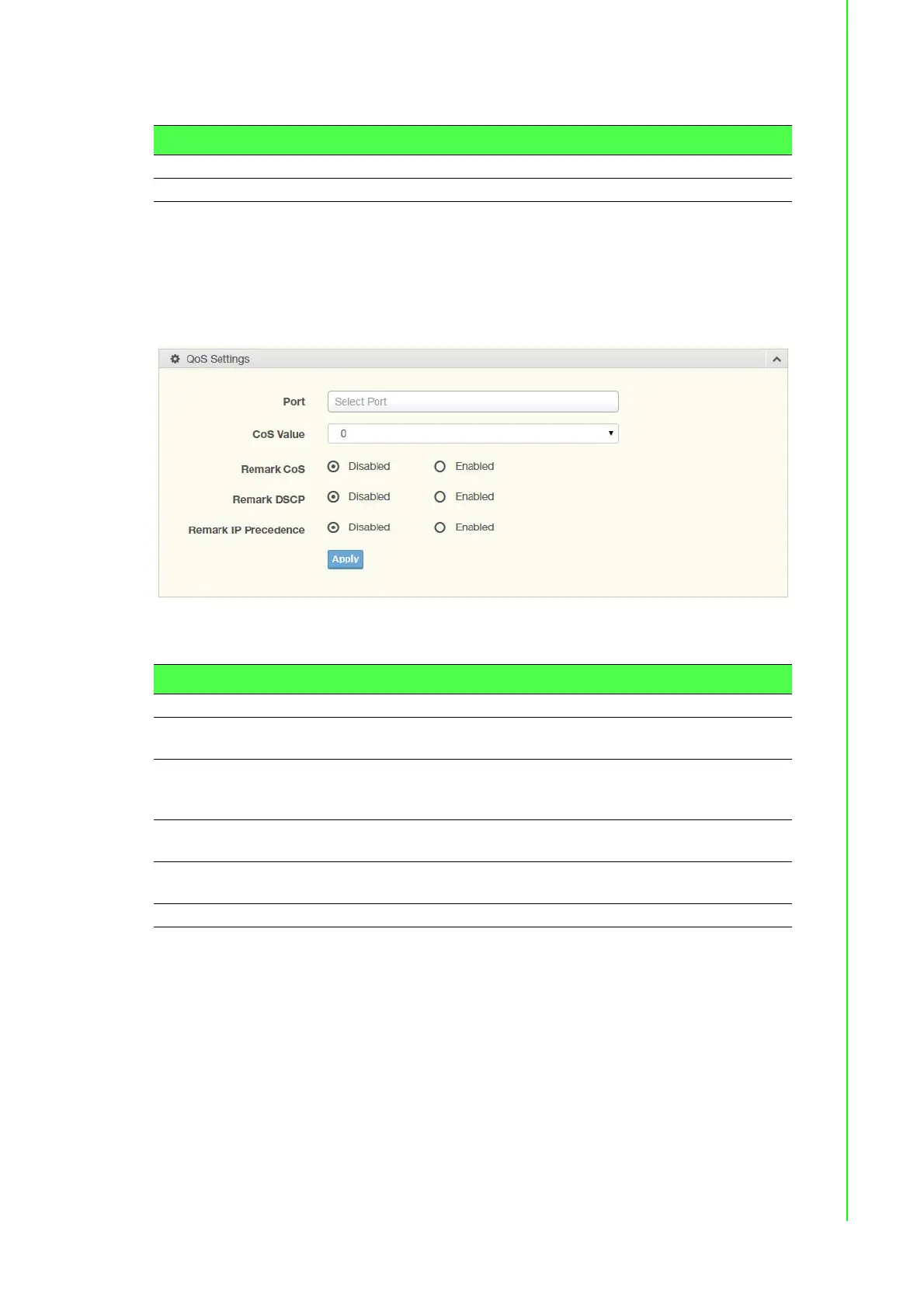

Figure 4.70 QoS > General > QoS Settings
The following table describes the items in the previous figure.
The ensuing table for QoS Status settings are informational only: Port, CoS value,
Remark CoS, Remark DSCP and Remark IP Precedence.
4.8.1.3 Queue Scheduling
The switch support eight CoS queues for each egress port. For each of the eight
queues, two types of scheduling can be configured: Strict Priority and Weighted
Round Robin (WRR).
Strict Priority scheduling is based on the priority of queues. Packets in a high-priority
queue are always sent first and packets in a low-priority queue are only sent after all
the high priority queues are empty.
Weighted RoundRobin (WRR) scheduling is based on the user priority specification
to indicate the importance (weight) of the queue relative to the other CoS queues.
WRR scheduling prevents low-priority queues from being completely ignored during
Item Description
QoS Mode Select Disabled or Basic to setup the QoS function.
Apply Click Apply to save the values and update the screen.
Item Description
Port Enter the port number to associate with the QoS setting.
CoS Value Click the drop-down menu to designate the Class of Service (CoS)
value (0 to 7) for the Port entry.
Remark CoS Click Disabled or Enabled to setup the Remark CoS function. When
enabled the LAN (preassigned priority values) is marked at Layer 2
boundary to CoS values.
Remark DSCP Click Disabled or Enabled to setup the DSCP remark option for the
QoS function.
Remark IP Prece-
dence
Click Disabled or Enabled to setup the Remark IP Precedence for
the QoS function.
Apply Click Apply to save the values and update the screen.
