To access this page, click L2 Switching > Spanning Tree > MST Instance ID Set-
tings.

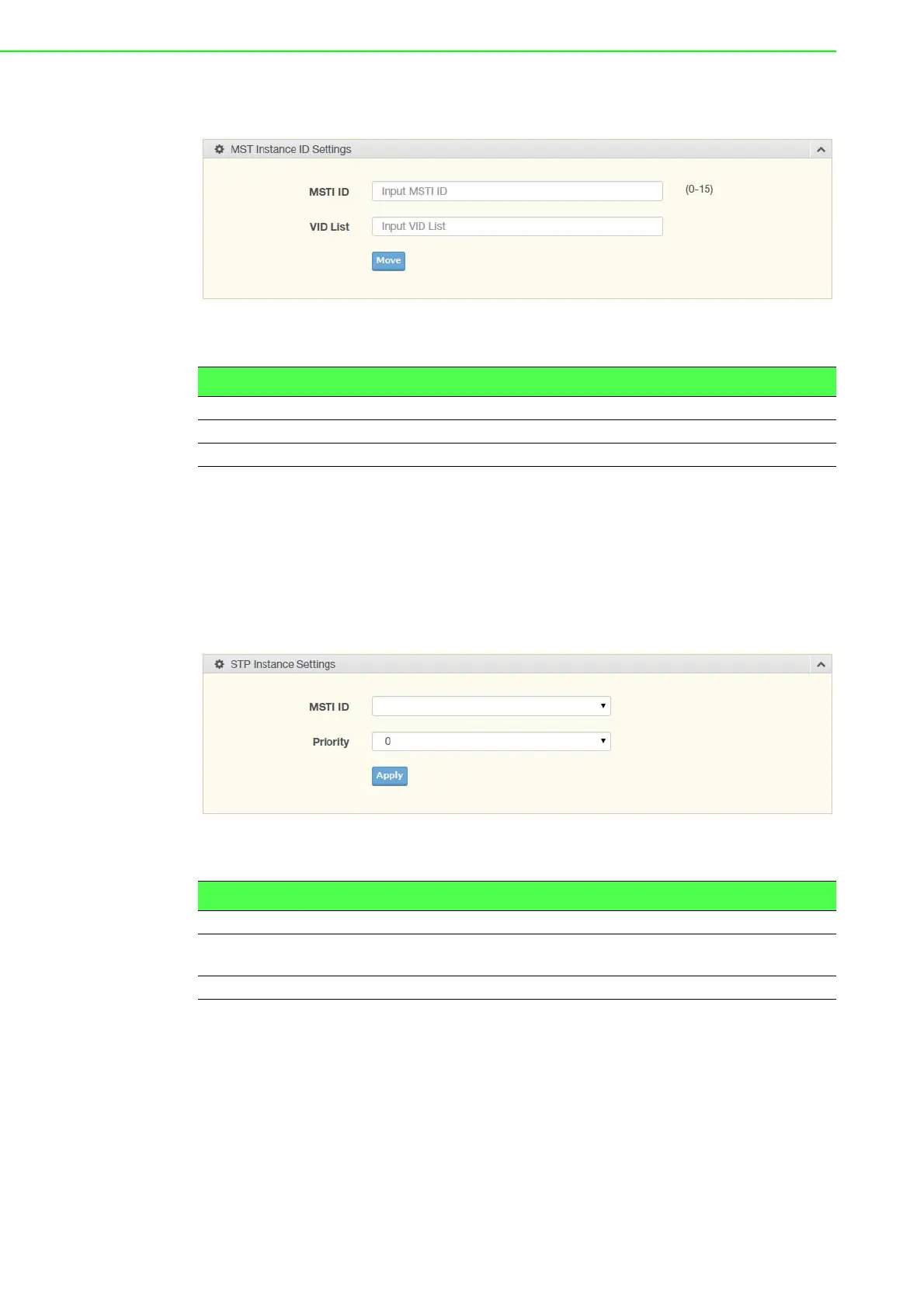

Figure 4.43 L2 Switching > Spanning Tree > MST Instance ID Settings
The following table describes the items in the previous figure.
The ensuing table for MST Instance ID Information settings are informational only:
MSTI ID and VID List.
4.5.10.7 MST Instance Priority Settings
The MST Instance Priority Settings allows you to specify the MST instance and the
bridge priority in that instance.
To access this page, click L2 Switching > Spanning Tree > MST Instance Priority
Settings.
Figure 4.44 L2 Switching > Spanning Tree > MST Instance Priority Settings
The following table describes the items in the previous figure.
The ensuing table for MST Instance Priority Information settings are informational
only: MSTI ID, Priority and Action.
4.5.10.8 MST Instance Info
To access this page, click L2 Switching > Spanning Tree > MST Instance Info.
The ensuing table for STP Bridge Status settings are informational only: Bridge
Identifier, Designated Root Bridge, Root Path Cost, Designated Bridge, Root Port
and TCNLast Topology Change.
The ensuing table for STP Port Status settings are informational only: Port, Identifier
(Priority / Port Id), Path Cost Conf/Oper, Designated Root Bridge, Root Path Cost,
Item Description
MSTI ID Enter the MST instance ID (0-15).
VID List Enter the pre-configured VID list.
Move Click Move to save the values and update the screen.
Item Description
MSTI ID Click the drop-down menu to specify the MST instance.
Priority Click the drop-down menu set the bridge priority in the specified MST
instance
Apply Click Apply to save the values and update the screen.
