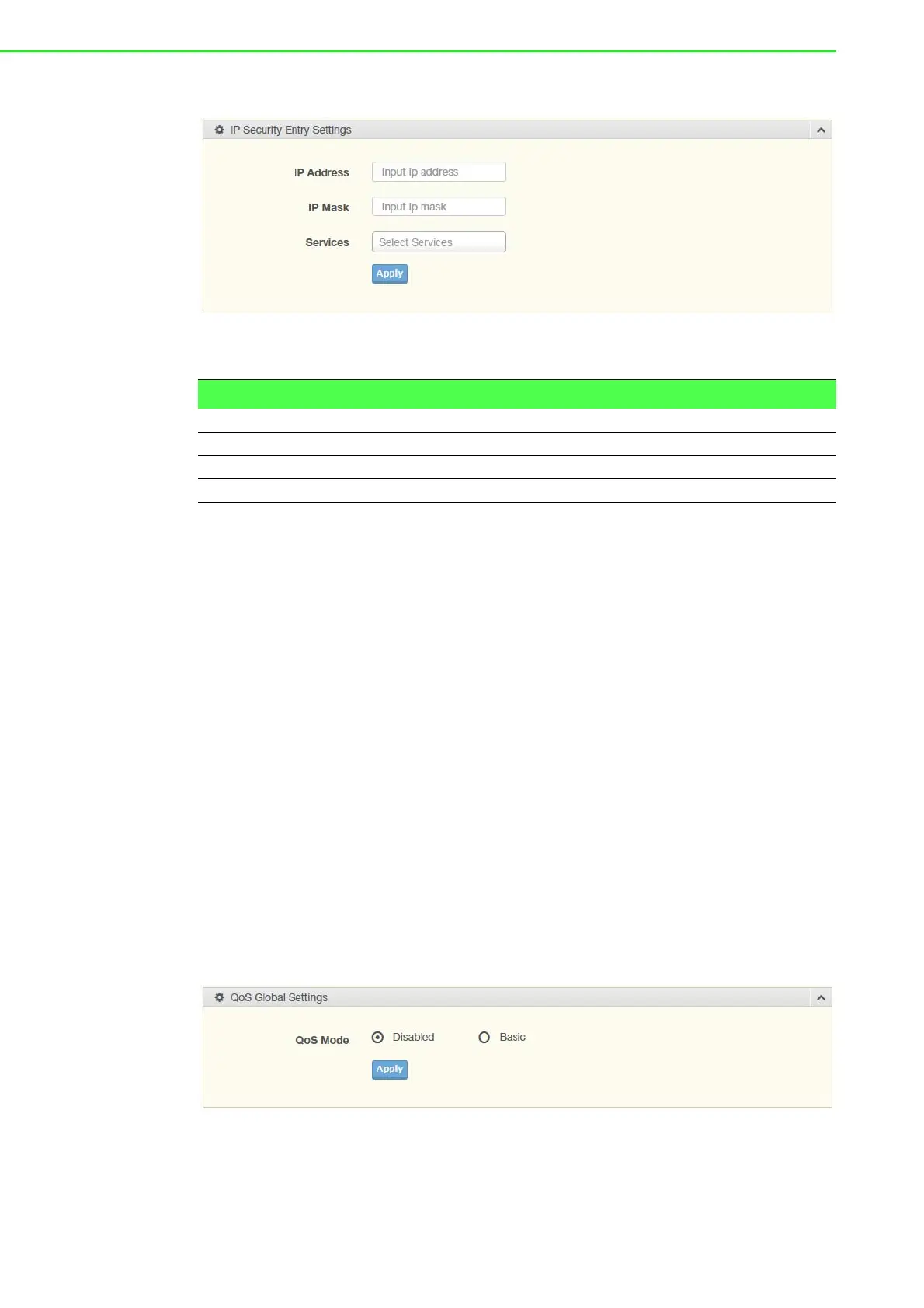

To access this page, click Security > IP Security > Entry Settings.
Figure 4.68 Security > IP Security > Entry Settings
The following table describes the items in the previous figure.
The ensuing table for IP Security Entry Information settings are informational only:
IP Address, IP Mask, Services and Action.
4.8 QoS
The QoS function allows you to configure settings for the switch QoS interface and
how the switch connects to a remote server to get services.
4.8.1 General
Traditionally, networks operate on a best-effort delivery basis, all traffic has equal pri-
ority and an equal chance of being delivered in a timely manner. When there is con-
gestion, all traffic has an equal chance of being dropped.
The QoS feature can be configured for congestion-management and congestion-
avoidance to specifically manage the priority of the traffic delivery. Implementing QoS
in the network makes performance predictable and bandwidth utilization much more
effective.
The QoS implementation is based on the prioritization values in Layer 2 frames.
4.8.1.1 QoS Properties
The QoS Properties allows you to set the QoS mode.
To access this page, click QoS > General > QoS Properties.
Figure 4.69 QoS > General > QoS Properties
Item Description
IP Address Enter the source IP address to apply the IP Security function.
IP Mask Enter the IP address for use in masking the previous IP Address.
Services Enter the type of services to associate with the entry setting.
Apply Click Apply to save the values and update the screen.
To Next Page
