72 EKI-7710 Series User Manual
4.7.1.1 Global Settings
To access this page, click Security > Storm Control > Global Settings.

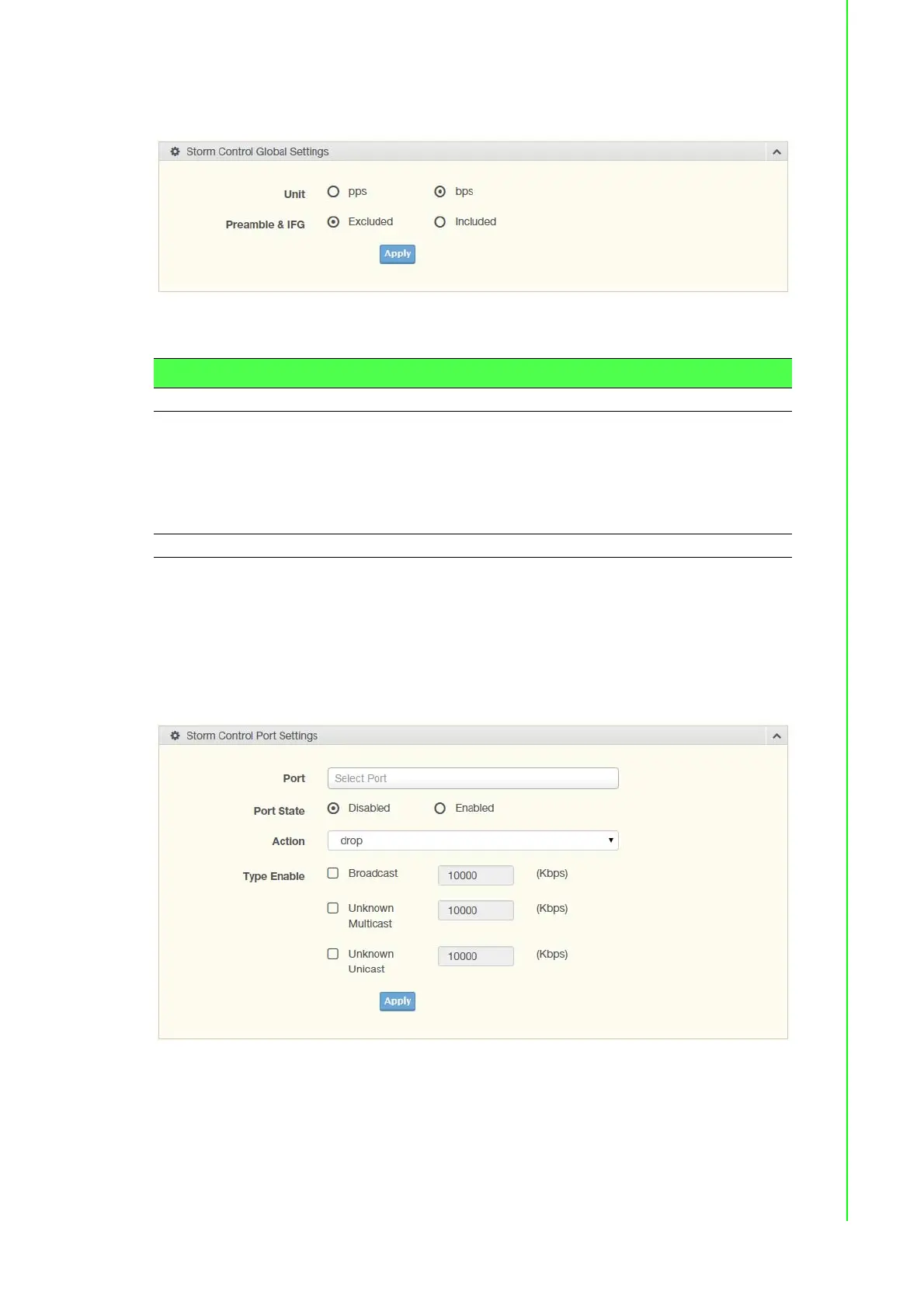

Figure 4.55 Security > Storm Control > Global Settings
The following table describes the items in the previous figure.
The ensuing table for Storm Control Global Information settings are informational
only: Unit and Preamble & IFG.
4.7.1.2 Port Settings
The Port Settings page allows you to configure the port and the type of storm control
association along with the value of the storm rate for the selected port.
To access this page, click Security > Storm Control > Port Settings.
Figure 4.56 Security > Storm Control > Port Settings
Item Description
Unit Select pps or bps control units for the Storm Control function.
Preamble & IFG Select Excluded or Included to setup the Storm Control Global set-
tings.
 Excluded: exclude preamble & IFG (20 bytes) when count
ingress storm control rate.
 Included: include preamble & IFG (20 bytes) when count ingress
storm control rate.
Apply Click Apply to save the values and update the screen.
