To access this page, click MAC Address Table > Static MAC.

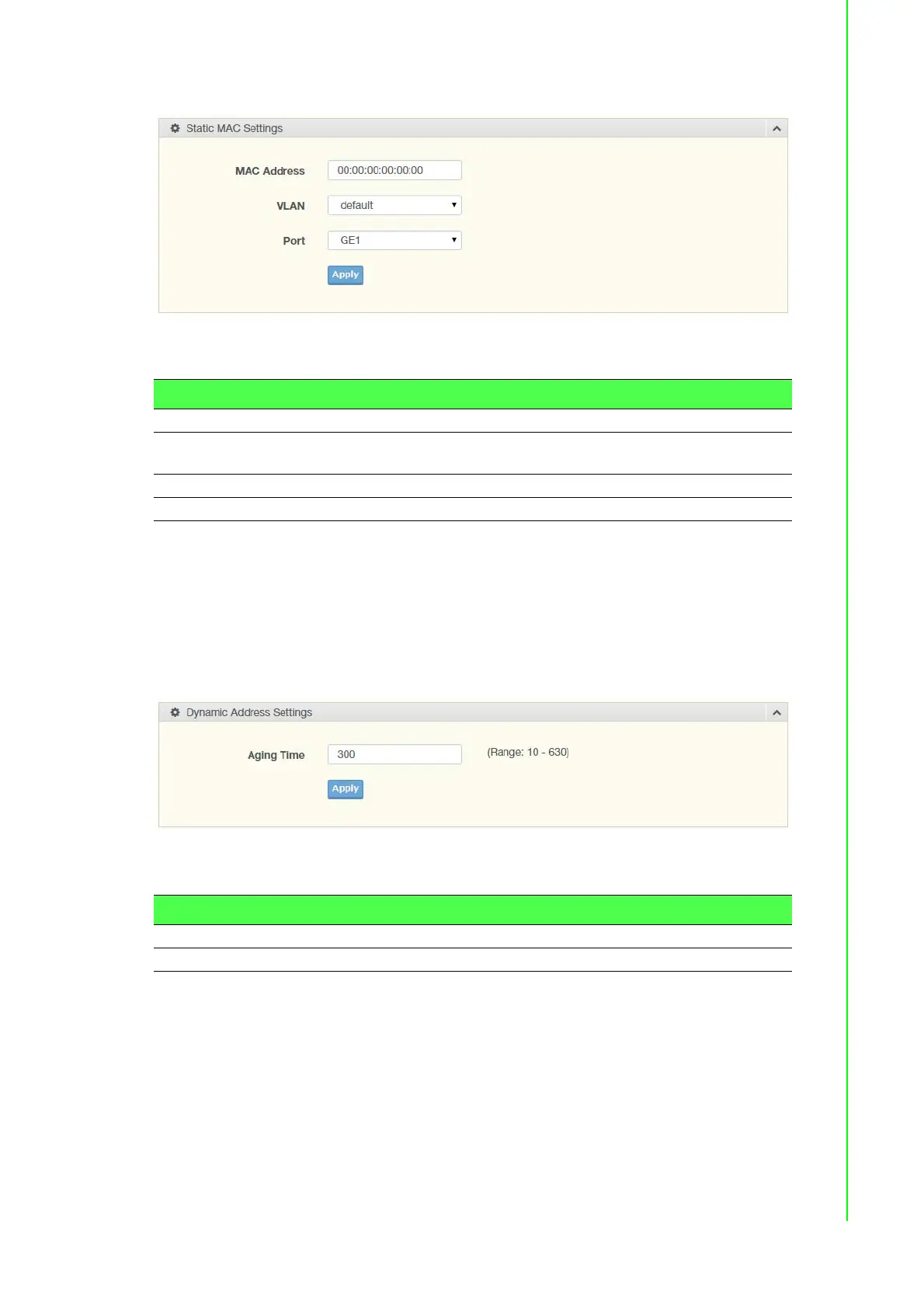

Figure 4.52 MAC Address Table > Static MAC
The following table describes the items in the previous figure.
The ensuing table for Static MAC Status settings are informational only: No., MAC
Address, VLAN, Port and Delete (click to delete the desired MAC address).
4.6.2 MAC Aging Time
The MAC Aging Time page allows you to set the MAC address of the aging time to
study.
To access this page, click MAC Address Table > MAC Aging Time.
Figure 4.53 MAC Address Table > MAC Aging Time
The following table describes the items in the previous figure.
The ensuing table for Dynamic Address Status settings are informational only:
Aging time.
Item Description
MAC Address Enter the MAC address to which packets are statically forwarded.
VLAN Click the drop-down menu to select the VLAN ID number of the VLAN
for which the MAC address is residing.
Port Click the drop-down menu to select the port number.
Apply Click Apply to save the values and update the screen.
Item Description
Aging Time Enter the variable (10 to 630) to define the time required for aging.
Apply Click Apply to save the values and update the screen.
