The ensuing table for Logging Information table settings are informational only: Tar-
get, Severity and Category.
The ensuing table for Logging Message table settings are informational only: No.,
Time Stamp, Category, Severity and Message.
4.3.3 Port Monitoring
Port Network Monitor is a bandwidth and network monitoring tool for the purpose of
capturing network traffic and measuring of network throughput. The monitoring func-
tionality includes listing of port statistics as well as port utilization.
4.3.3.1 Port Statistics
To access this page, click Monitoring > Port Monitoring > Port Statistics.

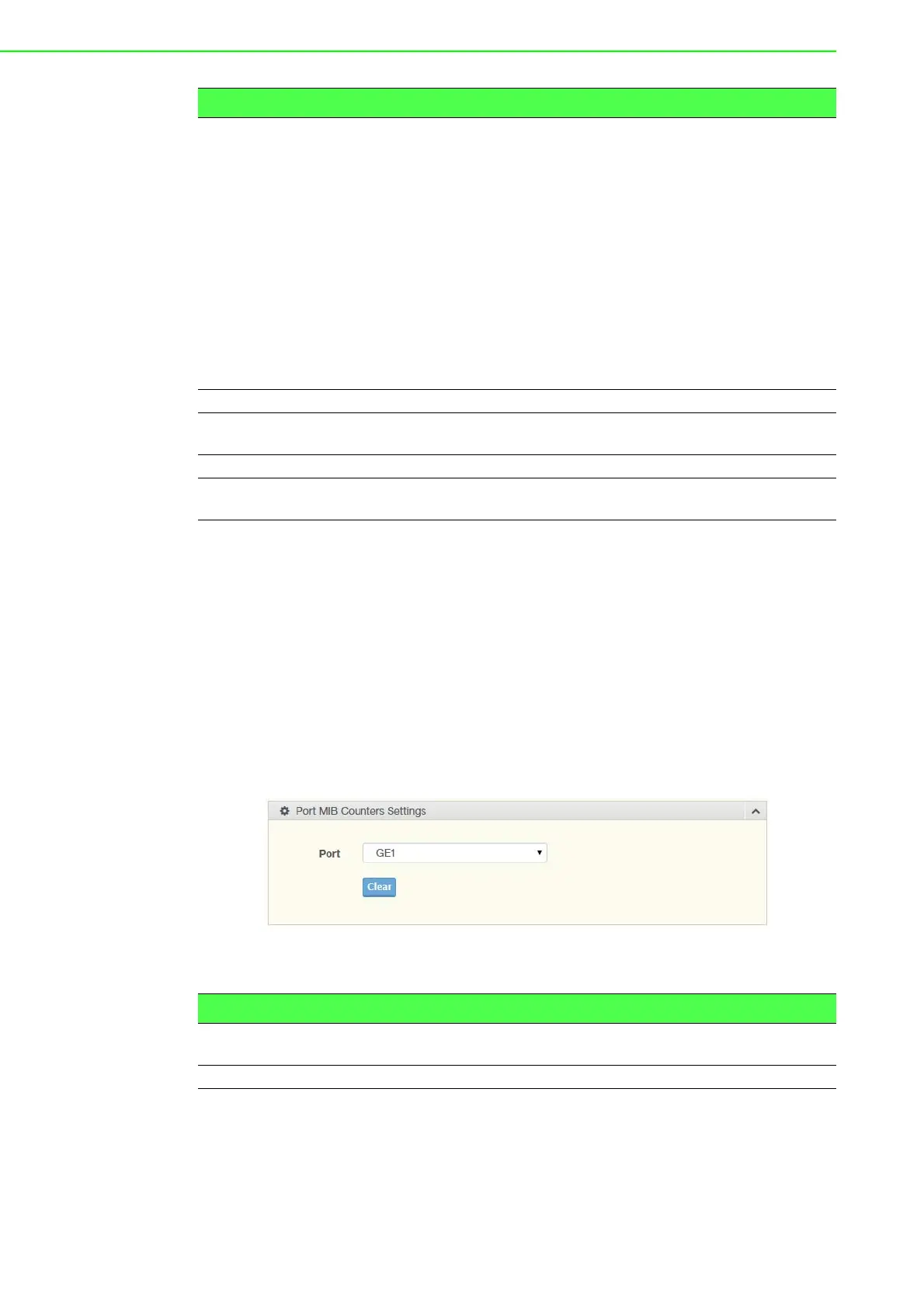

Figure 4.5 Monitoring > Port Monitoring > Port Statistics
The following table describes the items in the previous figure.
The ensuing table for IF MIB Counters settings are informational only: ifInOctets, ifI-
nUcastPkts, ifInNUcastPkts, ifInDiscards, ifOutOctets, ifOutUcastPkts, ifOutNUcast-
Pkts, ifOutDiscards, ifInMulticastPkts, ifInBroadcastPkts, ifOutMulticastPkts and
ifOutBroadcastPkts.
Severity The setting allows you to designate a severity level for the Logging
Message Filter function.
Click the drop-down menu to select the severity level target setting.
The level options are:
 emerg: Indicates system is unusable. It is the highest level of
severity.
 alert: Indicates action must be taken immediately.
 crit: Indicates critical conditions.
 error: Indicates error conditions.
 warning: Indicates warning conditions.
 notice: Indicates normal but significant conditions.
 info: Indicates informational messages.
 debug: Indicates debug-level messages.
Category Click the drop-down menu to select the category level target setting.
View Click View to display all Logging Information and Logging Message
information.
Refresh Click Refresh to update the screen.
Clear buffered mes-
sages
Click Clear buffered messages to clear the logging buffer history list.
Item Description
Item Description
Port Click the drop-down menu to select a port and its captured statistical
setting values.
Clear Click Clear to clear the counter selections.
