periods of high priority traffic. The WRR scheduler sends some packets from each
queue in turn.
To access this page, click QoS > General > QoS Scheduling.

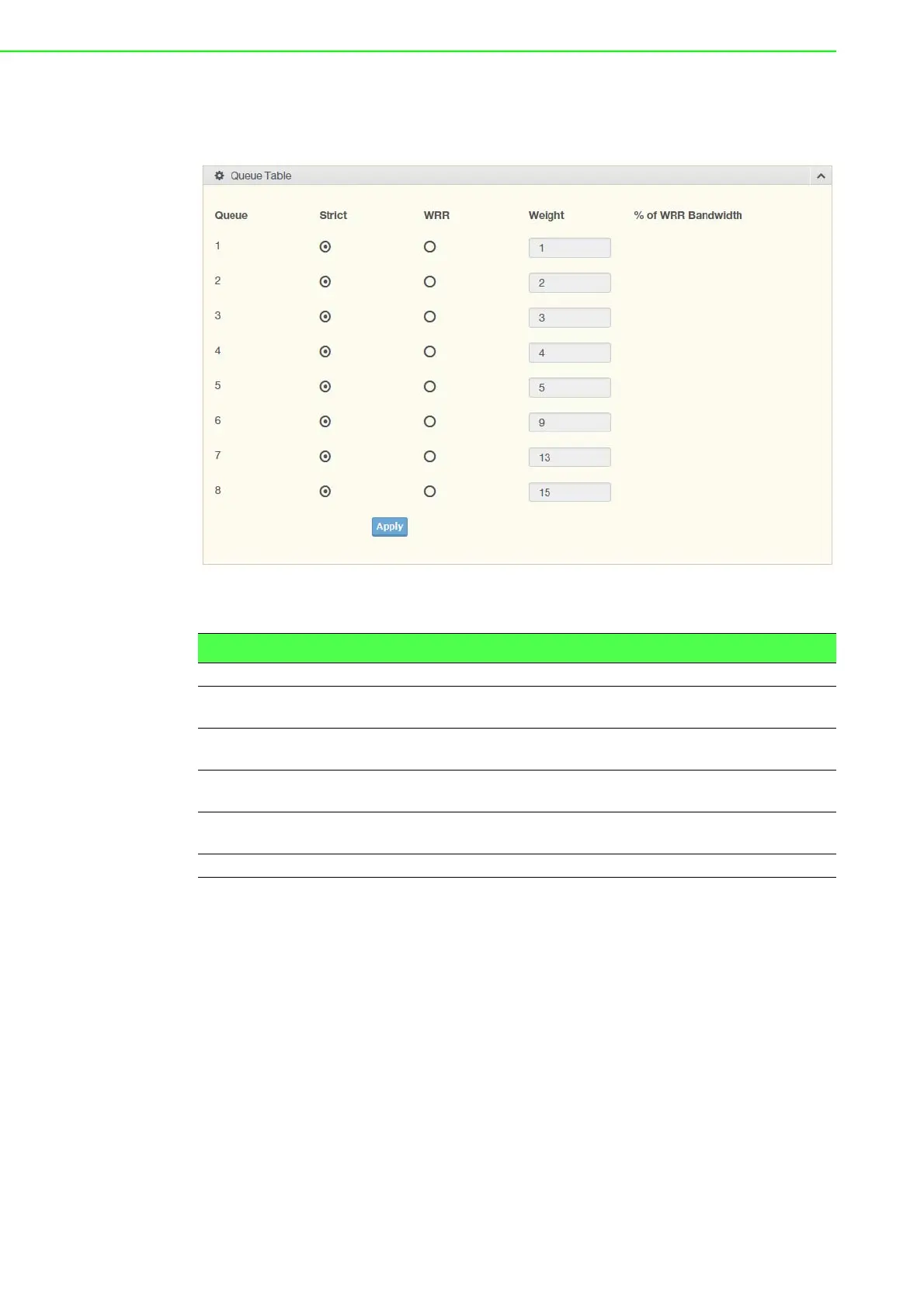

Figure 4.71 QoS > General > QoS Scheduling
The following table describes the items in the previous figure.
The ensuing table for Queue Information settings are informational only: Strict Prior-
ity Queue Number.
4.8.1.4 CoS Mapping
The CoS Mapping allows you to apply CoS mapping.
Item Description
Queue Queue entry for egress port.
Strict Select Strict to assign the scheduling designation to the selected
queue.
WRR Select WRR to assign the scheduling designation to the selected
queue.
Weight Enter a queue priority (weight) relative to the defined entries (WRR
only).
% of WRR Bandwidth Displays the allotted bandwidth for the queue entry in percentage val-
ues.
Apply Click Apply to save the values and update the screen.
