EKI-7710 Series User Manual 49
To access this page, click L2 Switching > Link Aggregation > LACP Port Settings.

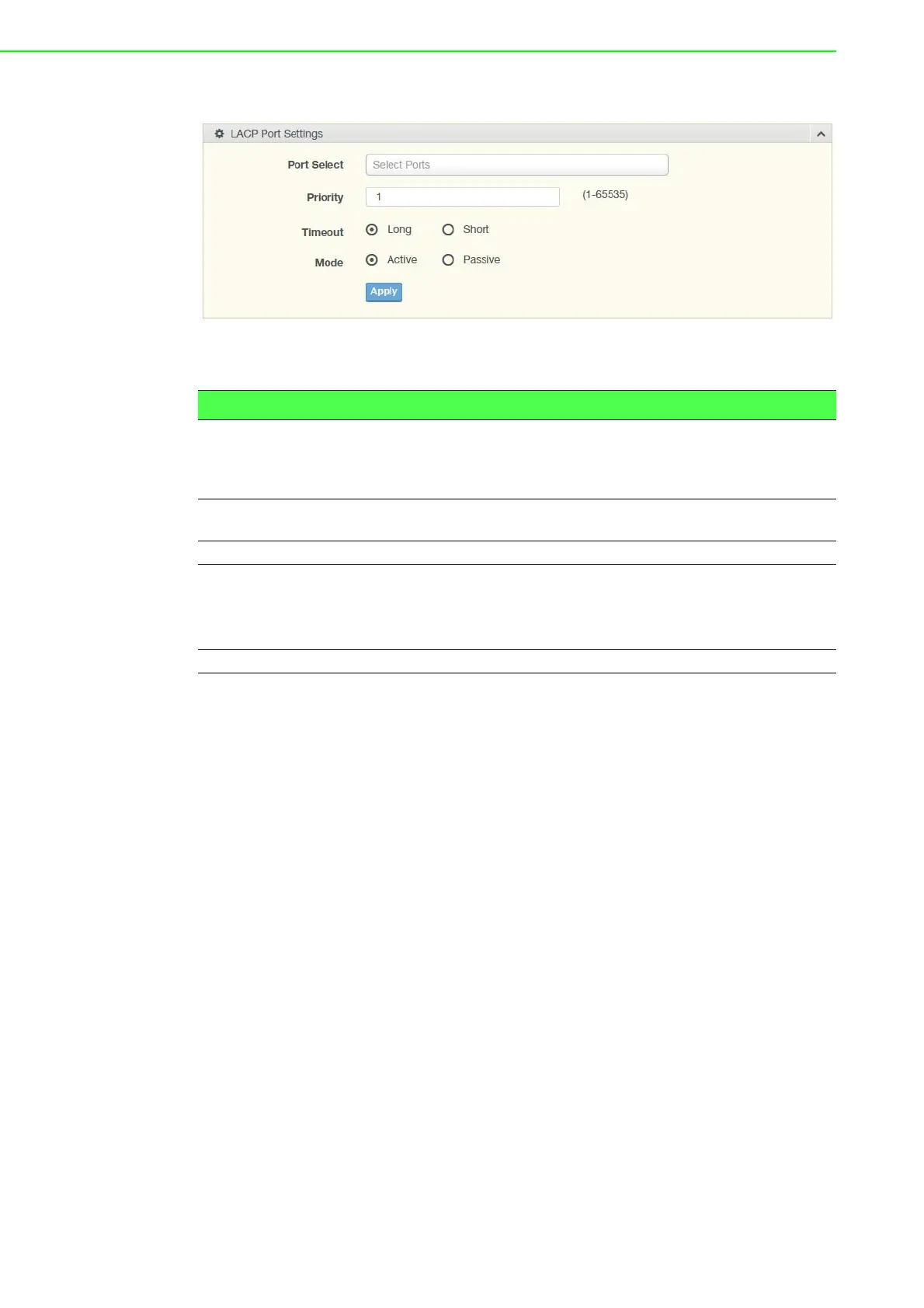

Figure 4.21 L2 Switching > Link Aggregation > LACP Port Settings
The following table describes the items in the previous figure.
The ensuing table for LACP Port Information settings are informational only: Port
Name, Priority, Timeout and Mode.
4.5.4 802.1Q VLAN
The 802.1Q VLAN feature allows for a single VLAN to support multiple VLANs. With
the 802.1Q feature you can preserve VLAN IDs and segregate different VLAN traffic.
The 802.1Q VLAN tag feature encapsulates the 802.1Q VLAN tagging within another
802.1Q VLAN tag. The outer tag is assigned following the AP group, while the inner
VLAN ID is assigned dynamically by the AAA server.
4.5.4.1 VLAN Management
The management of VLANs is available through the VLAN Settings page. Through
this page you can add or delete VLAN listings and add a prefix name to an added
entry.
Item Description
Port Select Select a port for the LACP Port Settings. The listed available settings
are: Port1-10.
However, the available settings are dependent on the connected
LACP device and may not be listed as displayed in the current figure.
Priority Enter a variable (1 to 65535) to assign a priority to the defined port
selection.
Timeout Click the radio button to select a long or short timeout period.
Mode Click the radio button to select the setting mode: Active or Passive.
Active: Enables LACP unconditionally.
Passive: Enables LACP only when an LACP device is detected
(default state).
Apply Click Apply to save the values and update the screen.
