To access this page, click L2 Switching > Spanning Tree > STP Port Advanced
Settings.

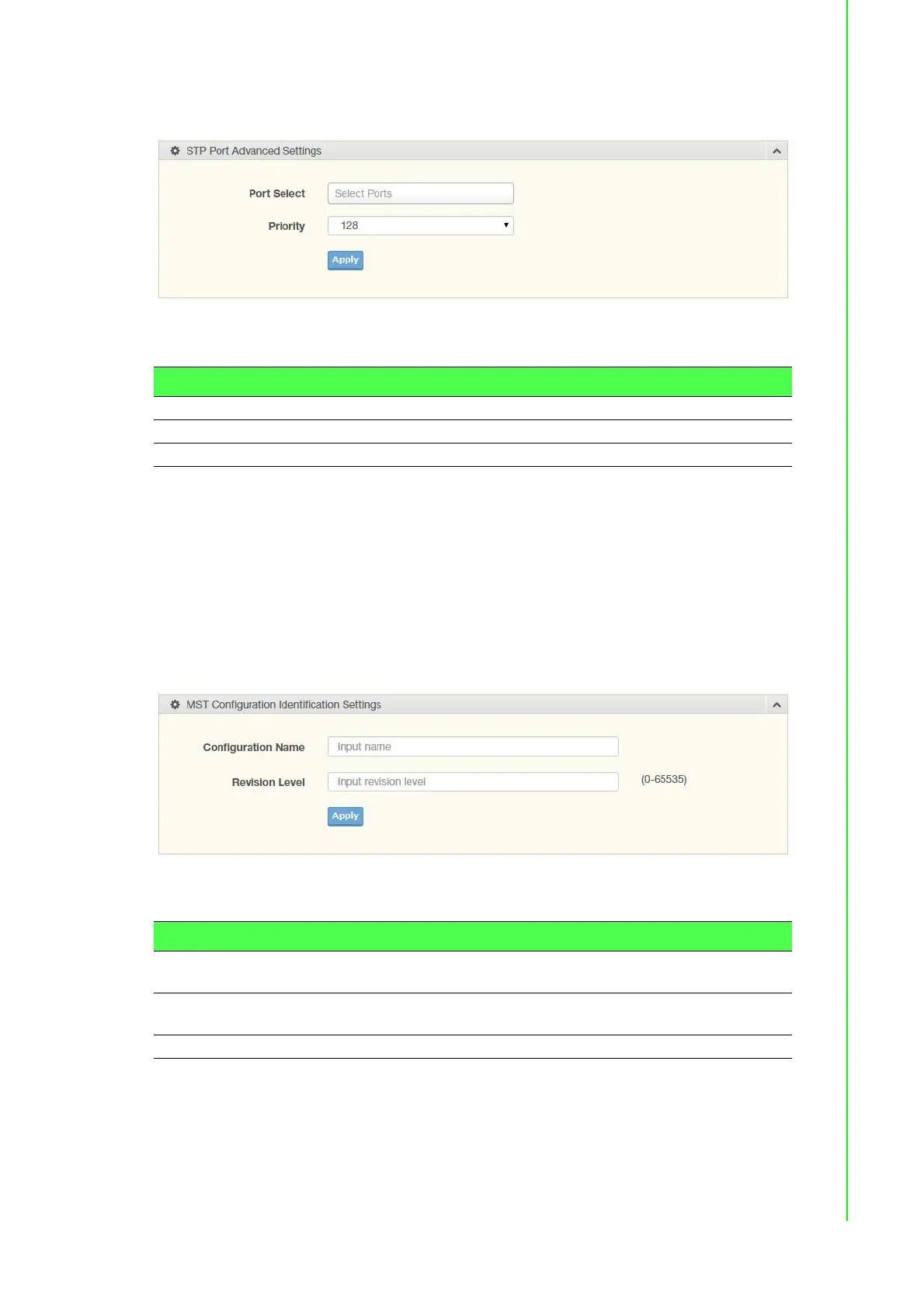

Figure 4.41 L2 Switching > Spanning Tree > STP Port Advanced Settings
The following table describes the items in the previous figure.
The ensuing table for STP Port Status settings are informational only: Port, Identifier
(Priority / Port Id), Path Cost Conf/Oper, Designated Root Bridge, Root Path Cost,
Designated Bridge, Edge Port Conf/Oper, P2P MAC Conf/Oper, Port Role and Port
State.
4.5.10.5 MST Config Identification
The MST Config Identification page allows you to configure the identification setting
name and the identification range.
To access this page, click L2 Switching > Spanning Tree > MST Config Identifica-
tion.
Figure 4.42 L2 Switching > Spanning Tree > MST Config Identification
The following table describes the items in the previous figure.
The ensuing table for MST Configuration Identification Information settings are
informational only: Configuration Name and Revision Level.
4.5.10.6 MST Instance ID Settings
The MST Instance ID Settings page allows you to edit the MSTI ID and VID List set-
tings.
Item Description
Port Select Select the port to designate the STP settings.
Priority Click the drop-down menu to designate a priority.
Apply Click Apply to save the values and update the screen.
Item Description
Configuration Name Enter the identifier used to identify the configuration currently being
used. It may be up to 32 characters.
Revision Level Enter the identifier for the Revision Configuration, range: 0 to 65535
(default: 0).
Apply Click Apply to save the values and update the screen.
