To access this page, click L2 Switching > Multicast > IGMP Snooping > IGMP Set-
tings.

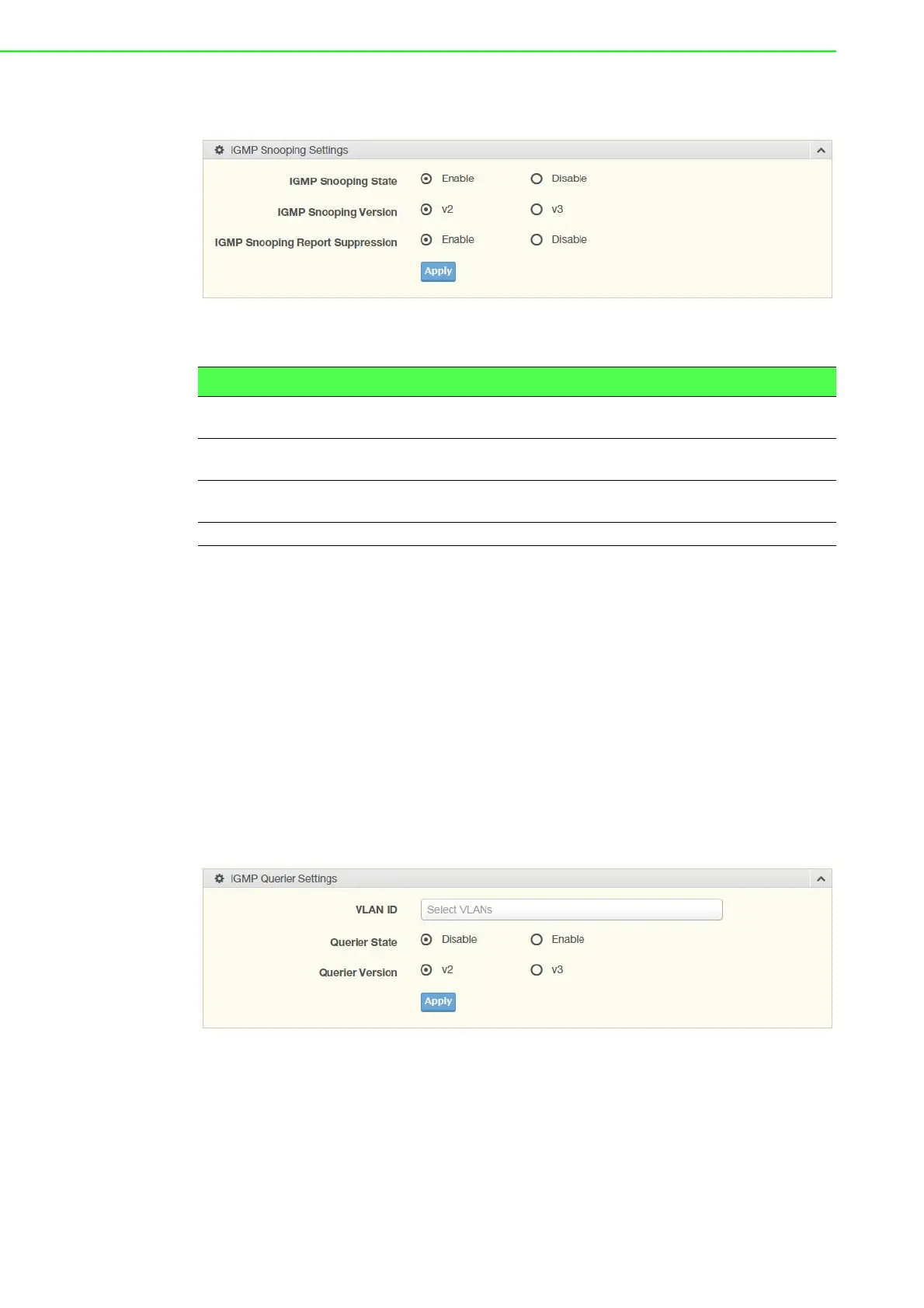

Figure 4.31 L2 Switching > Multicast > IGMP Snooping > IGMP Settings
The following table describes the items in the previous figure.
The ensuing table for IGMP Snooping Information settings are informational only:
IGMP Snooping State, IGMP Snooping Version and IGMP Snooping V2 Report Sup-
pression.
The ensuing table for IGMP Snooping Table settings are informational only: Entry
No., VLAN ID, IGMP Snooping Operation State, Router Ports Auto Learn, Query
Robustness, Query Interval (sec.), Query Max Response Interval (sec.), Last Mem-
ber Query count, Last Member Query Interval (sec), Immediate Leave and Edit (click
to modify the settings).
IGMP Querier
IGMP Querier allows snooping to function by creating the tables for snooping. Gen-
eral queries must be unconditionally forwarded by all switches involved in IGMP
snooping.
To access this page, click L2 Switching > Multicast > IGMP Snooping > IGMP
Querier.
Figure 4.32 L2 Switching > Multicast > IGMP Snooping > IGMP Querier
Item Description
IGMP Snooping
State
Select Enable or Disable to designate the IGMP Snooping State.
IGMP Snooping Ver-
sion
Select designate the IGMP Snooping Version: V2 or V3.
IGMP Snooping
Report Suppression
Select Enable or Disable to setup the report suppression for IGMP
Snooping.
Apply Click Apply to save the values and update the screen.
