To access this page, click Management > Power Over Ethernet > PoE Port Set-
tings.

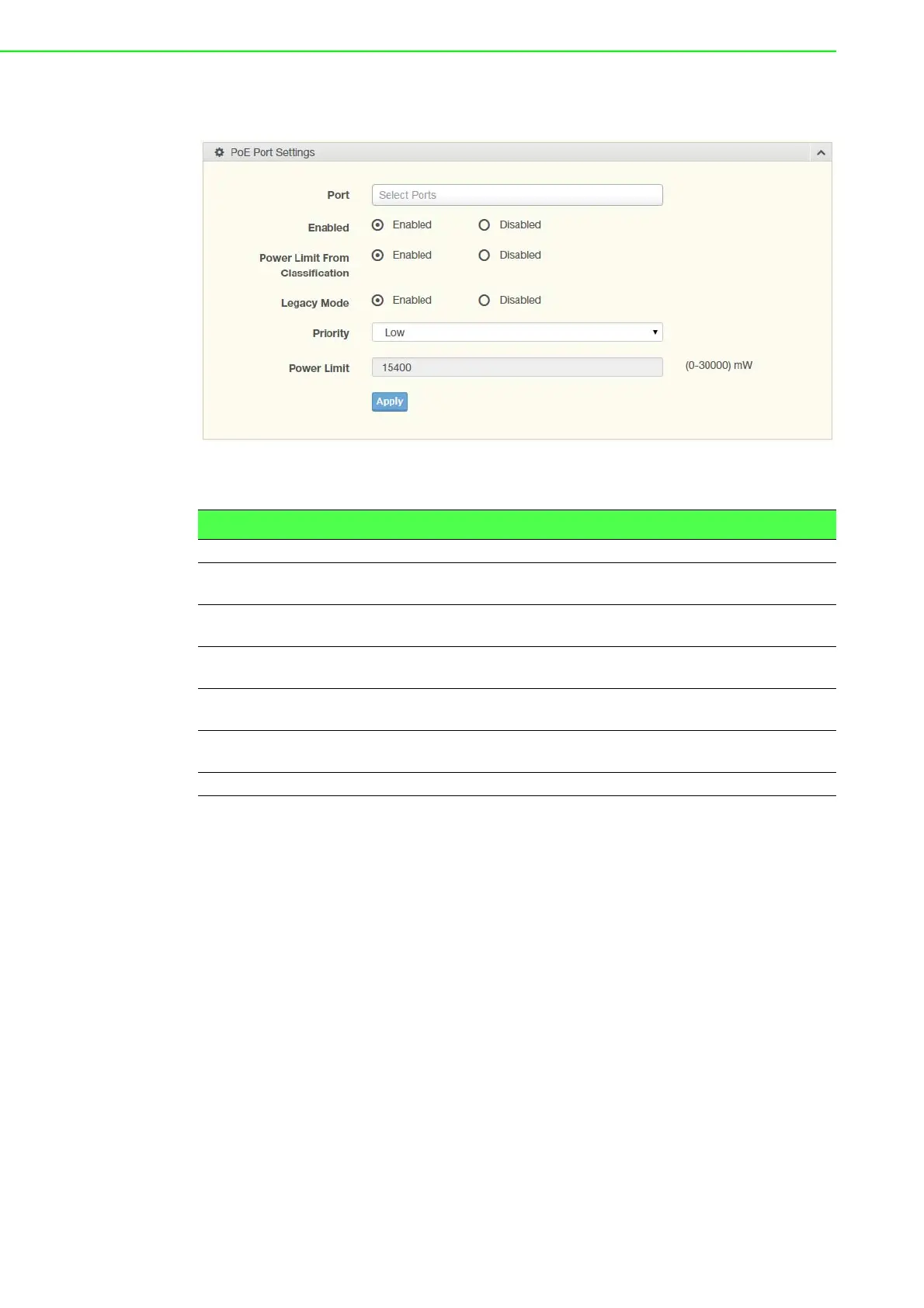

Figure 4.92 Management > Power Over Ethernet > PoE Port Settings
The following table describes the items in the previous figure.
The ensuing table for PoE Information settings are informational only: Port, Enable
State, Power Limit From Classification, Priority, Legacy and Power Limit (W).
4.9.3.3 PoE Port Status
To access this page, click Management > Power Over Ethernet > PoE Port Status.
The ensuing table for PoE Port Status settings are informational only: Port, Current
(mA), Voltage (V), Power (W) and Temp. (°C).
4.9.4 TCP Modbus
The TCP Modbus function allows for client-server communication between a switch
module (server) and a device in the networking running MODBUS client software (cli-
ent).
4.9.4.1 TCP Modbus Settings
The TCP Modbus Settings page allows you to configure the modbus function.
Item Description
Port Click the drop-down menu to select a PoE port.
Enabled Select Enabled or Disabled to designate the PoE port function by
ports.
Power Limit From
Classification
Select Enabled or Disabled to designate the power limit classifica-
tion.
Legacy Mode Select Enabled or Disabled to designate the legacy mode option for
the port.
Priority Click the drop-down menu to configure the power supply priority: Crit-
ical, Low, Medium or High. Default is Low.
Power Limit Enter a number to set the port power current limitation to be given to
the Powered Device (PD)
Apply Click Apply to save the values and update the screen.
