EKI-7710 Series User Manual 69
The following table describes the items in the previous figure.
The ensuing table for Loopback Detection Global Information settings are infor-
mational only: State, Interval and Recover Time.
4.5.13.2 Port Settings
The Port Settings page allows you to select ports that are detected by the loopback
detection function and configure their status (enabled or disabled).
To access this page, click L2 Switching > Loopback Detection > Port Settings.

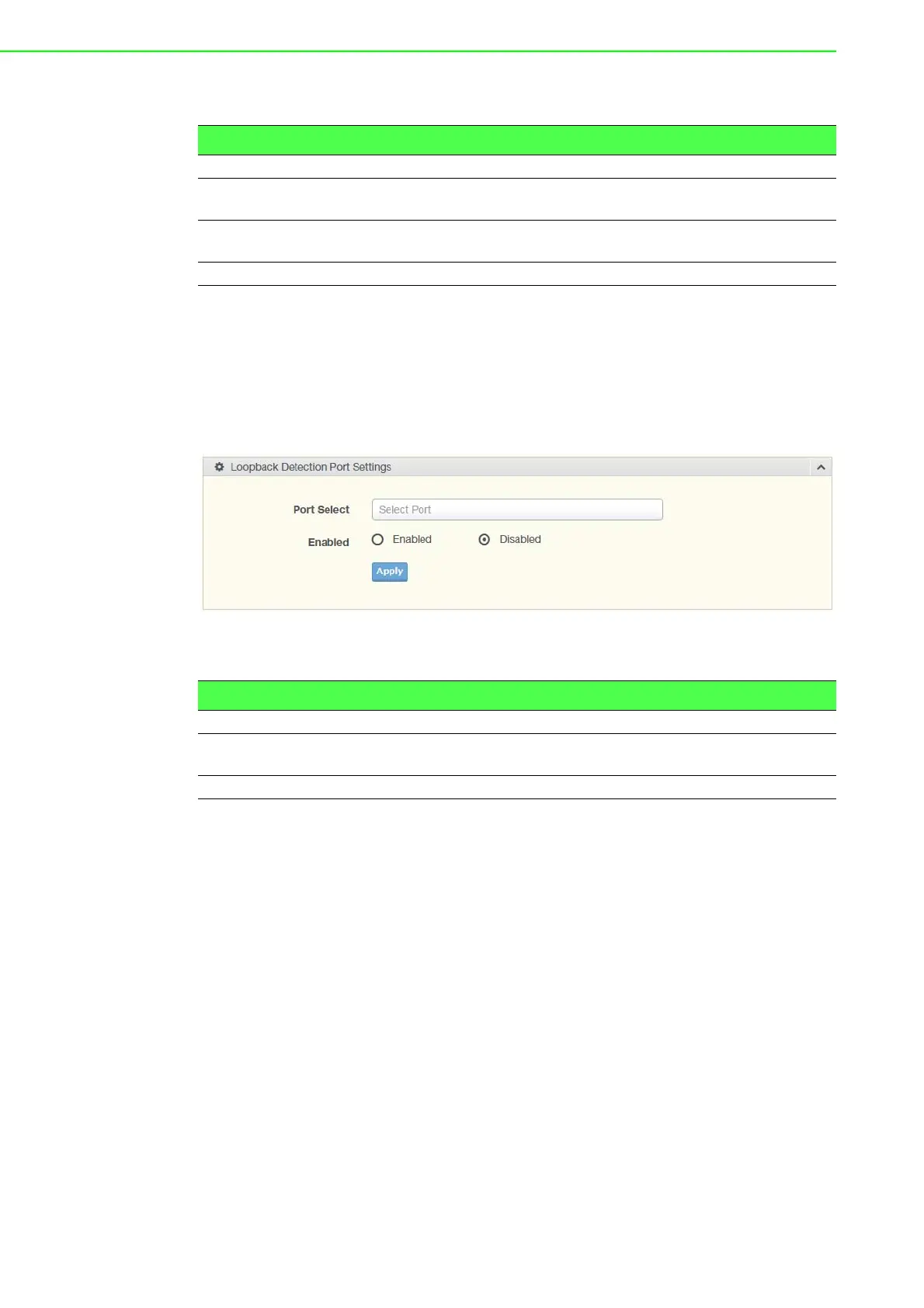

Figure 4.51 L2 Switching > Loopback Detection > Port Settings
The following table describes the items in the previous figure.
The ensuing table for Loopback Detection Port Information settings are informa-
tional only: Port, Enable State and Loop Status.
4.6 MAC Address Table
The MAC Address Table provides access to the Static MAC Settings, MAC Aging
Time, and Dynamic Forwarding.
4.6.1 Static MAC
The Static MAC page allows you to configure the address for forwarding of packets,
the VLAN ID of the listed MAC address and the designated Port.
Item Description
State Select Enabled or Disabled to setup the loopback mode.
Interval Enter the variable in seconds (1 to 32767) to set the interval at which
frames are transmitted.
Recover Time Enter the variable in seconds (60 to 1000000) to define the delay
before recovery.
Apply Click Apply to save the values and update the screen.
Item Description
Port Select Enter the port to define the local loopback detection setting.
Enabled Select Enabled or Disabled to setup the Loopback Detection func-
tion.
Apply Click Apply to save the values and update the screen.
