The following table describes the items in the previous figure.
The ensuing table for IGMP Statistics settings are informational only: Total RX, Valid
RX, Invalid RX, Other RX, Leave RX, Report RX, General Query RX, Special Group
Query RX, Special Group & Source Query RX, Leave TX, Report TX, General Query
TX, Special Group Query TX and Special Group & Source Query TX.
4.4 System
4.4.1 IP Settings
The IP Settings menu allows you to select a static or DHCP network configuration.
The Static displays the configurable settings for the static option.
To access this page, click System > IP Settings.

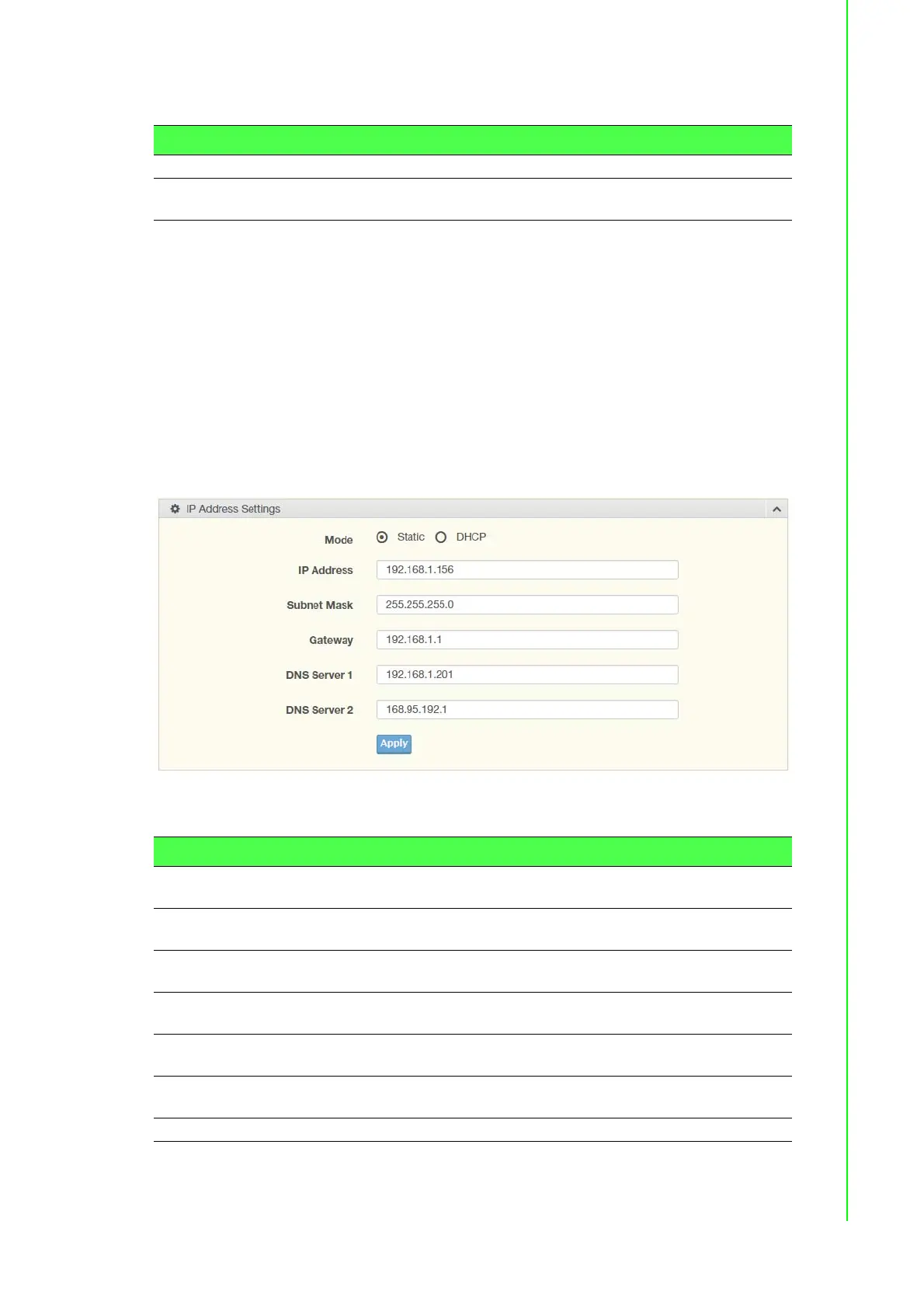

Figure 4.9 System > IP Settings
The following table describes the items in the previous figure.
The ensuing table for IP Address Information settings are informational only: DHCP
State, BOOTP State, Static IP Address, Static Subnet Mask, Static Gateway, Static
DNS Server 1 and Static DNS Server 2.
Item Description
Clear Click Clear to refresh IGMP Statistics of all the interfaces.
Refresh Click Refresh to update the data on the screen with the present state
of the data in the switch.
Item Description
Mode Click the radio button to select the IP Address Setting mode:
Static, DHCP, or BOOTP.
IP Address Enter a value to specify the IP address of the interface. The default is
192.168.1.1.
Subnet Mask Enter a value to specify the IP subnet mask for the interface. The
default is 255.255.255.0.
Gateway Enter a value to specify the default gateway for the interface. The
default is 192.168.1.254.
DNS Server 1 Enter a value to specify the DNS server 1 for the interface. The default
is 168.95.1.1.
DNS Server 2 Enter a value to specify the DNS server 2 for the interface. The default
is 168.95.192.1.
Apply Click Apply to save the values and update the screen.
