EKI-7710 Series User Manual 45
The ensuing table for System Time Information settings are informational only: Cur-
rent Date/Time, SNTP, SNTP Server Address, SNTP Server Port, Time zone, Day-
light Saving Time, Daylight Saving Time Offset, From and To.
4.5 L2 Switching
4.5.1 Port Configuration
Port Configuration describes how to use the user interface to configure LAN ports on
the switch.
To access this page, click L2 Switching > Port Configuration.

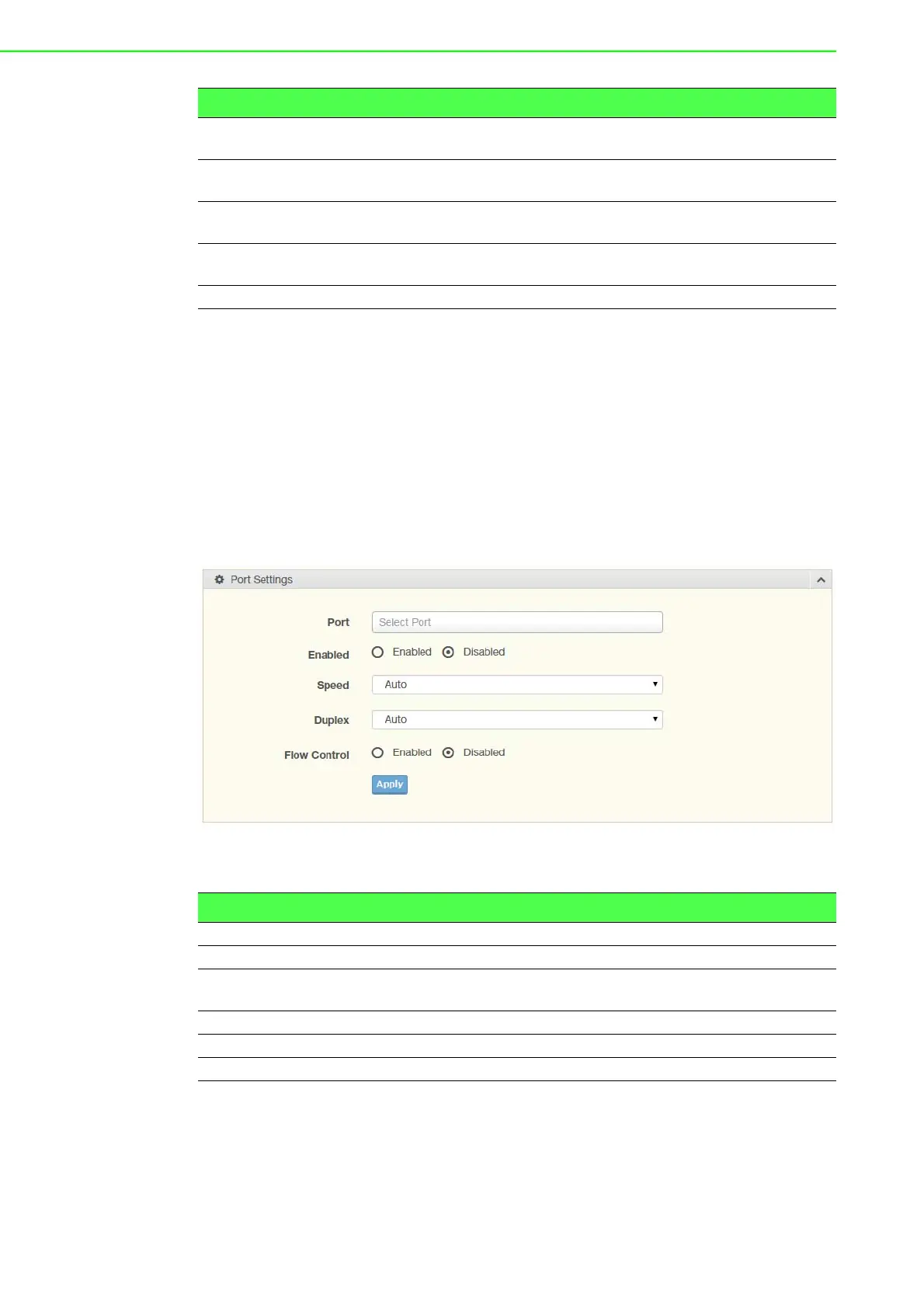

Figure 4.15 L2 Switching > Port Configuration
The following table describes the items in the previous figure.
The ensuing table for Port Status settings are informational only: Port, Edit (click to
enter description), Enable State, Link Status, Speed, Duplex, FlowCtrl Config and
FlowCtrl Status.
Recurring From Click the drop-down menu to designate the start date and time for
daylight saving time.
Recurring To Click the drop-down menu to designate the end date and time for day-
light saving time.
Non-Recurring From Click the drop-down menu to designate a start date and time for a
non-recurring daylight saving time event.
Non-Recurring To Click the drop-down menu to designate the end date and time for a
non-recurring daylight saving time event.
Apply Click Apply to save the values and update the screen.
Item Description
Item Description
Port Click the drop-down menu to select the port for the L2 Switch setting.
Enabled Click the radio-button to enable or disable the Port Setting function.
Speed Click the drop-down menu to select the port speed: Auto, Auto-10M,
Auto-100M, Auto-1000M, Auto-10/100M, 10M, 100M, or 1000M.
Duplex Click the drop-down menu to select the duplex setting: Half or Full.
Flow Control Click the radio button to enable or disable the flow control function.
Apply Click Apply to save the values and update the screen.
