86 EKI-7710 Series User Manual
To access this page, click QoS > General > IP Precedence Mapping.

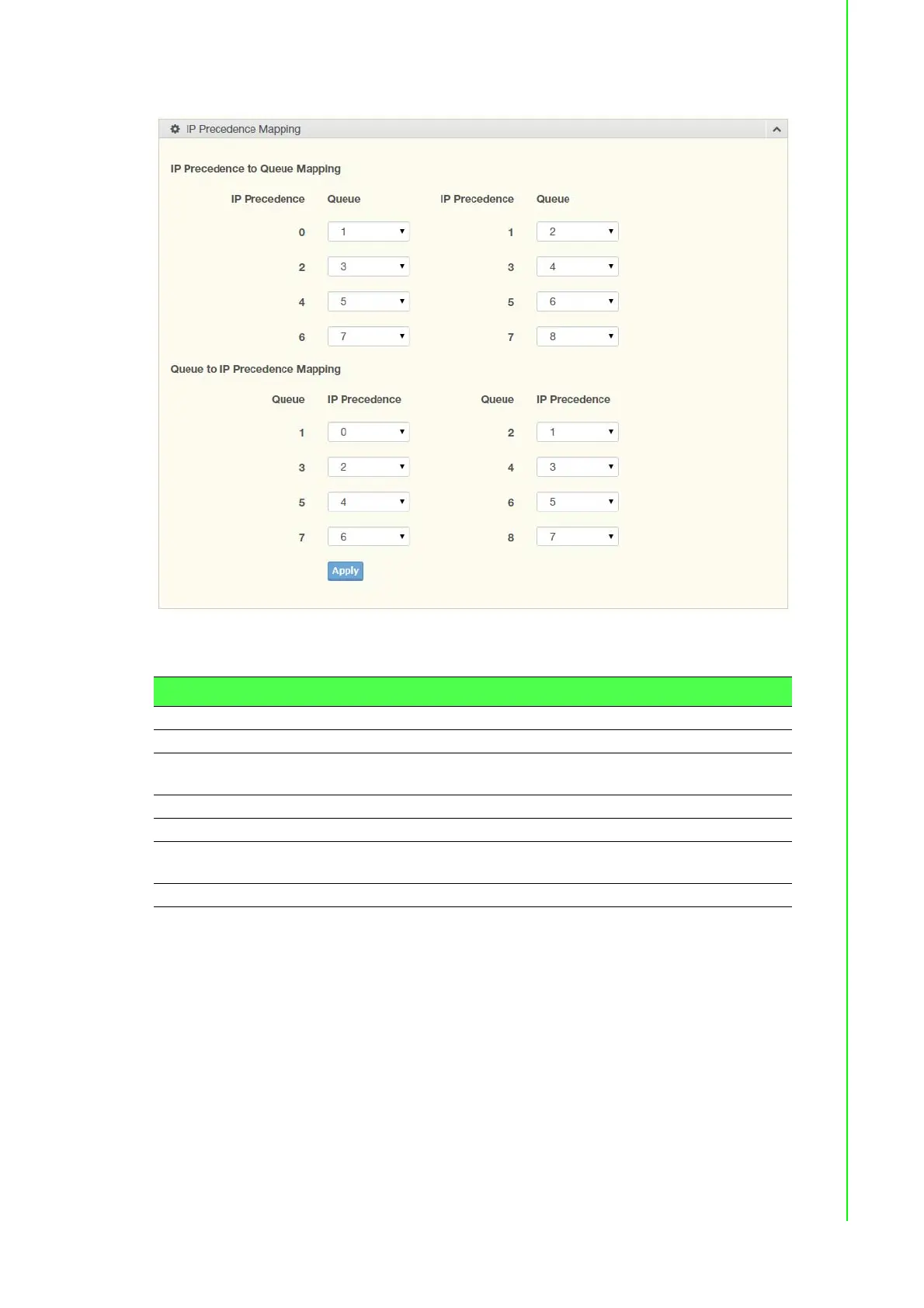

Figure 4.74 QoS > General > IP Precedence Mapping
The following table describes the items in the previous figure.
The ensuing table for IP Precedence Mapping Information settings are informa-
tional only: IP Precedence and Mapping to Queue.
The ensuing table for Queue Mapping Information settings are informational only:
Queue and Mapping to IP Precedence.
4.8.2 QoS Basic Mode
Quality of Service (QoS) allows to give preferential treatment to certain types of traffic
at the expense of others. Without QoS, the switch offers best-effort service to each
packet, regardless of the packet contents or size sending the packets without any
assurance of reliability, delay bounds, or throughput.
QoS mode supports two modes: 802.1p and DSCP.
4.8.2.1 Global Settings
The Global Settings page allows you to configure the trust mode to a port selection.
Item Description
IP Precedence to Queue Mapping
IP Precedence Displays the IP precedence value for the queue map.
Queue Click the drop-down menu to map a queue value to the selected IP
precedence.
Queue to IP Precedence Mapping
Queue Displays the queue entry for mapping IP precedence values.
IP Precedence Click the drop-down menu to map an IP precedence value to the
selected queue.
Apply Click Apply to save the values and update the screen.
