68 EKI-7710 Series User Manual
The following table describes the items in the previous figure.

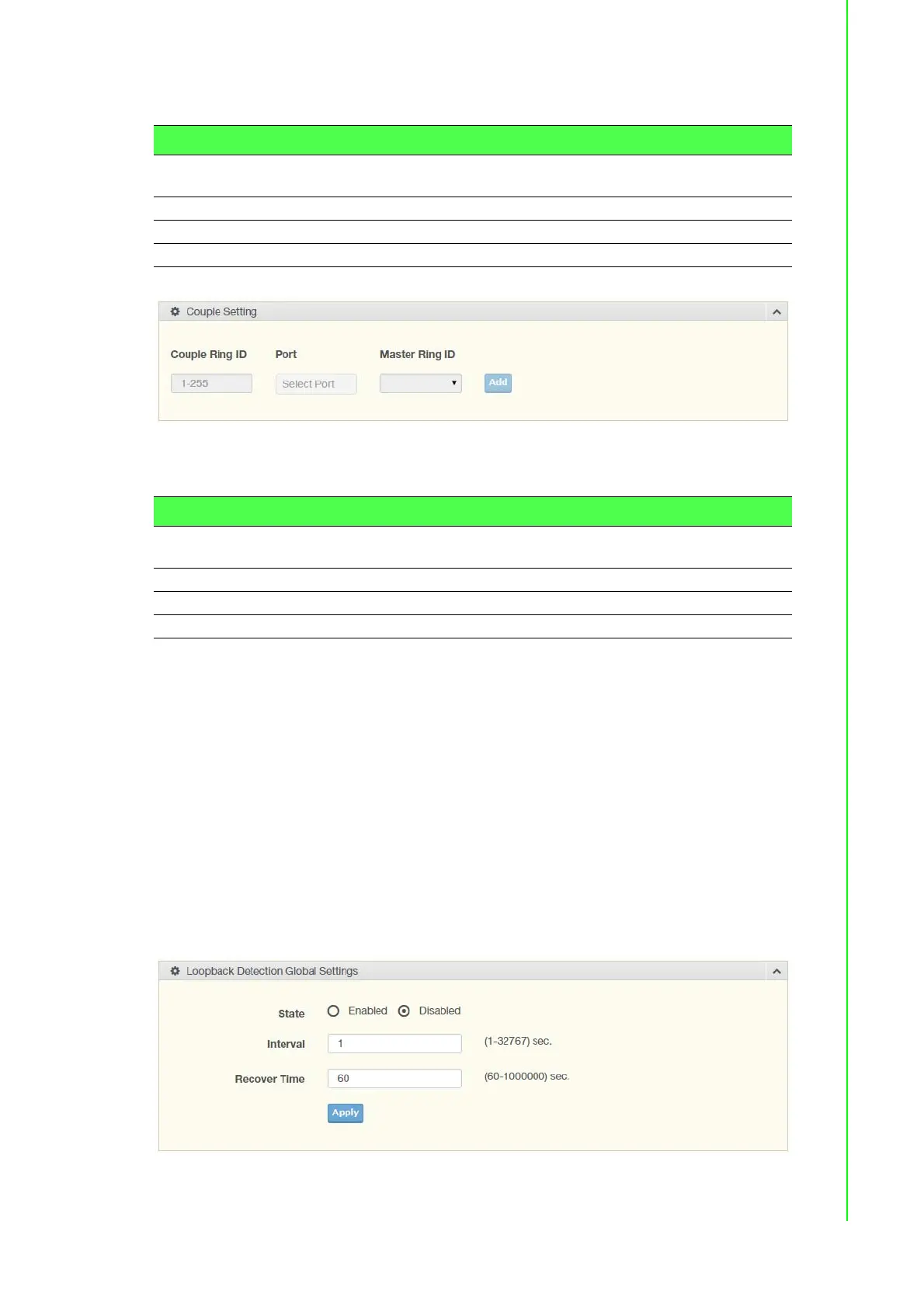

Figure 4.49 L2 Switching > X-Ring Pro > X-Ring Pro Groups > Couple Setting
The following table describes the items in the previous figure.
The ensuing table for Information settings are informational only: Ring ID, Mode,
Operation State, Port 1, Forwarding State, Port 2, Forwarding State and Delete (click
to delete the desired Ring ID).
4.5.13 Loopback Detection
The Loopback Detection function is used to detect looped links. By sending detection
frames and then checking to see if the frames returned to any port on the device, the
function is used to detect loops.
4.5.13.1 Global Settings
The Global Settings page allows you to configure the state (enabled or disabled) of
the function, select the interval at which frames are transmitted and the delay before
recovery.
To access this page, click L2 Switching > Loopback Detection > Global Settings.
Figure 4.50 L2 Switching > Loopback Detection > Global Settings
Item Description
Ring ID Enter a number to specifies a ranging from 1 to 255 to identify a given
X-Ring Pro group.
Port 1 Click the drop-down menu to define the port designation.
Port 2 Click the drop-down menu to define the port designation.
Add Click Add to save the values and update the screen.
Item Description
Couple Ring ID Enter a number to specifies a ranging from 1 to 255 to identify a given
X-Ring group.
Port Enter the port to assign to define the couple setting.
Master Ring ID Click the drop-down menu to designate the master ring.
Add Click Add to save the values and update the screen.
