To access this page, click QoS > Rate Limit > Ingress Bandwidth Control.

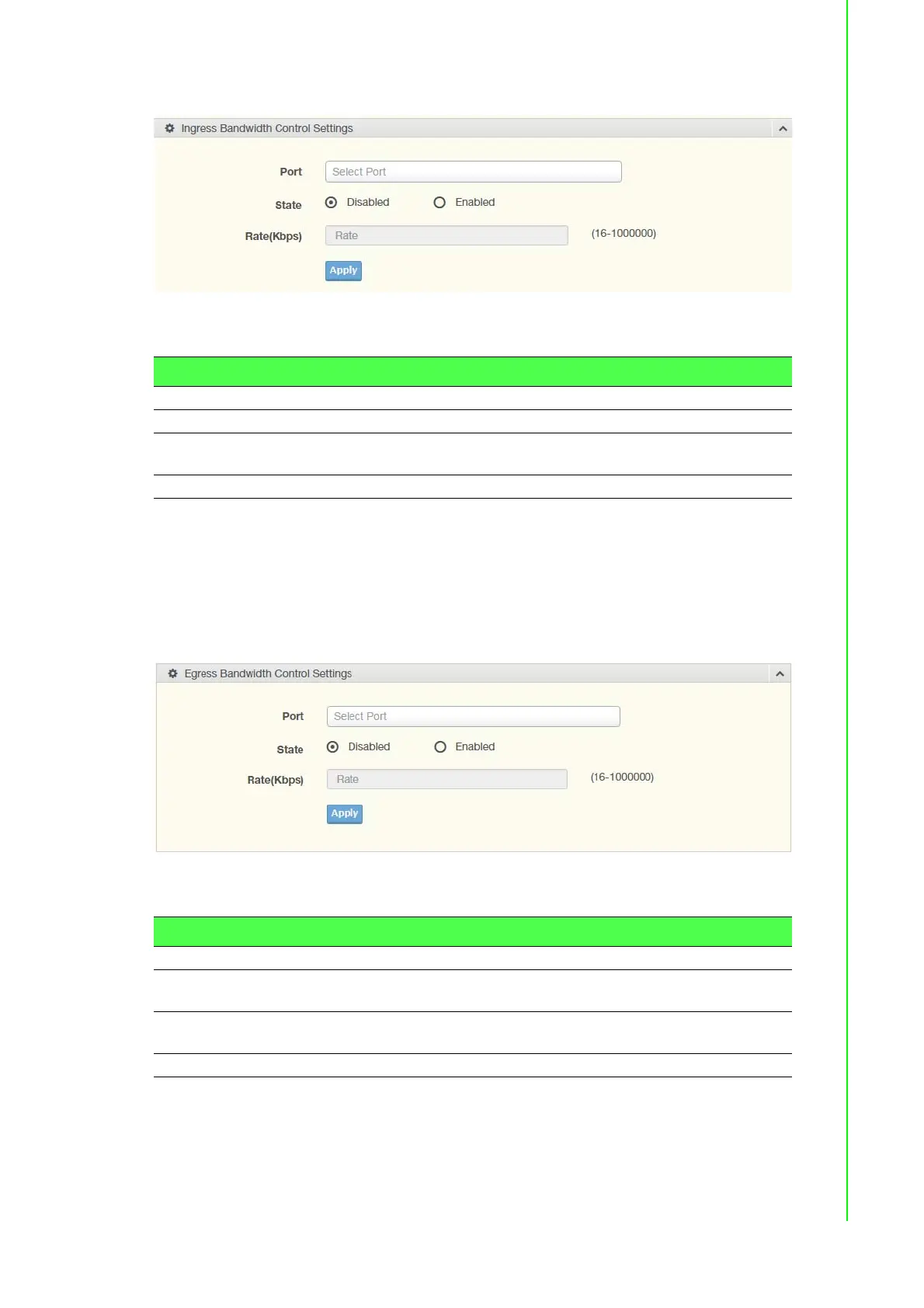

Figure 4.77 QoS > Rate Limit > Ingress Bandwidth Control
The following table describes the items in the previous figure.
The ensuing table for Ingress Bandwidth Control Status settings are informational
only: Port and Ingress Rate Limit (Kbps).
4.8.3.2 Egress Bandwidth Control
The Egress Bandwidth Control page allows you to set the egress bandwidth control
for a listed port.
To access this page, click QoS > Rate Limit > Egress Bandwidth Control.
Figure 4.78 QoS > Rate Limit > Egress Bandwidth Control
The following table describes the items in the previous figure.
The ensuing table for Egress Bandwidth Control Status settings are informational
only: Port and Egress Rate Limit (Kbps).
4.8.3.3 Egress Queue
The Egress Queue page allows you to set the egress bandwidth parameters.
Item Description
Port Enter the port number for the rate limit setup.
State Select Disabled or Enabled to set the port’s state status.
Rate (Kbps) Enter the value in Kbps (16 to 1000000) to set as the bandwidth rate
for the selected port.
Apply Click Apply to save the values and update the screen.
Item Description
Port Enter the port number to set the Egress Bandwidth Control.
State Select Disabled or Enabled to set the Egress Bandwidth Control
state.
Rate (Kbps) Enter the value in Kbps (16 to 1000000) to set the Egress Bandwidth
rate.
Apply Click Apply to save the values and update the screen.
