To access this page, click Management > TCP Modbus > TCP Modbus Settings.

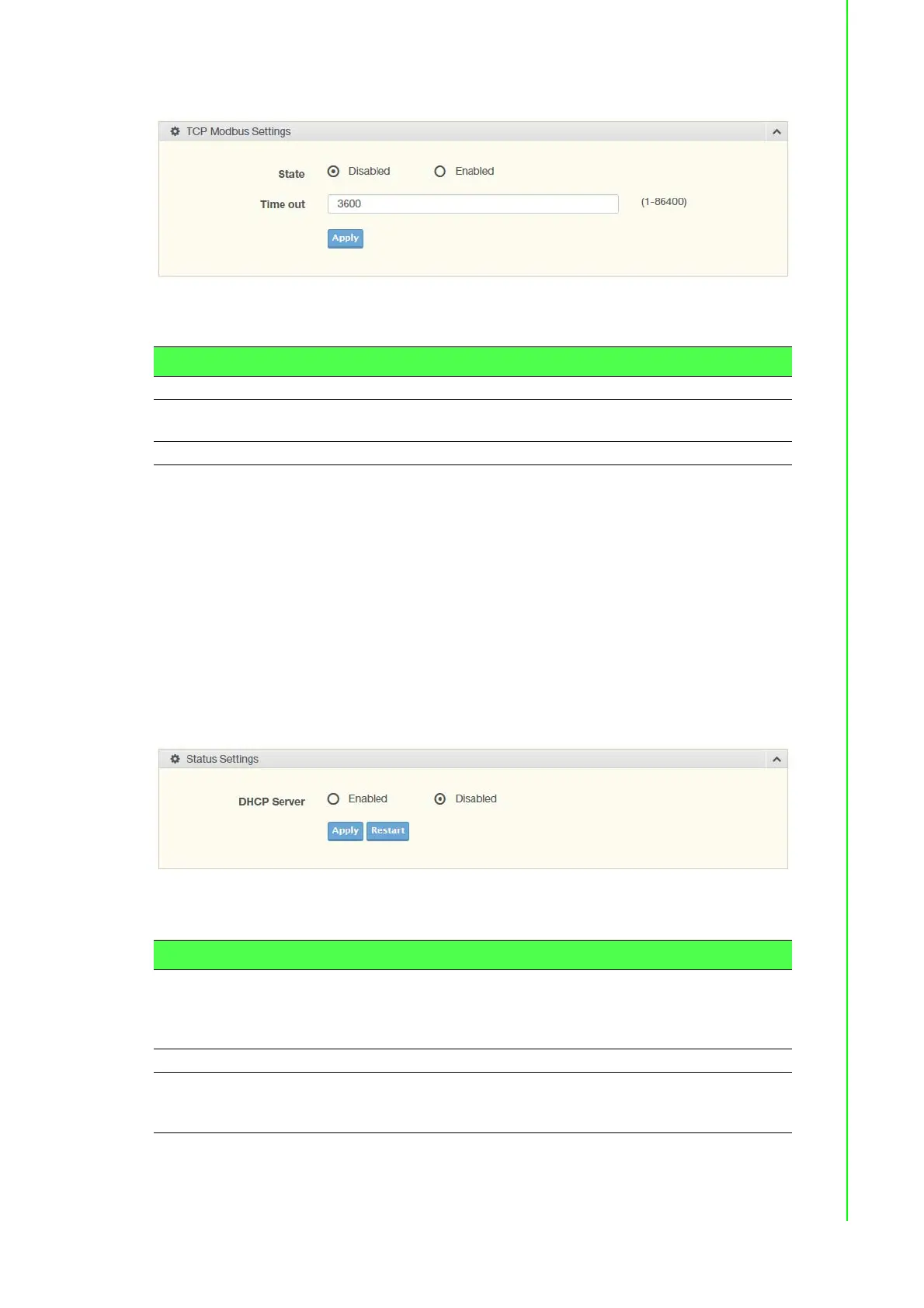

Figure 4.93 Management > TCP Modbus > TCP Modbus Settings
The following table describes the items in the previous figure.
The ensuing table for TCP Modbus Status settings are informational only: TCP Mod-
bus status and TCP Modbus time out.
4.9.5 DHCP Server
The Dynamic Host Configuration Protocol (DHCP) is a network protocol enabling a
server to automatically assign an IP address to a computer from a defined range of
numbers configured for a given network.
4.9.5.1 Status Settings
The Status Settings page allows you to configure the DHCP server mode (enabled or
disabled).
To access this page, click Management > DHCP Server > Status Settings.
Figure 4.94 Management > DHCP Server > Status Settings
The following table describes the items in the previous figure.
The ensuing table for Status Information settings are informational only: DHCP
Server Service.
Item Description
State Click Disabled or Enabled to set the TCP Modbus state.
Time out Enter the value (1 to 86400) to define the timeout period between
transport time.
Apply Click Apply to save the values and update the screen.
Item Description
DHCP Server Select Enable or Disable to designate the DHCP server function
type.
When a new DHCP server mode is selected, the switch requires a
system restart for the new mode to take effect.
Apply Click Apply to save the values and update the screen.
Restart Click Restart to have the switch perform a system restart function. In
the event that the IP settings are changed, the DHCP server must be
restarted for the IP settings to take effect.
