1.3.2 Rear View
The following view applies to EKI-7710E-2C, EKI-7710E-2CI, EKI-7710G-2C,
EKI-7710G-2CI, EKI-7710E-2CP, EKI-7710E-2CPI, EKI-7710G-2CP and EKI-
7710G-2CPI.

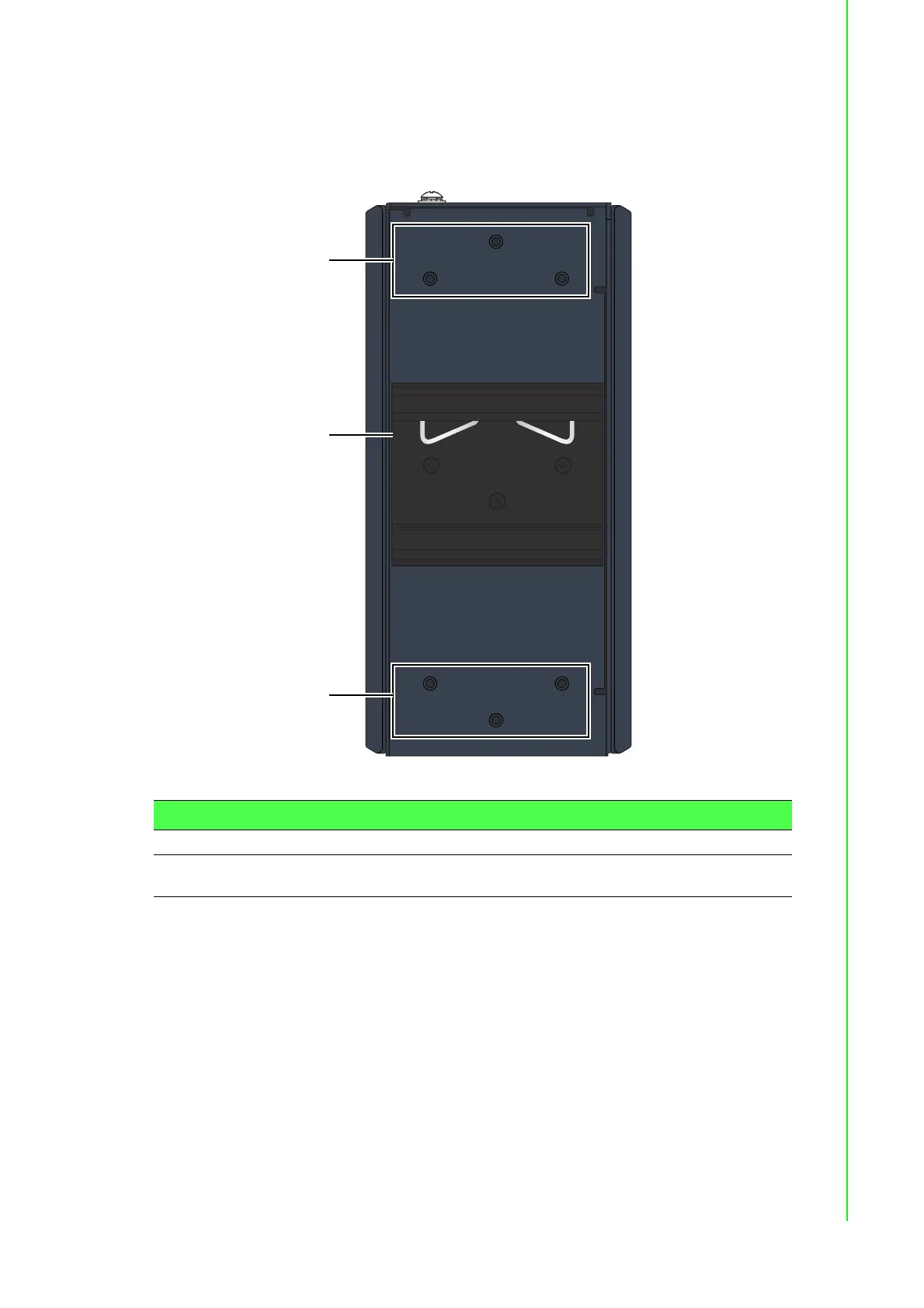

Figure 1.5 Rear View
No. Item Description
1
Wall mounting holes Screw holes (x6) used in the installation of a wall mounting plate
2
DIN-Rail mounting
plate
Mounting plate used for the installation to a standard DIN rail
2
1
1
