52 EKI-7710 Series User Manual
To access this page, click L2 Switching > 802.1Q VLAN > Port to VLAN.

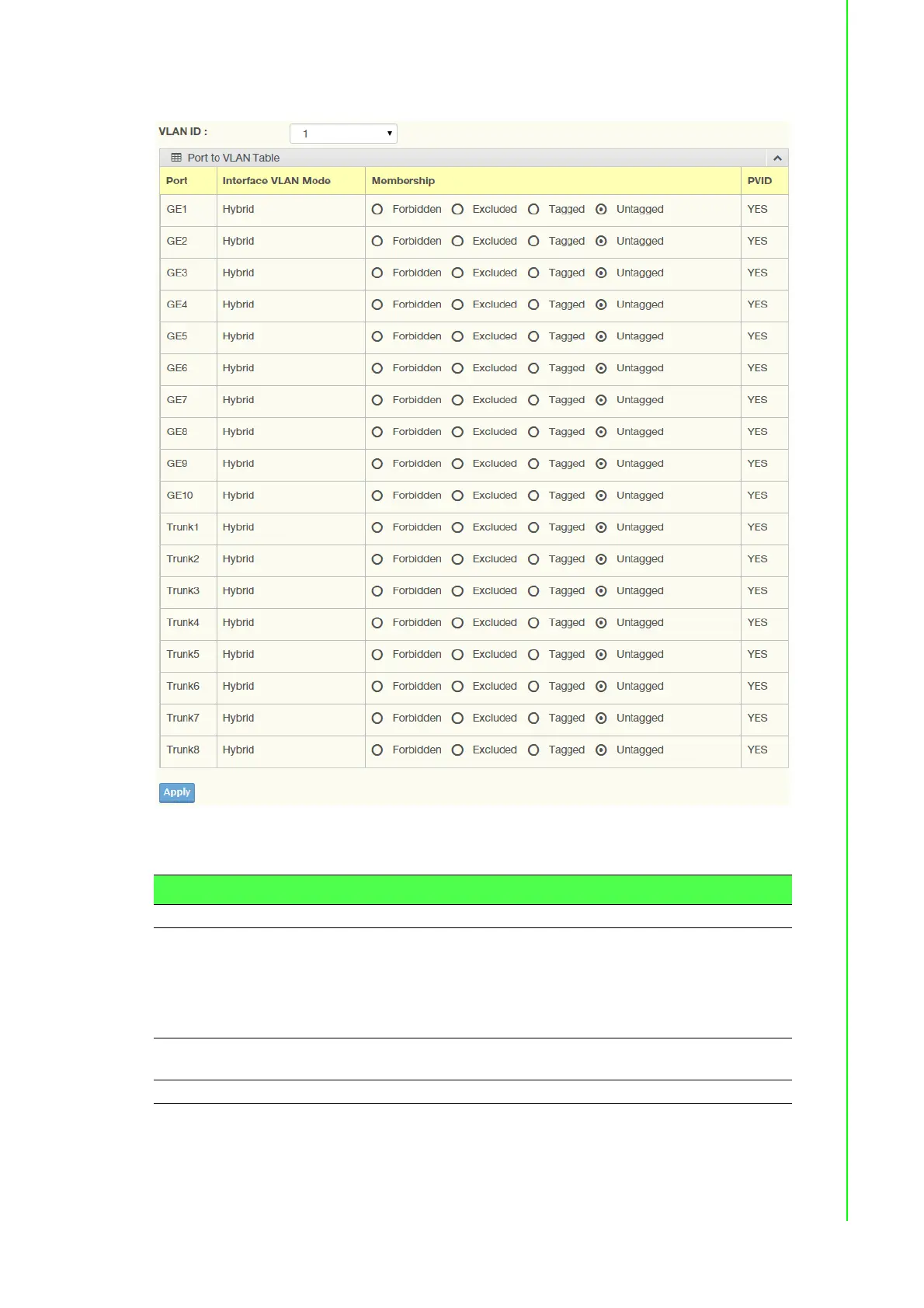

Figure 4.24 L2 Switching > 802.1Q VLAN > Port to VLAN
The following table describes the items in the previous figure.
4.5.4.4 Port-VLAN Mapping
To access this page, click L2 Switching > 802.1Q VLAN > Port-VLAN Mapping.
The ensuing table for Port-VLAN Mapping Table settings are informational only:
Port, Mode, Administrative VLANs and Operational VLANs.
Item Description
Port Displays the assigned port to the entry.
Interface VLAN Mode Displays the assigned mode to the listed VLAN port.
 Hybrid: Port hybrid model.
 Access: Port hybrid model.
 Trunk: Port hybrid model.
 Tunnel: Port hybrid model.
Membership Displays the assigned membership status of the port entry, options
include: Forbidden, Excluded Tagged or Untagged.
Apply Click Apply to save the values and update the screen.
