To access this page, click Security > 802.1x > 802.1x Port Configuration.

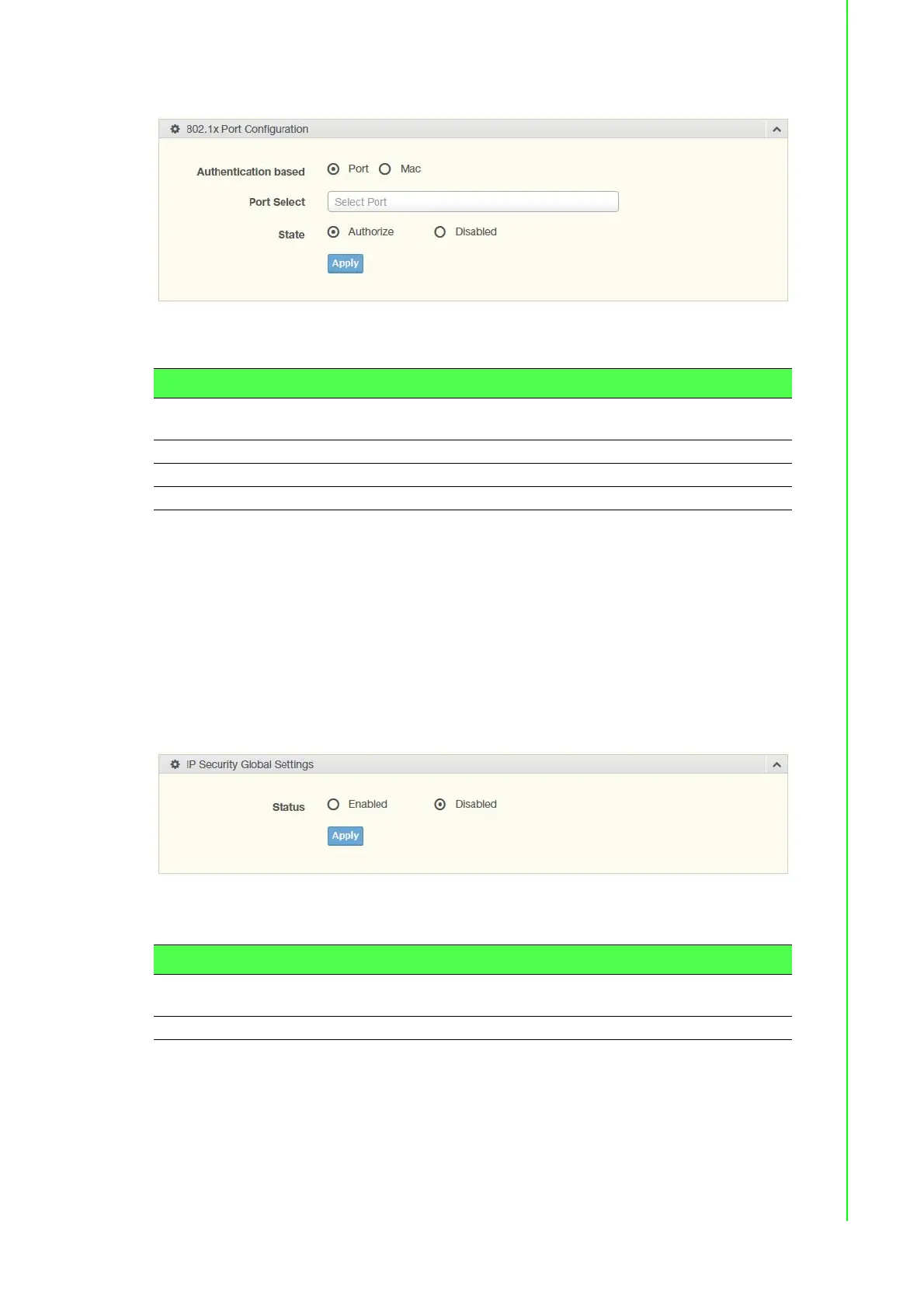

Figure 4.66 Security > 802.1x > 802.1x Port Configuration
The following table describes the items in the previous figure.
The ensuing table for 802.1x Port Authorization settings are informational only: Port
and Port State.
4.7.7 IP Security
This section provides you a means to configure the IP Security settings.
4.7.7.1 Global Settings
The Global Settings page allows you to set the IP Security status (enabled or dis-
abled).
To access this page, click Security > IP Security > Global Settings.
Figure 4.67 Security > IP Security > Global Settings
The following table describes the items in the previous figure.
The ensuing table for IP Security Status settings are informational only: IP Security.
4.7.7.2 Entry Settings
Once the Global Setting is enabled, use the Entry Settings to define an IP Security
entry.
Item Description
Authentication based Click Port or Mac to designate the type of configuration for the 802.1x
Port setting.
Port Select Enter the port number associated with the configuration setting.
State Click Authorize or Disabled to define the listed port’s state mode.
Apply Click Apply to save the values and update the screen.
Item Description
Status Click Enabled or Disabled to define the global setting for the IP secu-
rity function.
Apply Click Apply to save the values and update the screen.
