EKI-7710 Series User Manual 67
The following table describes the items in the previous figure.
The ensuing table for Information settings are informational only: Ring ID, Role, Port
1, Port 2 and Delete (click to delete the desired Ring ID).
4.5.12 X-Ring Pro
The X-Ring Pro function provides an improvement over Spanning Tree and Rapid
Spanning Tree and a rapid auto recovery in the event that the network suffers a cor-
rupt or broken link and prevents network loops.
4.5.12.1 X-Ring Pro Settings
The X-Ring Pro Settings page allows you to configure the status (enabled or dis-
abled) of the function.
To access this page, click L2 Switching > X-Ring Pro > X-Ring Pro Settings.

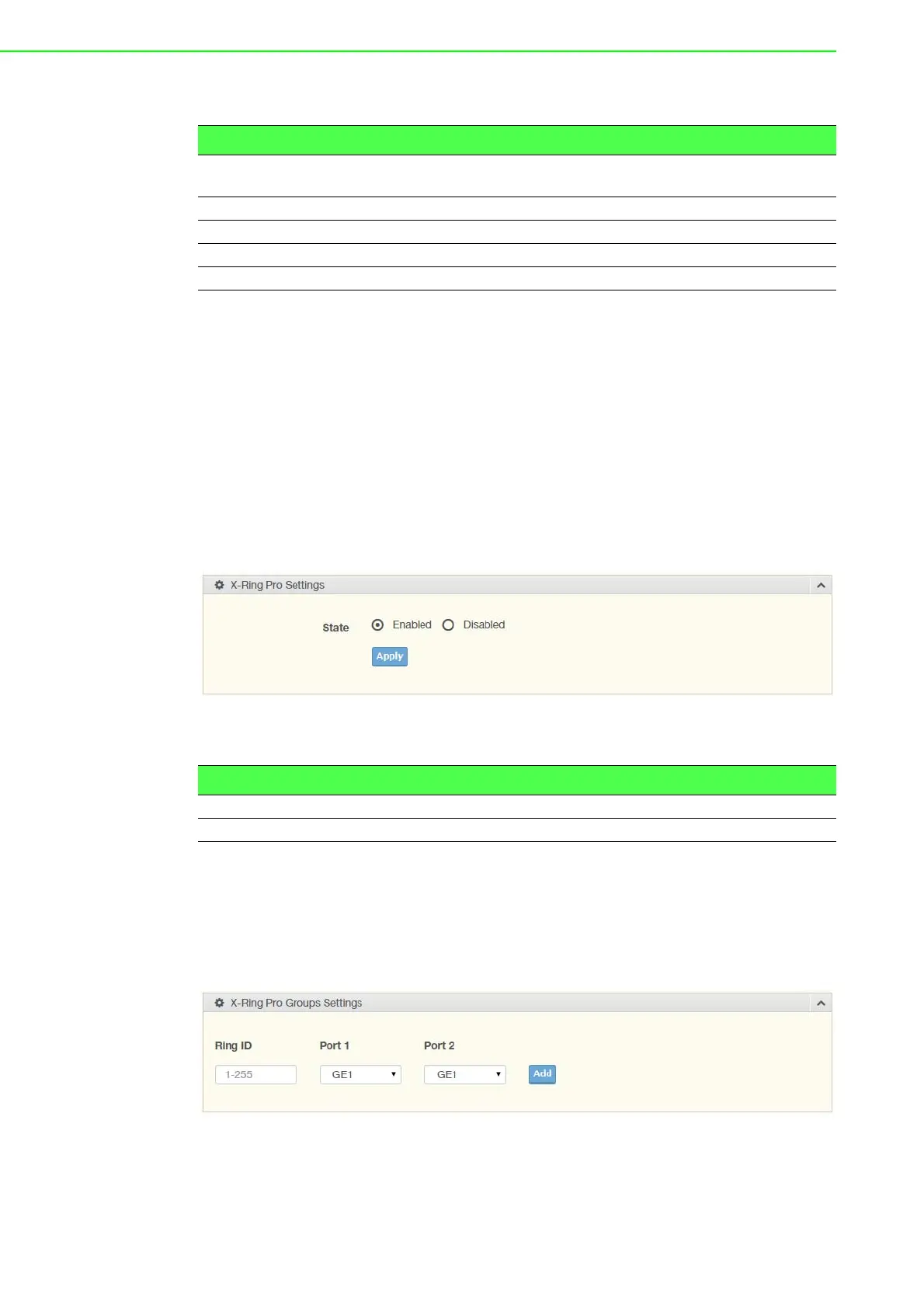

Figure 4.47 L2 Switching > X-Ring Pro > X-Ring Pro Settings
The following table describes the items in the previous figure.
The ensuing table for Information settings are informational only: X-Ring Pro State.
4.5.12.2 X-Ring Pro Groups
The X-Ring Pro Groups page allows you to select the function and role for each ring
ID and its connected ports.
To access this page, click L2 Switching > X-Ring Pro > X-Ring Pro Groups.
Figure 4.48 L2 Switching > X-Ring Pro > X-Ring Pro Groups > X-Ring Pro
Groups Settings
Item Description
Ring ID Enter a number to specifies a ranging from 1 to 255 to identify a given
X-Ring Elite group.
Role Click the drop-down menu to select the ring role.
Port 1 Click the drop-down menu to define the port designation.
Port 2 Click the drop-down menu to define the port designation.
Add Click Add to save the values and update the screen.
Item Description
State Select Enabled or Disabled to setup the X-Ring Pro mode.
Apply Click Apply to save the values and update the screen.
