EKI-7710 Series User Manual 73
The following table describes the items in the previous figure.
The ensuing table for Storm Control Port Information settings are informational
only: Port, Port State, Broadcast (Kbps), Unknown Multicast (Kbps), Unknown Uni-
cast (Kbps) and Action.
4.7.2 Port Security
The Port Security page allows you to configure port isolation behavior.
To access this page, click Security > Port Security.

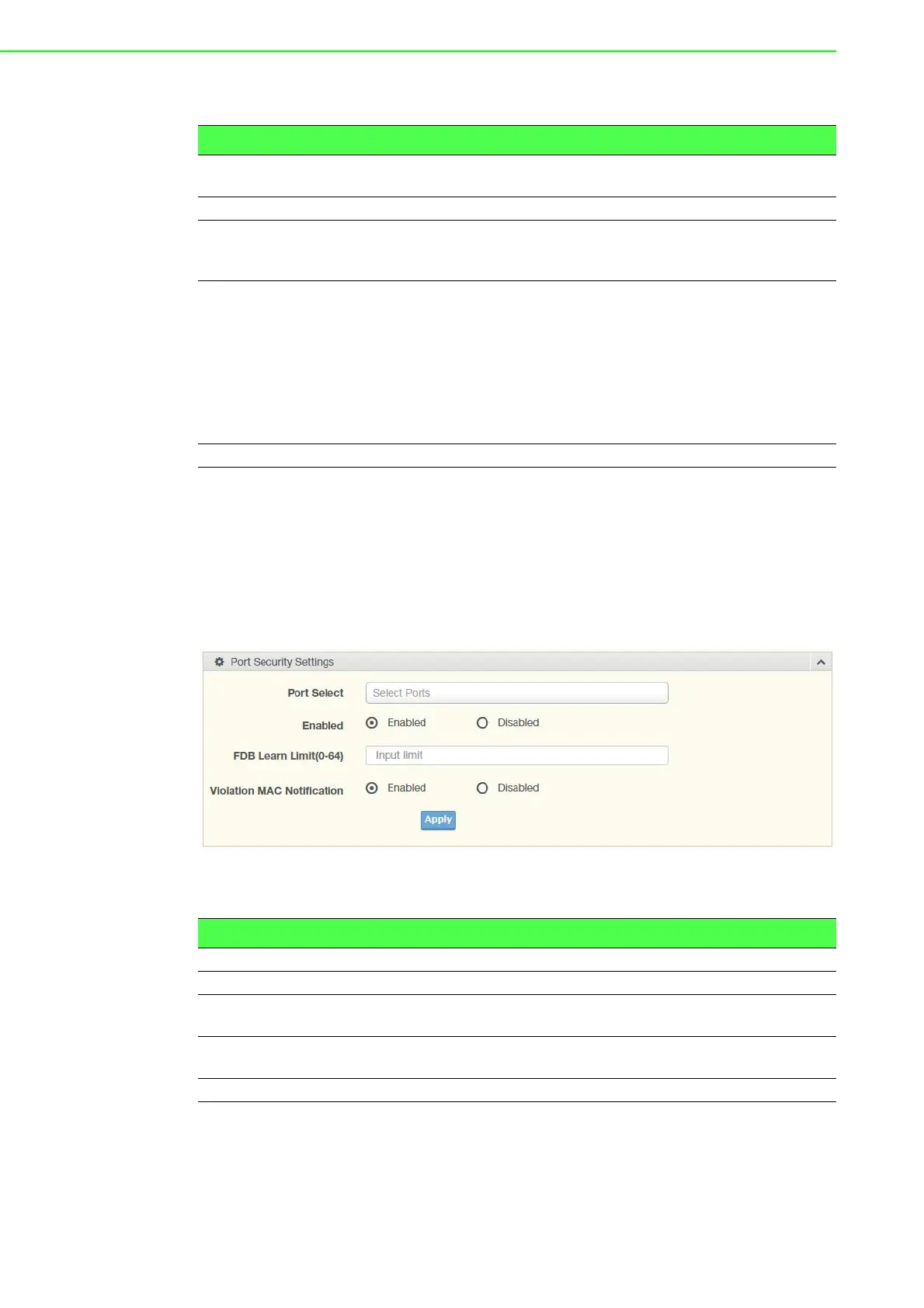

Figure 4.57 Security > Port Security
The following table describes the items in the previous figure.
The ensuing table for Port Security Information settings are informational only:
Port, Enabled, FDB Learn Limit and Violation MAC Notification.
Item Description
Port Enter the port number to designate the local port for the Storm Control
function.
Port State Select Disabled or Enabled to define the port state
Action Click the drop-down menu to select the type of action to designate for
the selected port during a Storm Control incident. The options are
Drop and Shutdown.
Type Enable Click the radio button to enable Broadcast, Unknown Multicast, or
Unknown Unicast.
 Broadcast: Select the variable in Kbps to define the broadcast
bandwidth.
 Unknown Multicast: Select the variable in Kbps to define the
multicast setting.
 Broadcast: Select the variable in Kbps to define the unknown
unicast setting.
Apply Click Apply to save the values and update the screen.
Item Description
Port Select Enter a single or multiple port numbers to configure.
Enabled Select Enabled or Disabled to define the selected Port.
FDB Learn Limit
(0-64)
Enter the variable (0 to 64) to set the learn limit for the FDB setting.
Violation MAC Notifi-
cation
Select Enabled or Disabled to define the selected Port.
Apply Click Apply to save the values and update the screen.
