The following table describes the items in the previous figure.
The ensuing table for MLD Querier Status settings are informational only: VLAN ID,
Querier State, Querier Status, Querier Version and Querier IP.
MLD Static Group
The MLD Static Group page allows you to configure specified ports as static member
ports.
To access this page, click L2 Switching > Multicast > MLD Snooping > MLD Static
Group.

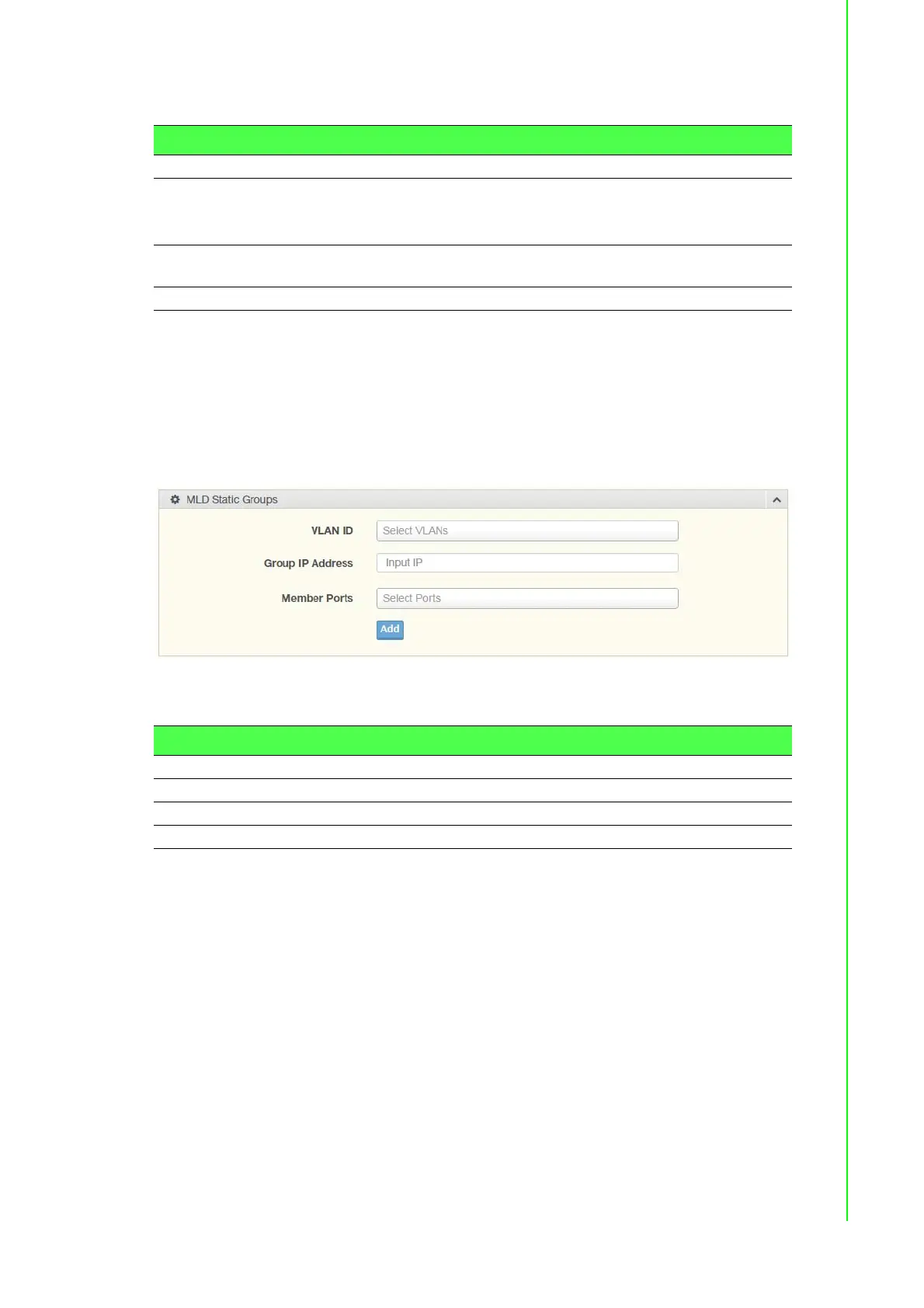

Figure 4.36 L2 Switching > Multicast > MLD Snooping > MLD Static Group
The following table describes the items in the previous figure.
The ensuing table for MLD Static Groups Status settings are informational only:
VLAN ID, Group IP Address, Member Ports and Modify.
Multicast Groups
To access this page, click L2 Switching > Multicast > MLD Snooping > Multicast
Groups.
The ensuing table for Multicast Groups settings are informational only: ID, Group IP
Address, Member Ports, Type and Life (Sec).
Router Ports
To access this page, click L2 Switching > Multicast > MLD Snooping > Router
Ports.
The ensuing table for Router Ports settings are informational only: VLAN ID, Port
and Expiry Time (Sec).
Item Description
VLAN ID Enter the VLAN ID to configure.
Querier State Select Enable or Disable status on the selected VLAN.
Enable: Enable IGMP Querier Election.
Disable: Disable IGMP Querier Election.
Querier Version Select the querier version (IGMPV1 or IGMPV2) designated to the
MLD Querier function.
Apply Click Apply to save the values and update the screen.
Item Description
VLAN ID Enter the VLAN ID to define the local MLD Static Group.
Group IP Address Enter the IP address associated with the static group.
Member Ports Enter the ports designated with the static group.
Add Click Add to add a MLD static group.
