18 EKI-7710 Series User Manual
2.4.2 Removing SFP Modules
To disconnect an LC connector, use the following guidelines:
1. Press down and hold the locking clips on the upper side of the optic cable.
2. Pull the optic cable out to release it from the transceiver.

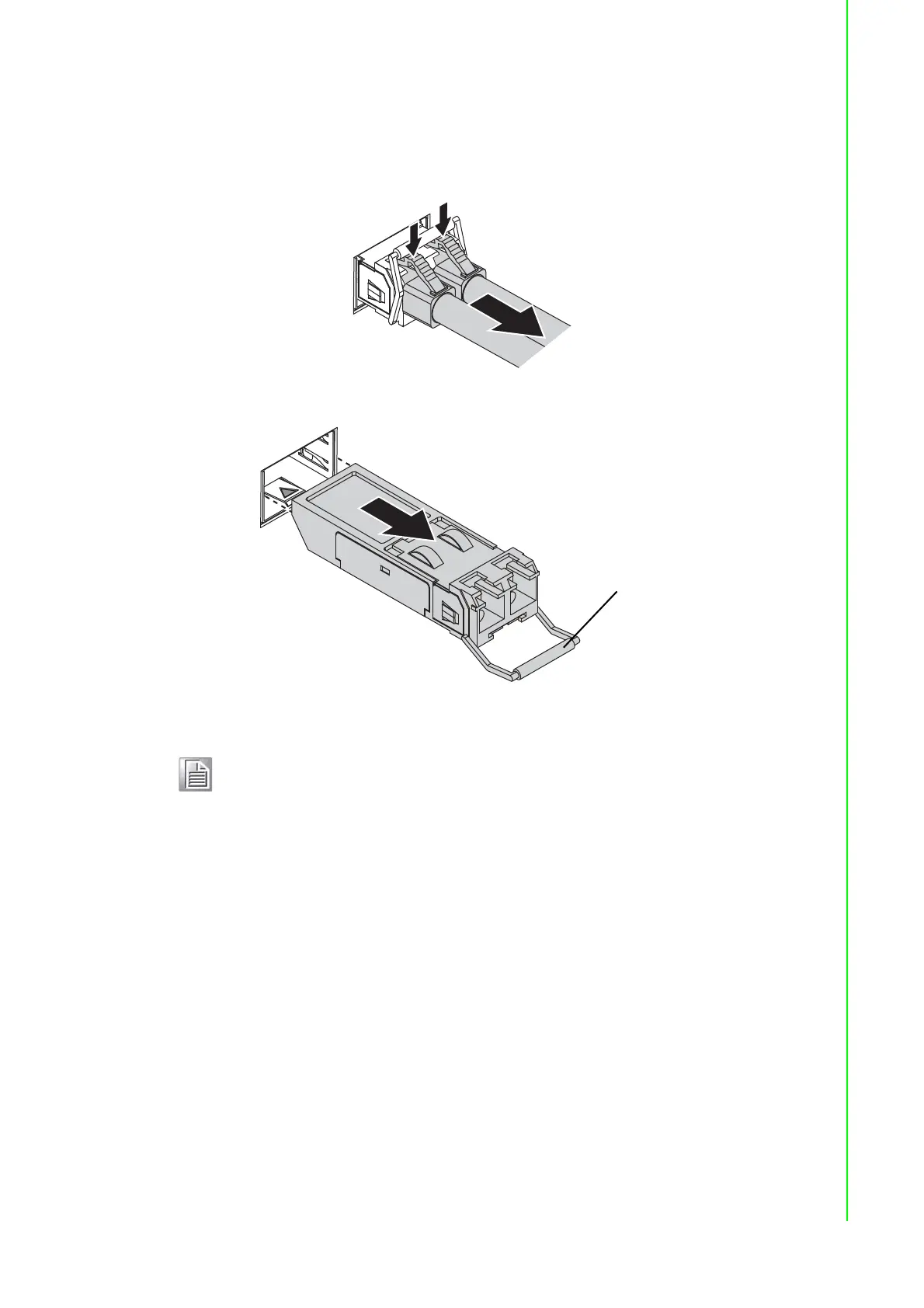

Figure 2.9 Removing a Fiber Optic Cable to a Transceiver
3. Hold the handle on the transceiver and pull the transceiver out of the slot.
Figure 2.10 Removing an SFP Transceiver
Note! Replace the dust plug on the slot if you are not installing a transceiver.
The dust plug protects hardware from dust contamination.
