188 Chapter 4
Troubleshooting
Troubleshooting Using Diagnostics Test

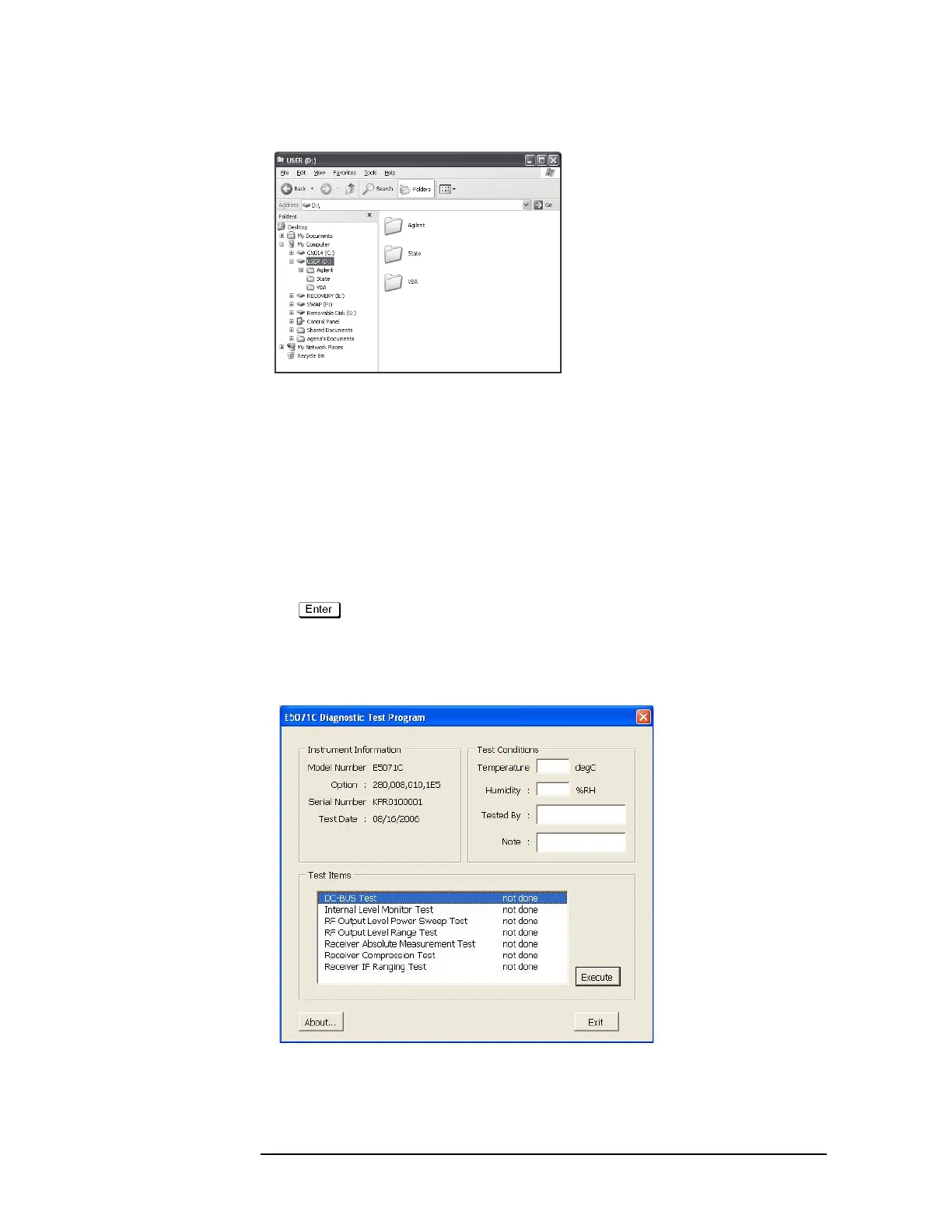

Figure 4-9 Open dialog box
e5071cse1062
Step 4. Select "User [D]" (preset state) from menu in the "Lock in:" box.
Step 5. Double-click "Agilent" folder to open it and to access its menu.
Step 6. Double-click "Service" folder to open it.
Step 7. Click "DiagnosticsTest.vba" program file to select it from program menu.
Step 8. Click "Open" button to download the internal test program.
Step 9. Press Select Macro to select function.
Step 10. Press (or click Module1 main) to open the Module1 main program file.
"Diagnostics Test" dialog box will appear as shown in Figure 4-10. The dialog box shows
the menu of test groups to choose from.
Figure 4-10 Diagnostics Test dialog box
Step 11. Select the Test item and Click "Execute" button to run the test program. The dialog box
displays "In process..." while the test is in progress.
