Appendix B
347
System Reco
very
System Recovery
B. System Recovery
St
e
p
6
.
Click
Next
button.

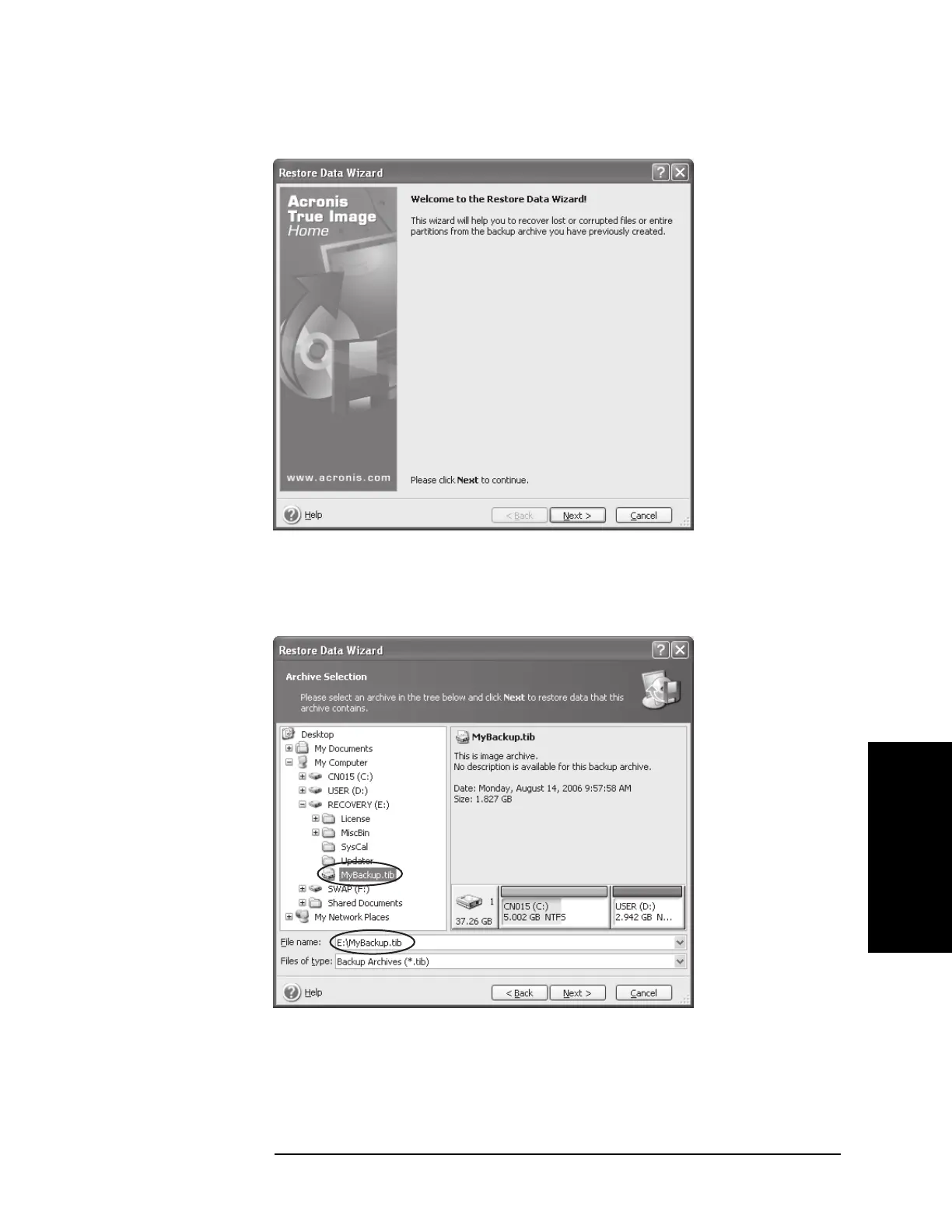

e5071cse1137
St
e
p
7
.
Select the saved backup image file, then click
Next
button.
e5071cse1138
