348
Appendix B
System Re
covery
System Recovery
St
e
p
8
.

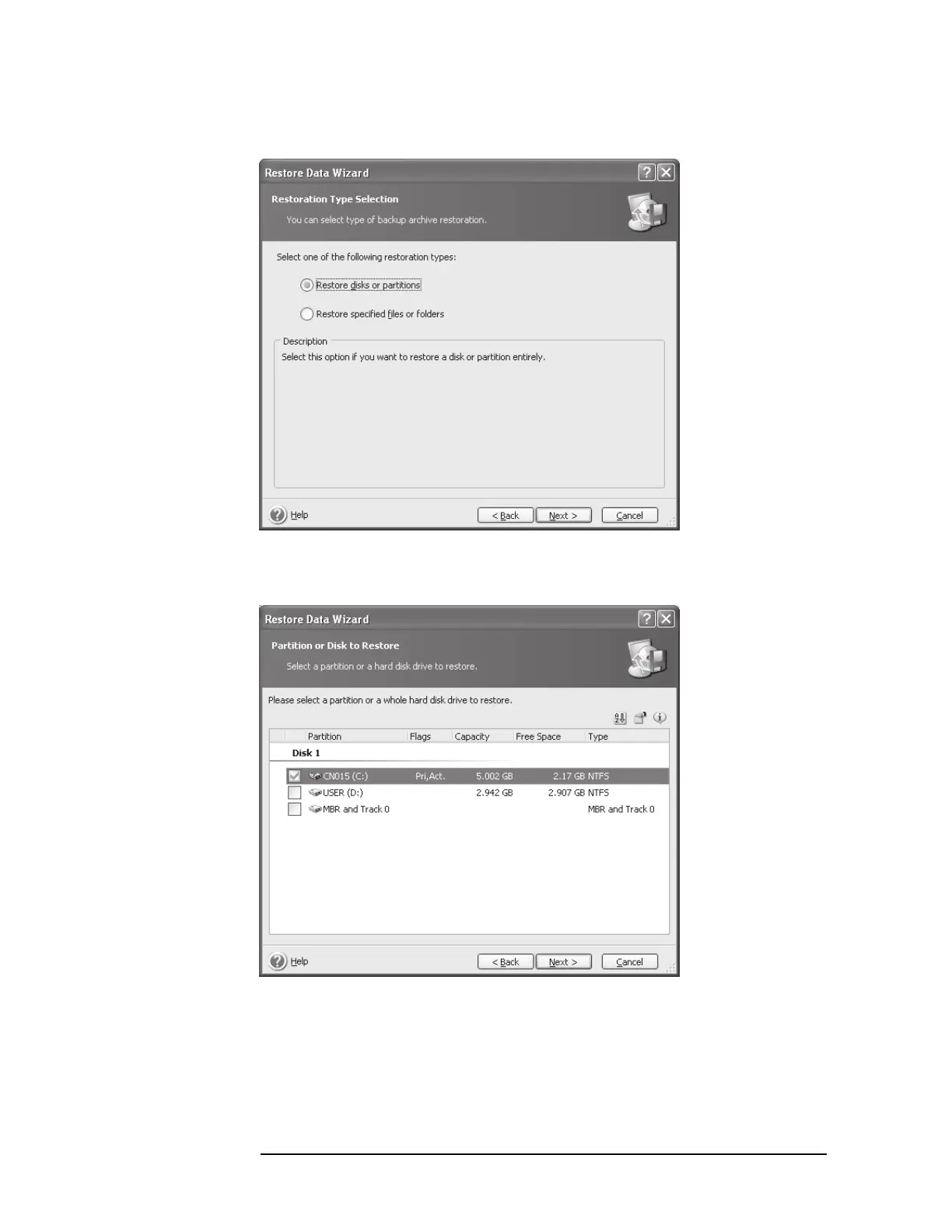

Select “Restore disks or partitions,” then click
Next
butt
on.
e5071cse1139
St
e
p
9
.
Select the C drive, then click
Next
button.
e5071cse1143
