Appendix B
349
System Reco
very
System Recovery
B. System Recovery
S
tep 10.

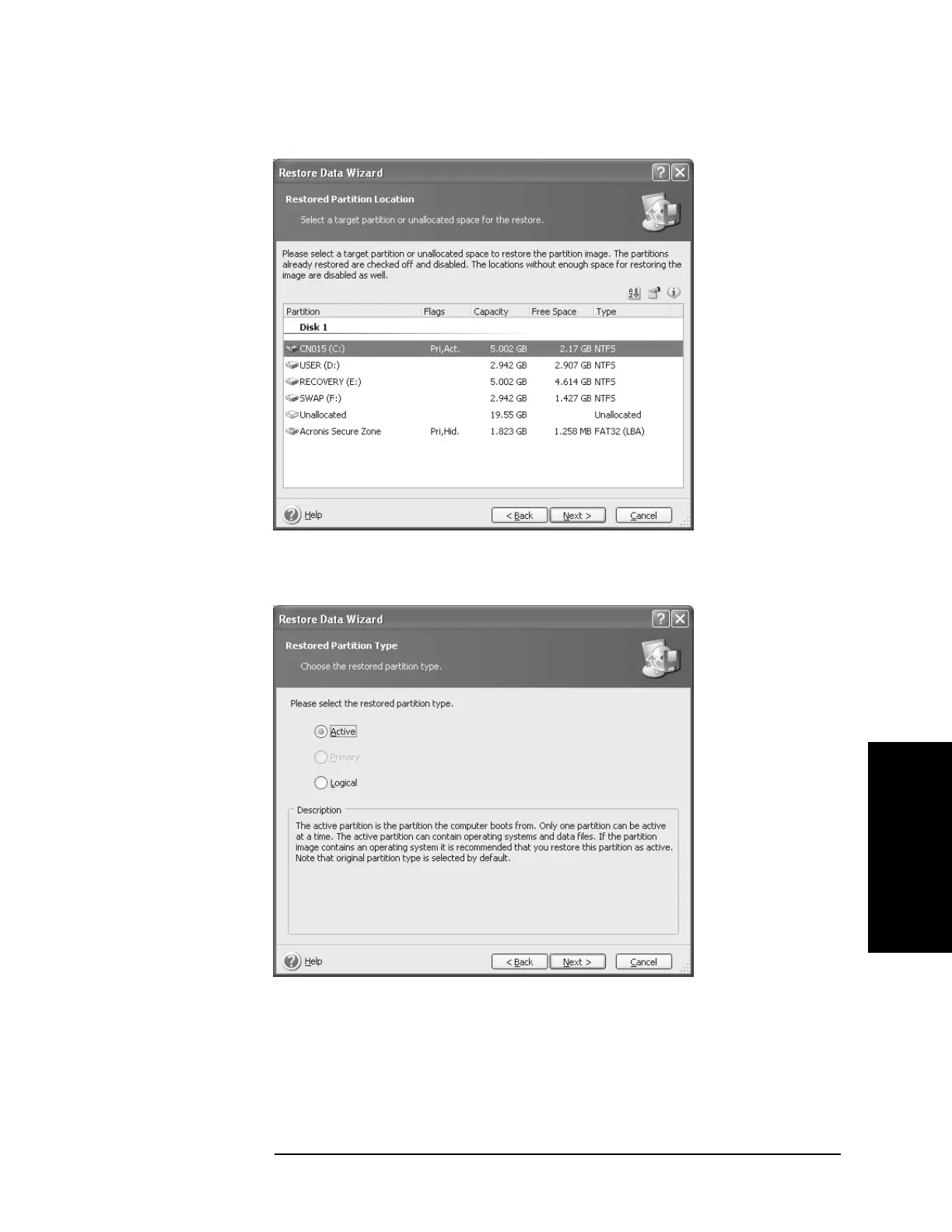

Select the C drive to restore, then click
Next
button.
e5071cse1144
St
e
p
11
.
Select “Active” and click
Next
button.
e5071cse1145
348
350
