Rockwell Automation Publication 1769-UM022C-EN-P - June 2018 191
Store and Load Programs with a Secure Digital Card Chapter 13

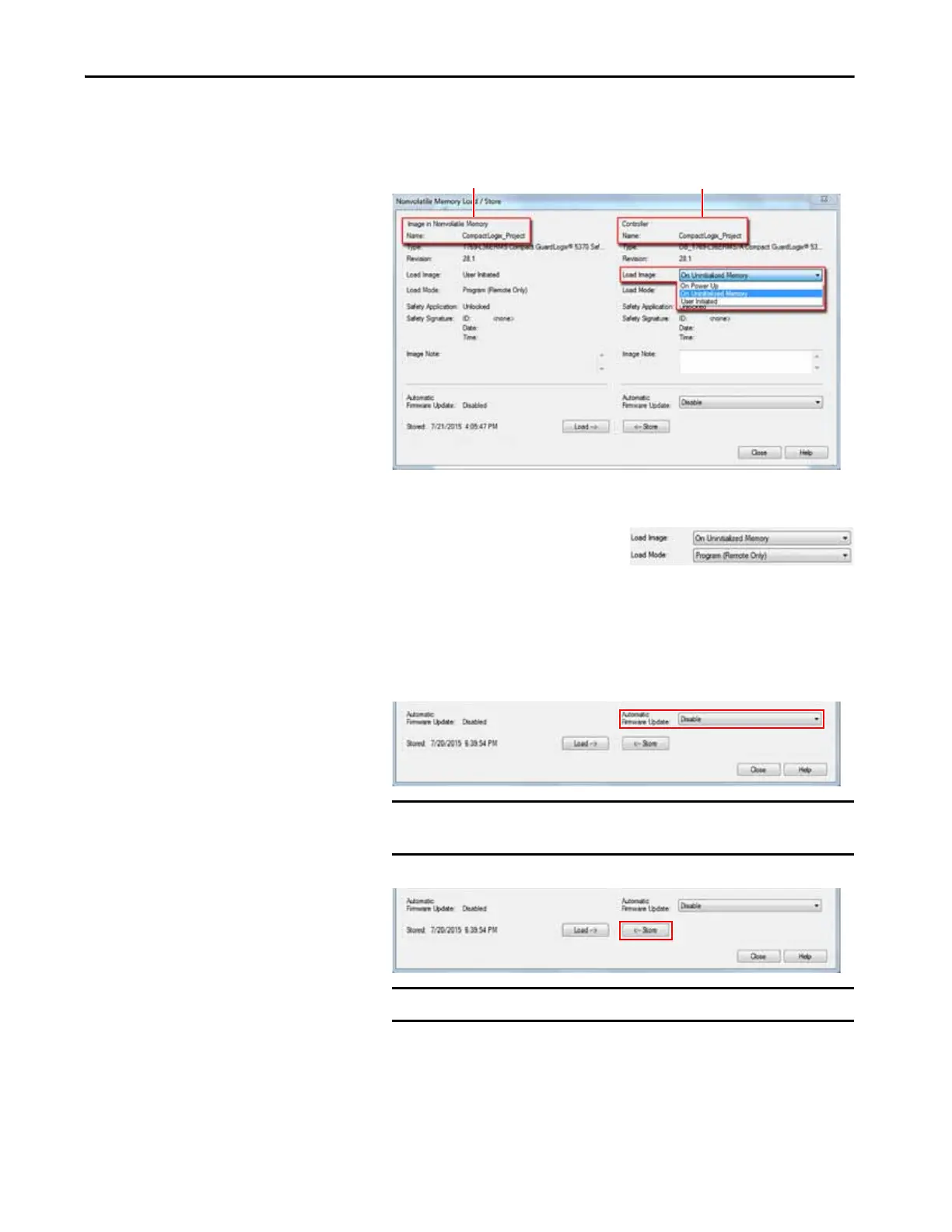

6. Choose under what conditions to load the project into the user memory
of the controller.
If you choose On Power Up or On Uninitialized Memory, you must also
choose the mode that you want the controller to go to after the load:
•Program (Remote Only)
•Run (Remote Only)
7. In the Automatic Firmware Update box, use the default (disable) or
choose the Firmware Supervisor option.
8. Click <--Store.
A dialog box asks for confirmation of the store.
9. To store the project, click Yes.
TIP When you store a safety application project on a SD card, we recommend
that you select Program (Remote Only) as the Load mode, that is, the mode
that the controller should enter after the load.
IMPORTANT The Firmware Supervisor option is not used to upgrade the
controller firmware.
IMPORTANT Store is not active if a SD card is locked.
Project that is currently on the SD card of
the controller (if any project is there).
Project that is currently in the
user memory of the controller.
