Rockwell Automation Publication 1769-UM022C-EN-P - June 2018 47

Complete the Controller Setup Chapter 3

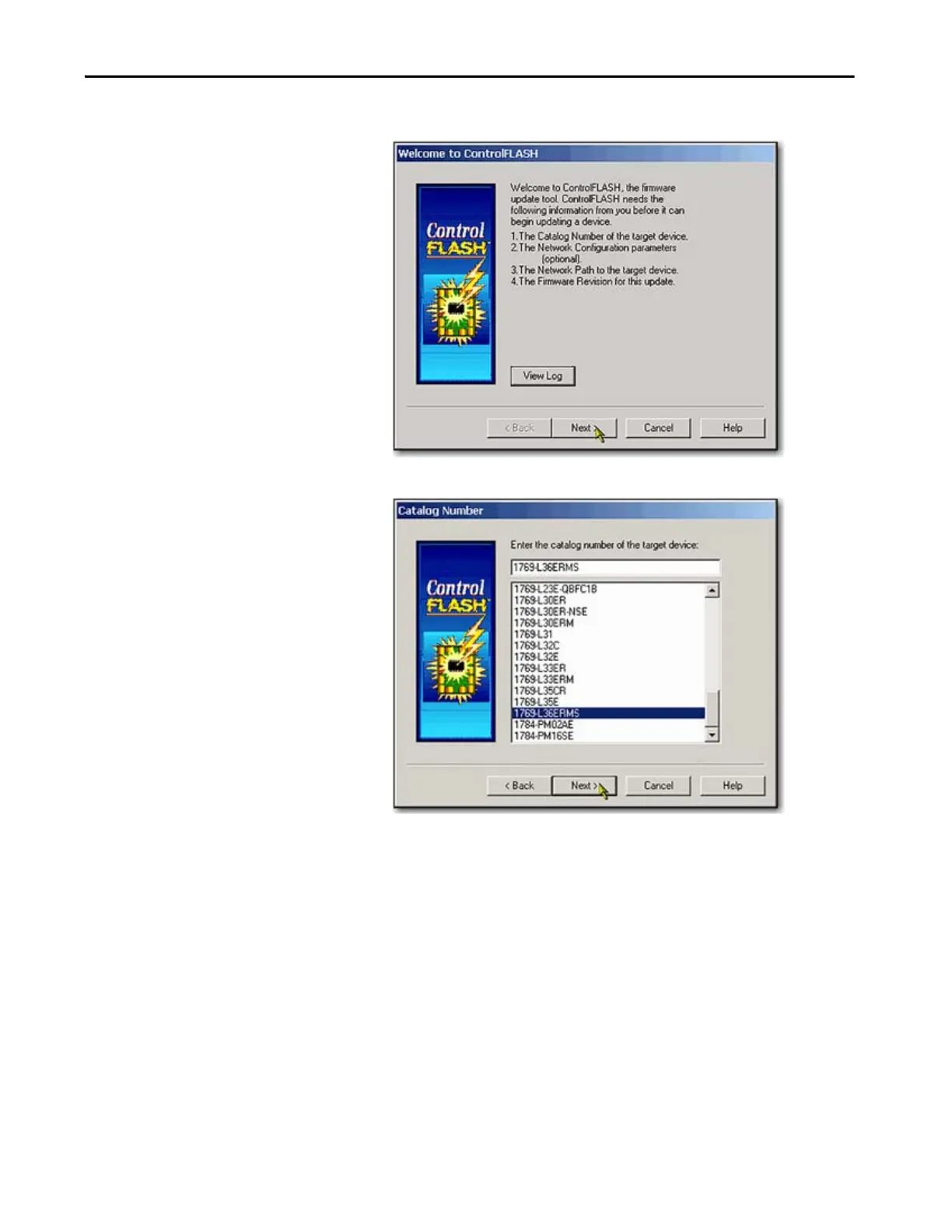

3. When the Welcome dialog box appears, click Next.

4. Choose the controller catalog number and click Next.

5. Expand the network until you see the controller.
