48 Rockwell Automation Publication 1769-UM022C-EN-P - June 2018

Chapter 3 Complete the Controller Setup

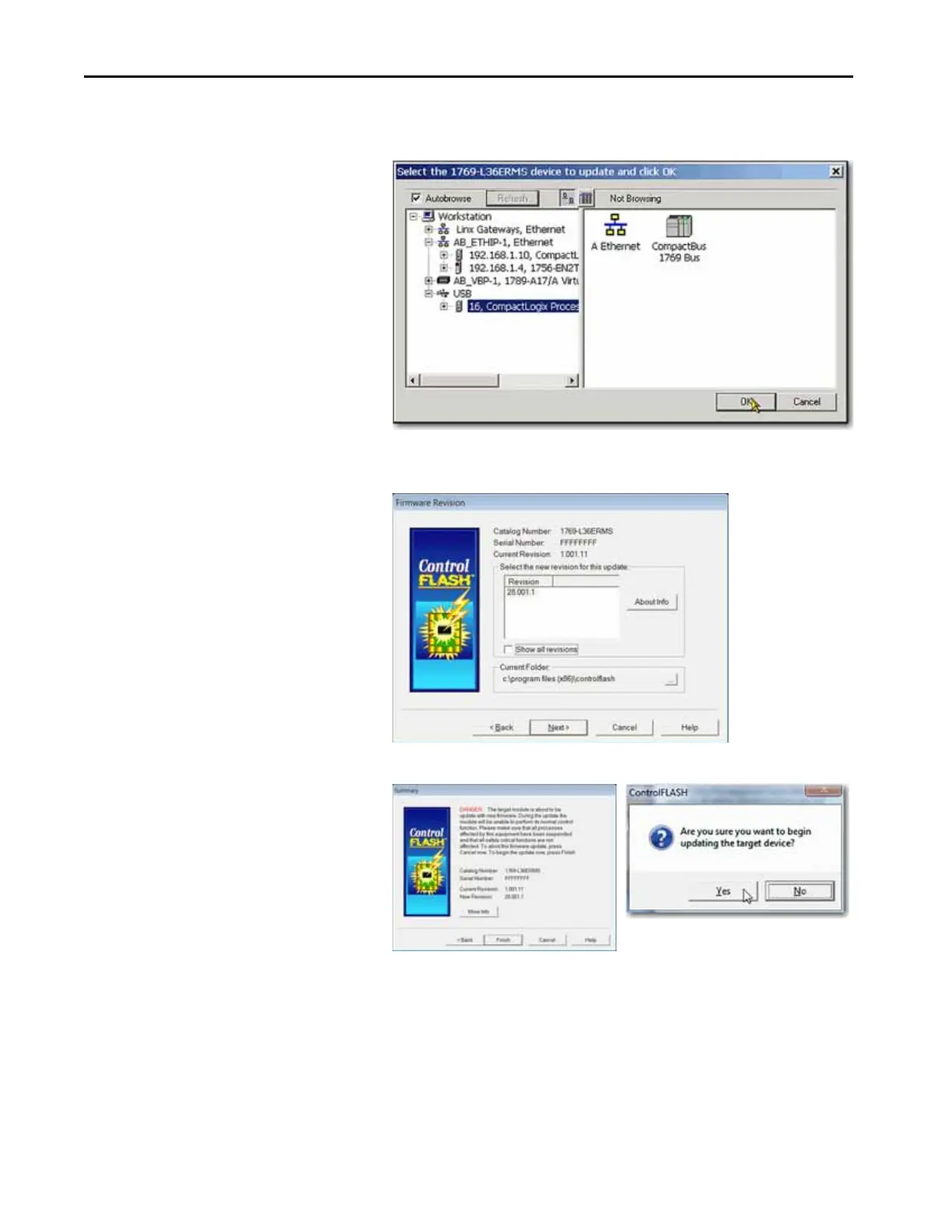

6. Choose the controller at the first instance in which it appears, as shown

in the following graphic, and click OK.

7. Choose the revision level to which you want to update the controller

and click Next.

8. To start the update of the controller, click Finish and click Yes.
