76 Rockwell Automation Publication 1769-UM022C-EN-P - June 2018

Chapter 5 Communicate Over Networks

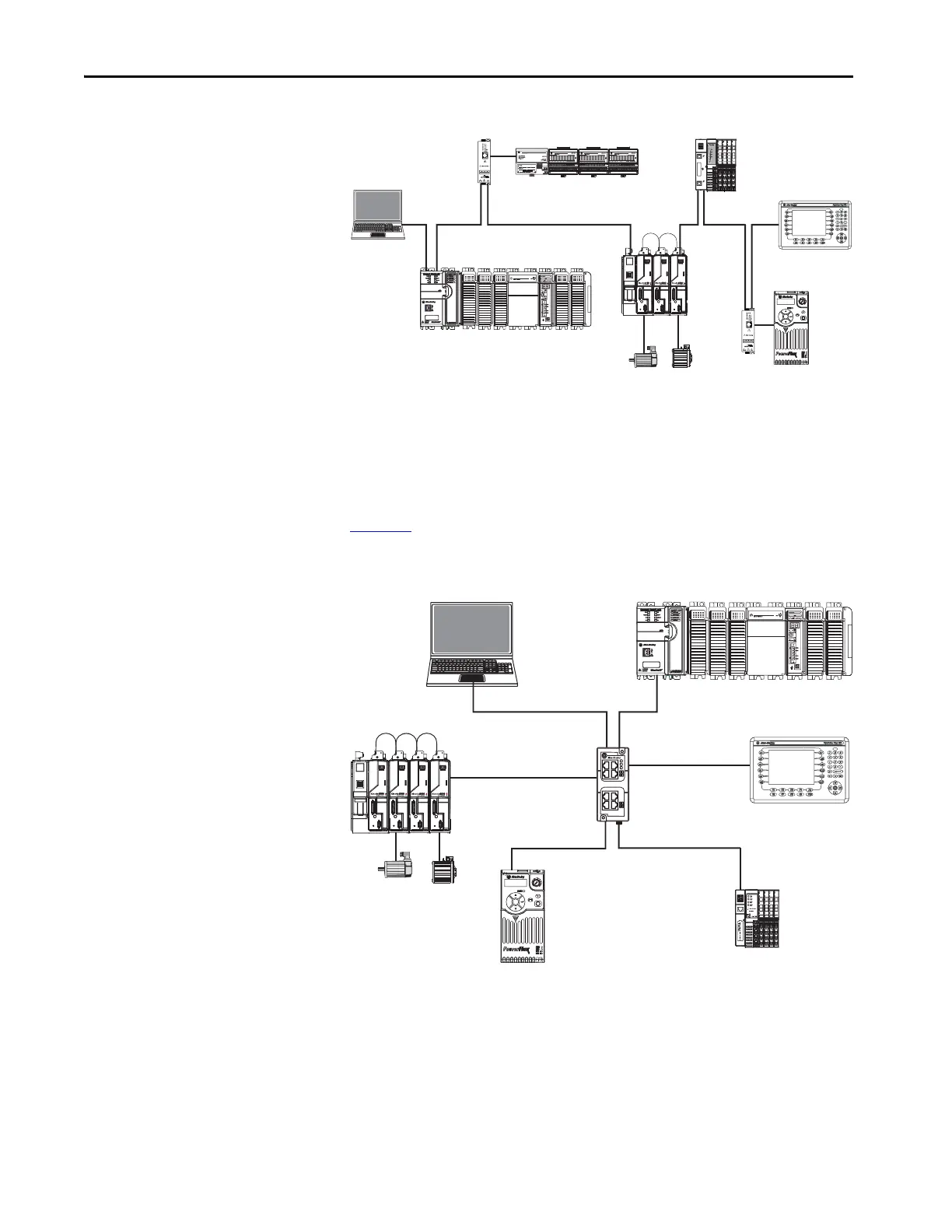

Figure 10 - Example 1769-L33ERMS Control System With a Linear Network Topology

Star Network Topology

A star network topology is a traditional EtherNet/IP network that includes

multiple devices that are connected to each other via an Ethernet switch.

Figure 11

shows an example 1769-L33ERMS control system with a star

network topology.

Figure 11 - Example 1769-L33ERMS Control System With a Star Network Topology

Esc

Sel

1769-L33ERMS

1734-AENTR POINT I/O

PanelView Plus

• PowerFlex® 525

• 1783-ETAP

• 1794-AENT FLEX

• 1783-ETAP

Kinetix

5500

Esc

Sel

1769-L33ERMS

1734-AENTR POINT I/O

PanelView Plus

PowerFlex 525

Kinetix 6500

Stratix 6000™
