Clutch System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-12

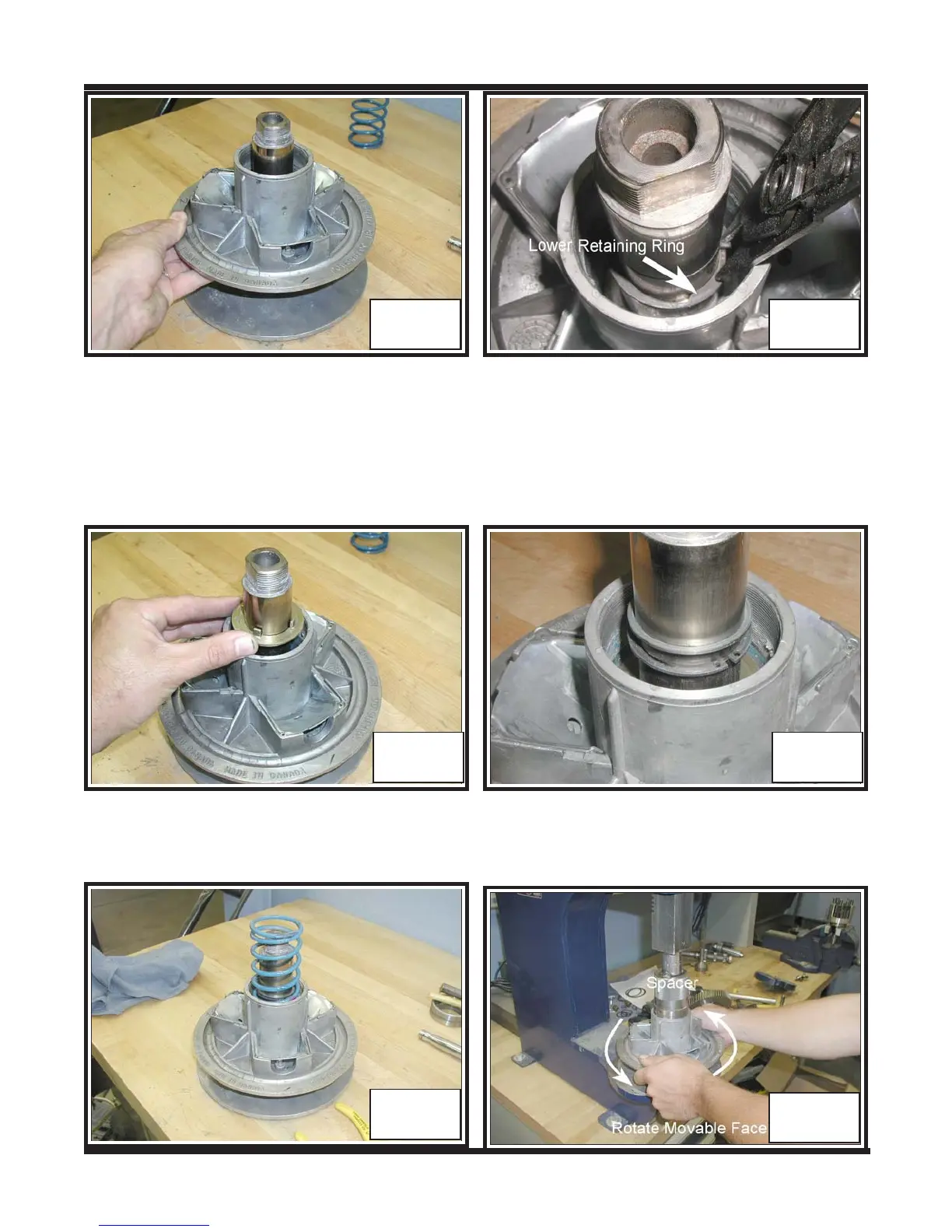

3. Install the lower retaining ring to the fixed shaft along with any shim(s) to the top of
the retaining ring. Photo CS-22 (Response, Bigfoot & Vanguard clutches only)
CS-21 CS-00
4. Place the spring guide washer on next. Photo CS-23
5. Install the second retaining ring to the fixed face shaft along with any shim(s) that
may have been installed before.. Photo CS-24
CS-23 CS-24
7. Install the threaded bushing cap. Photo CS-26 Use an arbor press to compress
spring.
6. Set the spring on to the spring guide washer. Photo CS-25
CS-25
CS-26
CS-22
