Argo Service Manual Clutch System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-13

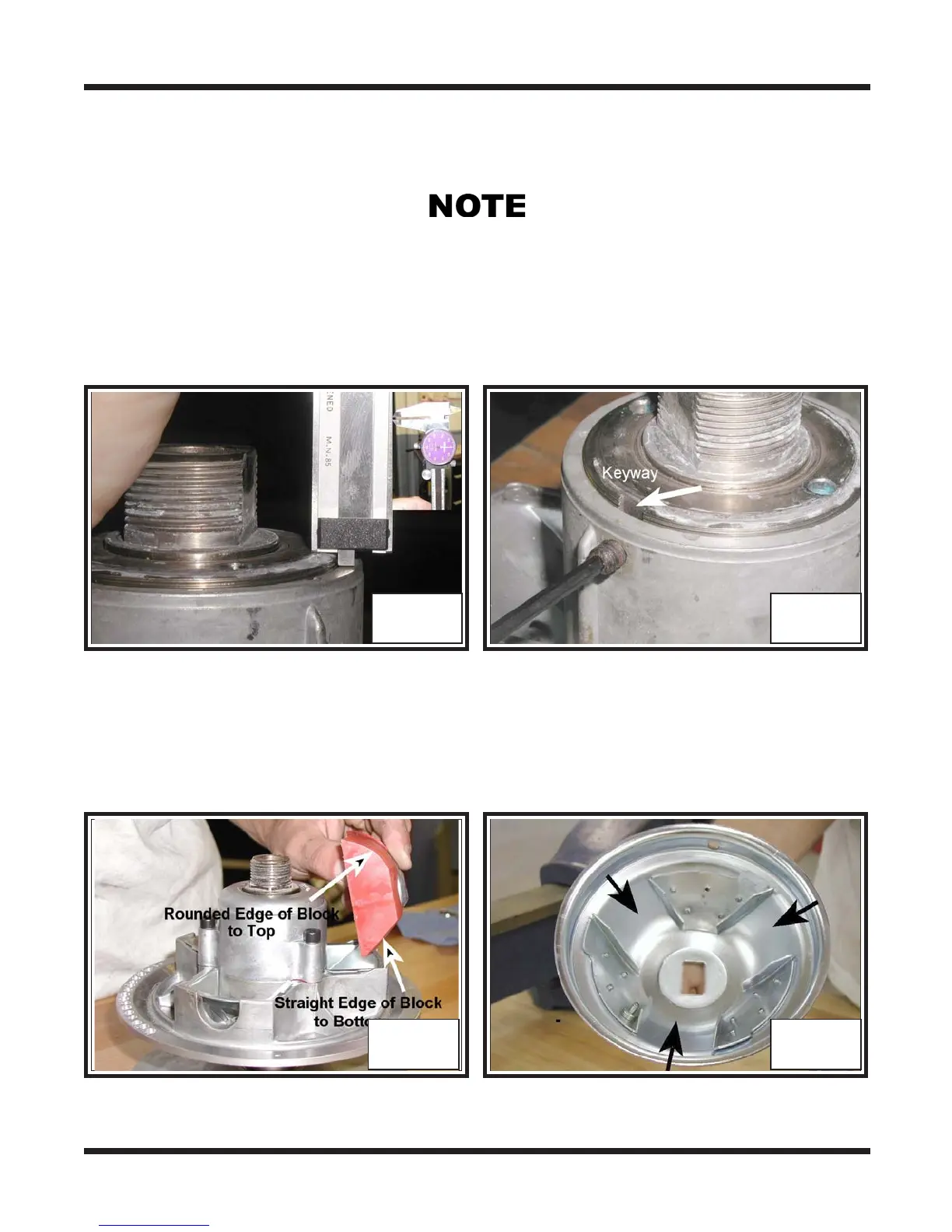

8. Thread the spring cap into the top of the moveable face until it sits approximately
0.100" above the top edge of the moveable face. Use a vernier to measure this.
Photo CS-27
Once this measurement is set, you may need to turn the threaded cap in either direction to
align the machined keyway in the cap with the set screw in the moveable face.
9. Apply red 271 LOCTITE to the thread of the set screw and tighten. Photo CS-28
CS-27 CS-28
10. Place the blocks and weights into the moveable face and orient as shown in
Photo CS-29
11. Install the clutch cover over the weights and blocks making sure that the blocks are
aligned with the guides riveted into the cap. Photo CS-30
CS-29 CS-30
