Wheels, Axles & Chains Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-28
WA-54 WA-55
iii. Move the idler shaft assembly to a clean
work area and remove the bearings,
flanges and the floating double sprocket.

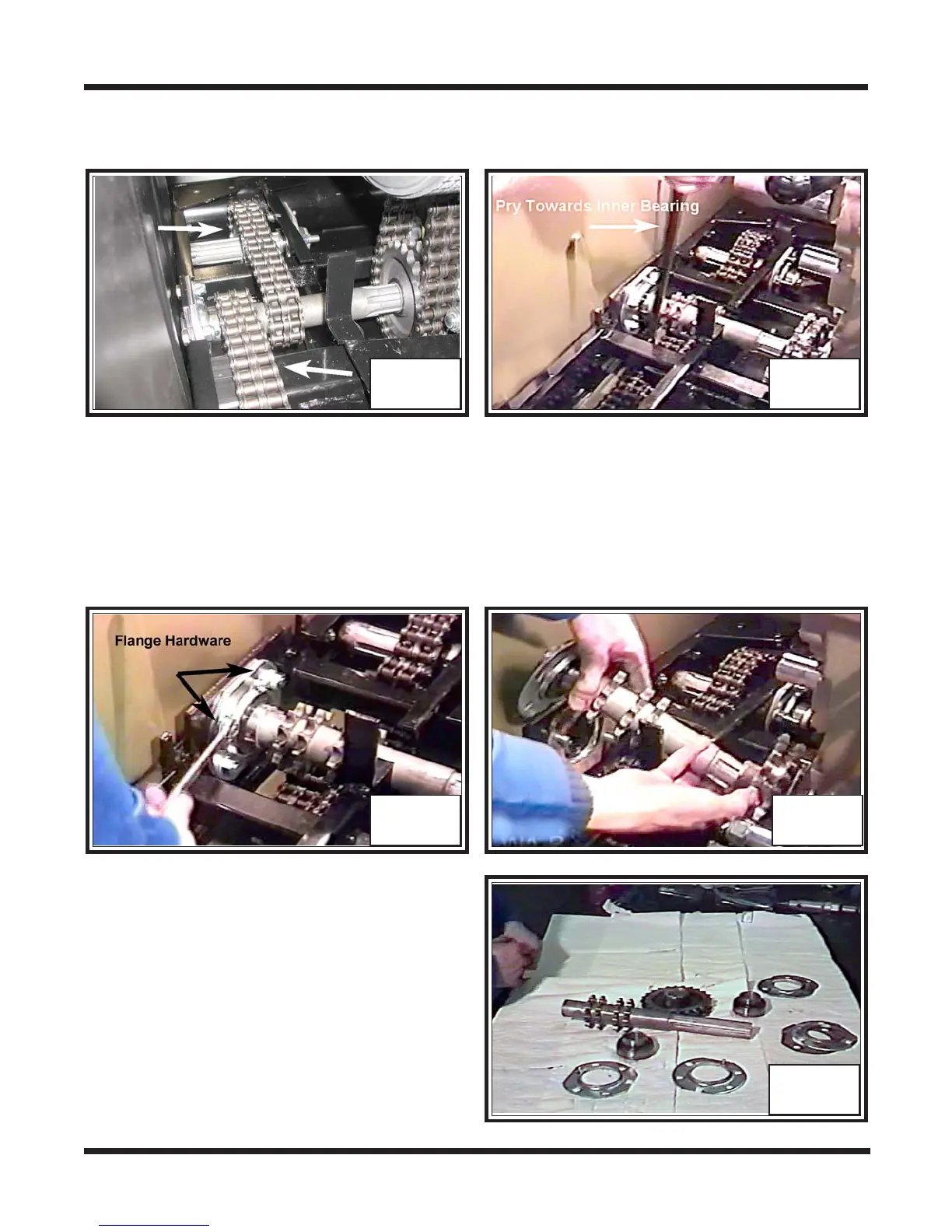

Photo WA-56
On vehicles manufactured prior to S/N CB16970, RB17033 and BF11543:
i. Remove the hardware securing the flanges of the inner and outer bearings. Photo
WA-54
ii. Slide the idler shaft assembly towards the inner bearing, and lift up and out at the
outer bearing and flange assembly. Photo WA-55
9. With the set screws removed, pry the idler axle until it slides freely by hand within
the inner and outer bearing. Photo WA-53
WA-52 WA-53
WA-56
To Next Page
