Argo Service Manual Wheels, Axles & Chains
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-35
WA-72
WA-73

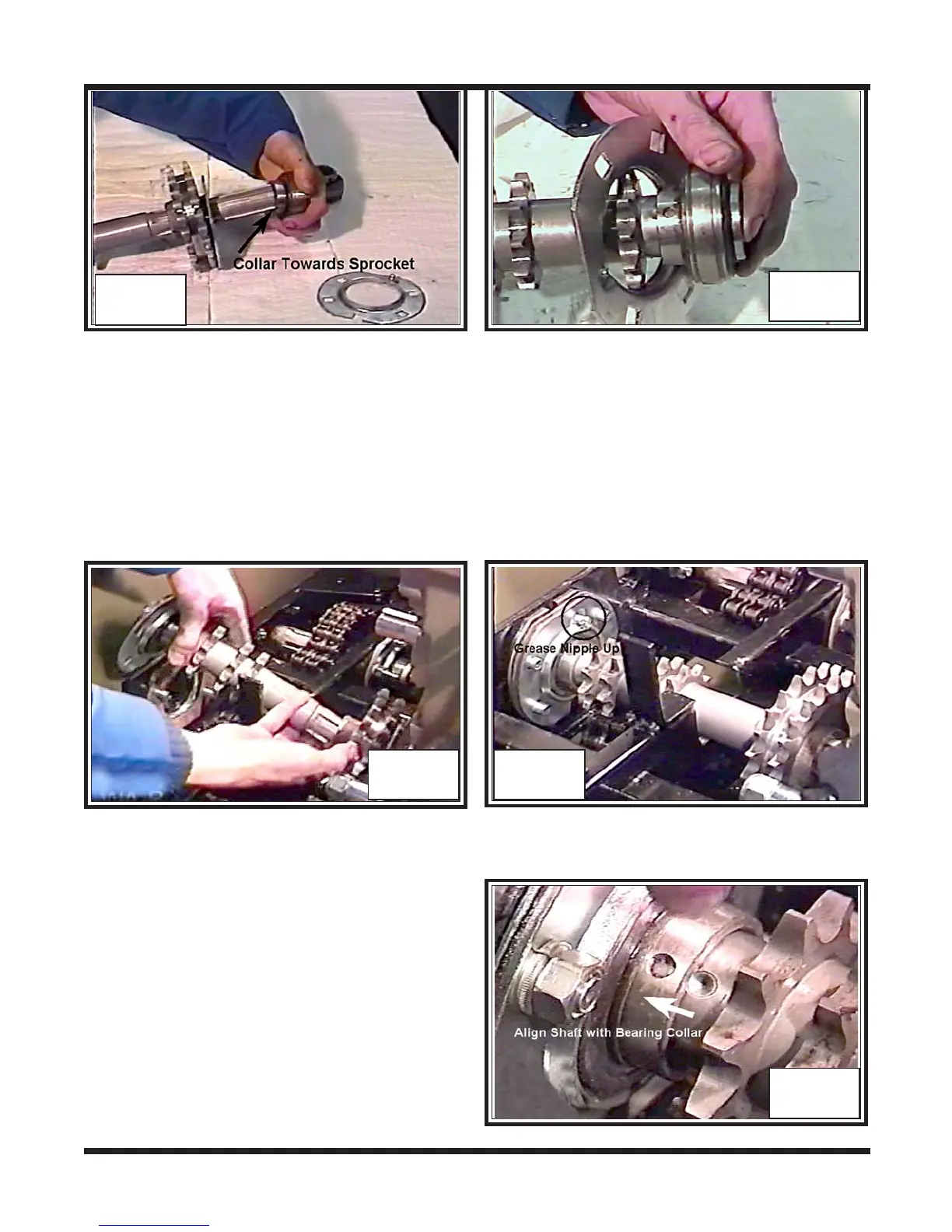

v. Install the idler shaft assembly into the vehicle. Slip the inner bearing end of the
shaft in first, then drop the outer bearing end connecting bearing and flanges to the
studs. Photo WA-74
IMPORTANT
Ensure that the greasable flanges are installed with the greaseable fitting facing up.
Photo WA-75
vi. Install all bearing flange hardware and tighten securely. Torque to specifications
vii. Align the 2 set screw holes of the
outer bearing with the 2 machined
countersinks of the idler shaft. Apply
blue 242 LOCTITE to both hole and
threads of the set screw and install.
Photo WA-76 Torque to specifica-
tions.
WA-74 WA-75
WA-76
