Argo Service Manual Transmission
TR-33
18. Locate the Spline Shaft and assemble the appropriate Drive Gear to the splined end
of it. Orient the gear with the machined side down. Photo TR-101, 102 & 103
Drive Gears are as follows:
M Drive Gear
H Drive Gear
G Drive Gear
19. Place a Double Gear into the assembly stand or an aluminum jawed vise on the work
bench. Place it into the stand with the machined hole side up. Photo TR-104 &
105
20. Install a Spring to the inner hole of the Double Gear. Photo TR-106 & 107

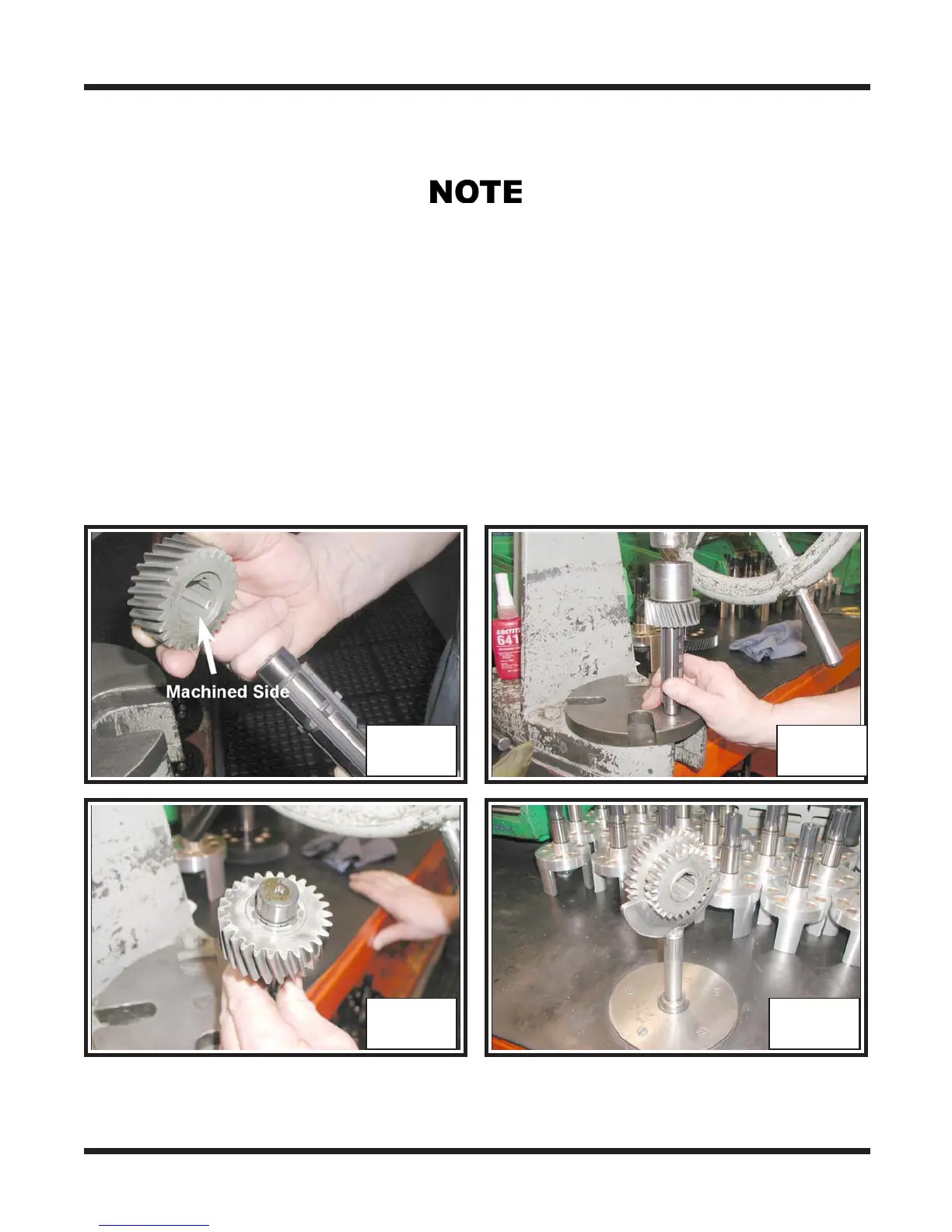

TR-101
TR-103 TR-104
TR-102
