Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
Argo Service Manual Transmission
TR-39
35. Install the 34-63 Shifter Yoke to the 34-65 Shifter Assembly securing it with a 107-
05 Retaining Ring. Photo TR-136, 137 & 138
36. Install the 113-01 “O” ring to the 34-65 Shifter Assembly. Photo TR-139 & 140
(following page)
37. From the inside of the Housing, slip the Shifter Assembly through the Oilite Bushing
at the top of the Housing. Photo TR-141 (following page).
Any transmission being
serviced and rebuilt between Serial Numbers: CB17471 - CB19432, RB17525 - RB19441,
BF11917 - BF13347, SN11905 - SN13349, or S11906 - S13350, would benefit from having this
new 108-74 shim washer installed at the time of the rebuild. Even though this may not have
been an issue, it will be a good precautionary measure for the future. Photo TR-142

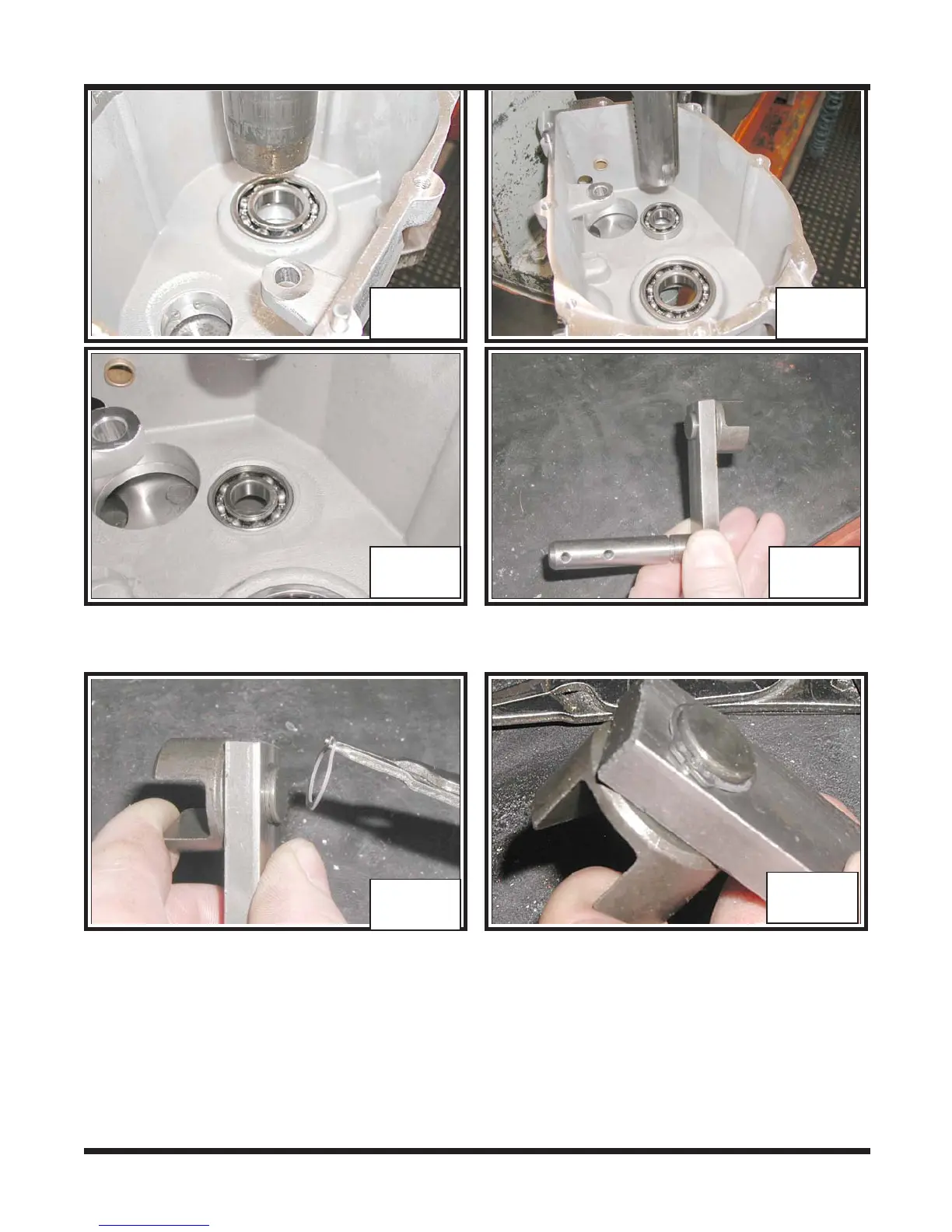

TR-133 TR-134
TR-135 TR-136
TR-137
TR-138
