Transmission Argo Service Manual

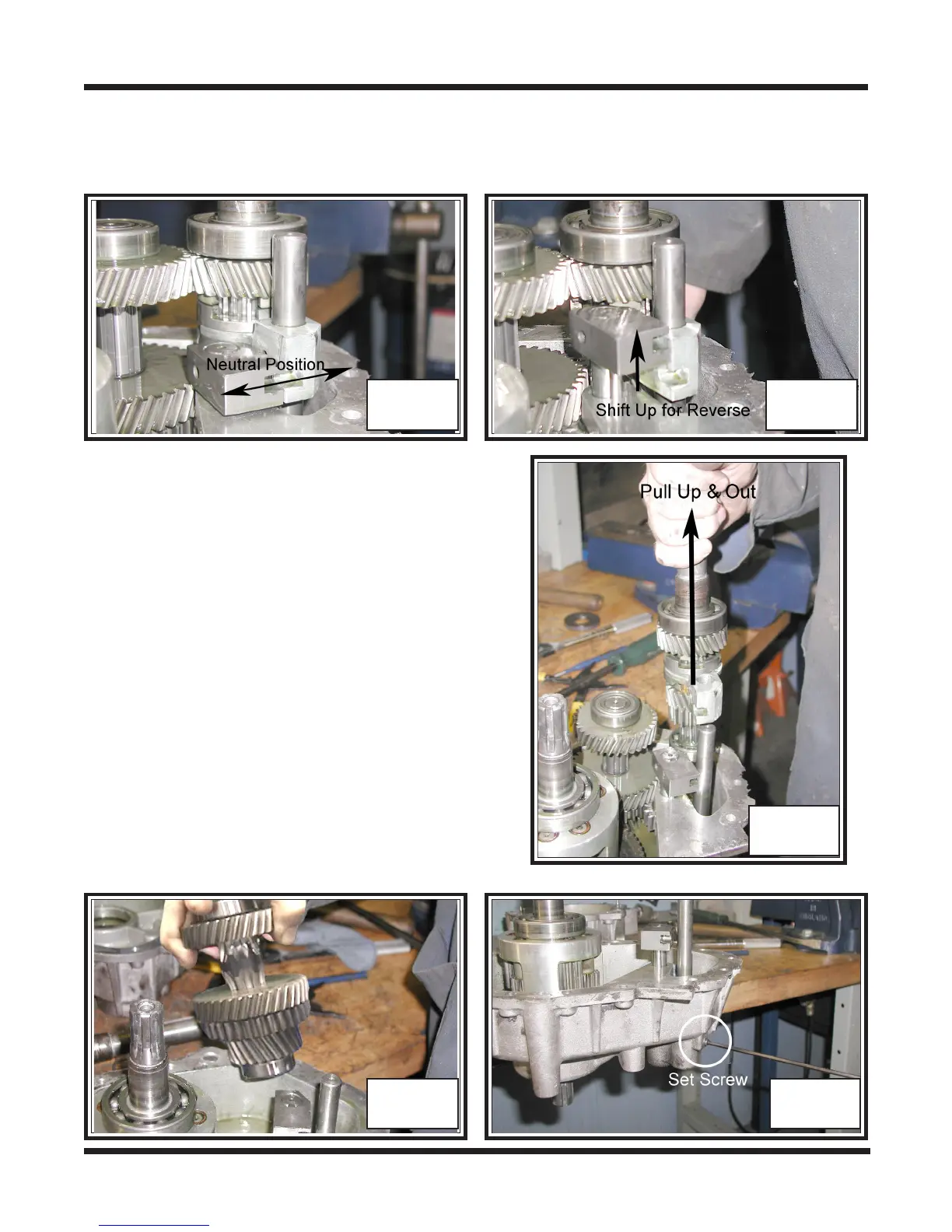

9. Place shift shaft back into neutral. Photo TR-10
10. Place reverse shift shaft into reverse. Photo TR-11
TR-10 TR-11
11. Pull the input shaft from the transmission
housing. Photo TR-12
TR-12
12. Remove the spline shaft drive gear assembly.
Photo TR-13
13. Remove the set screw securing the ball and
spring within the housing at the hi/lo shift shaft
assembly. Photo TR-14
14. Remove the spring and steel ball.
Photo TR-15 & 16
15. Place the reverse shift shaft block back
down against the housing (out of reverse).
Photo TR-17
TR-13 TR-14
16. Remove the hi/lo shift shaft from the hous-
ing. Photo TR-18
To Next Page
