TR-37A
Argo Service Manual Transmission

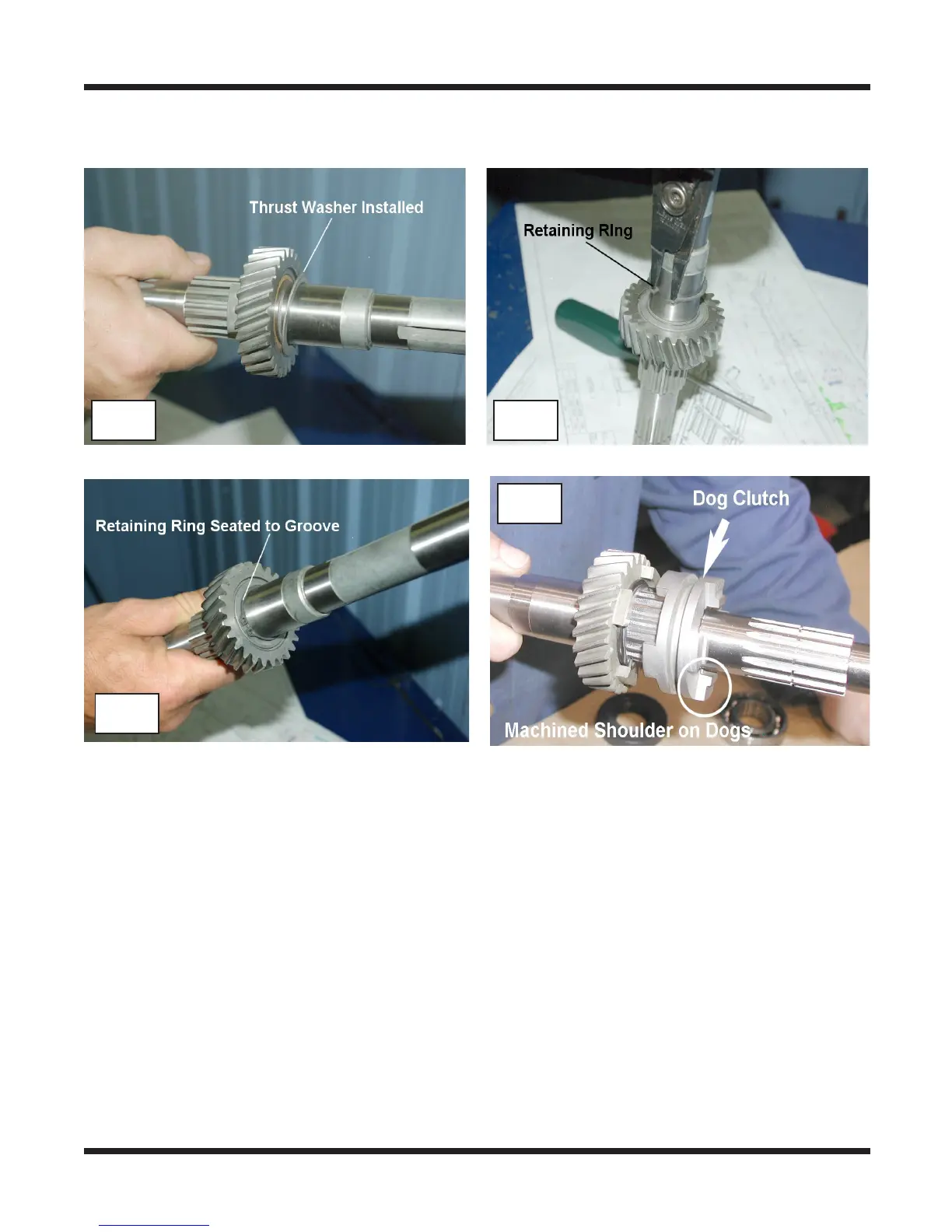

6. Slip a 108-79 Thrust Washer to the other side of the High Gear Pinion and secure with
a 107-02 Retaining Ring. Photos 9, 10 & 11
6. Slip the Dog Clutch to the Input Shaft. Photo 12
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
The Dog Clutch needs to be oriented correctly when assembled to the Input Shaft.
The dogs on one side of the clutch have a small machined shoulder. These dogs
will engage with the Low Gear Pinion so they face away from the previously
installed High Gear Pinion Photo 12
9 10
11
12
7. Install the Low Gear Pinion with the dogs facing towards the previously installed Dog
Clutch. Photo 13
8. Slip the Reverse Gear Pinion on to the Input Shaft and up against the Low Gear Pinion.
Orient the Reverse Gear Pinion with the chamfered teeth facing up. Photo 14
