A1, A2 VLAN-33 33
A3, A4 VLAN-44 44

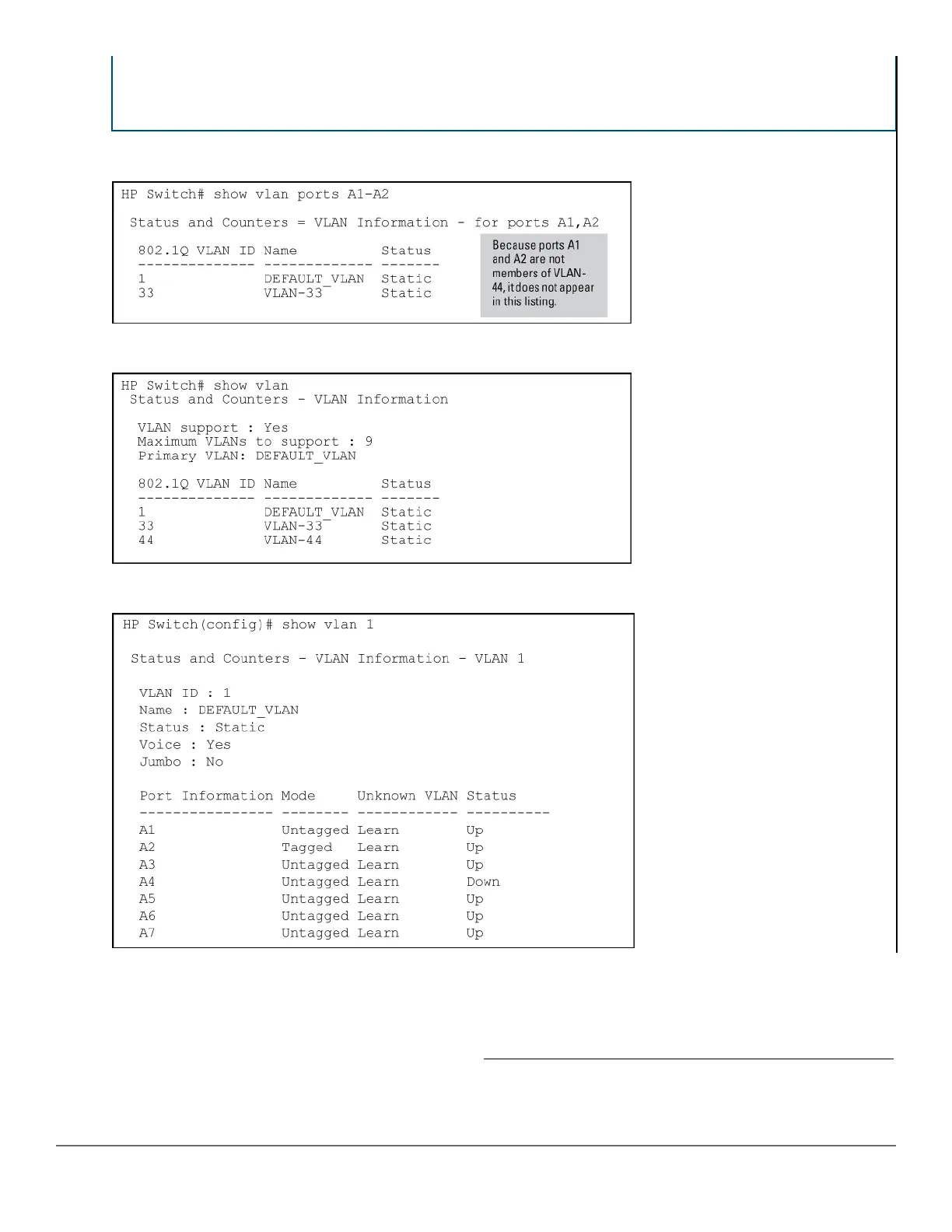

Figure 48: Listing the VLAN ID (vid) and status for specific ports
Figure 49: Example of VLAN listing for the entire switch
Figure 50: Port listing for an individual VLAN
Configuring a source switch in a local mirroring session
Enter the mirror port command on the source switch to configure an exit port on the same switch. To create
the mirroring session, use the information gathered in High-level overview of the mirror configuration process
on page 295.
Chapter 15 Monitoring and Analyzing Switch Operation 291
