Z100-TYPE HARDWARE
NOTE: EACH SOLID CONNECTING LINE REPRESENTS A PAIR OF WIRES

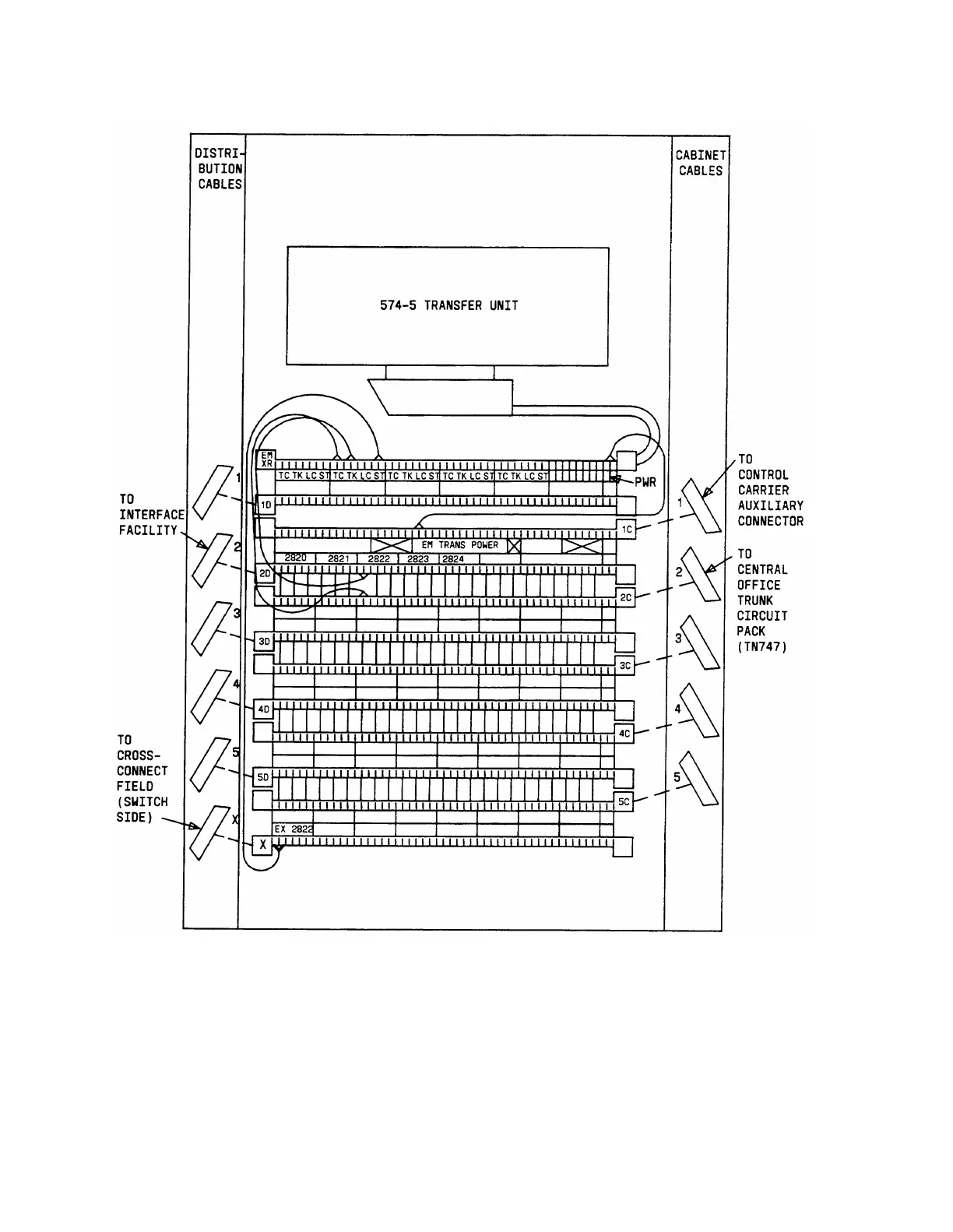

Figure 2-88. Connections at Cable Access Panel for Voice Terminal Used Only
for Emergency Transfer—574-5 Power Transfer Unit
2-125
