110-TYPE HARDWARE
110A-Type Hardware
The 110A-type hardware consists of a 100- or 300-pair wiring block with mounting legs and
connecting blocks. The 100-pair wiring blocks require field termination (see Figure 3-4). The
300-pair wiring blocks come in field-terminated and connectorized (6-foot connectorized male
or female cables attached) types (see Figure 3-5).

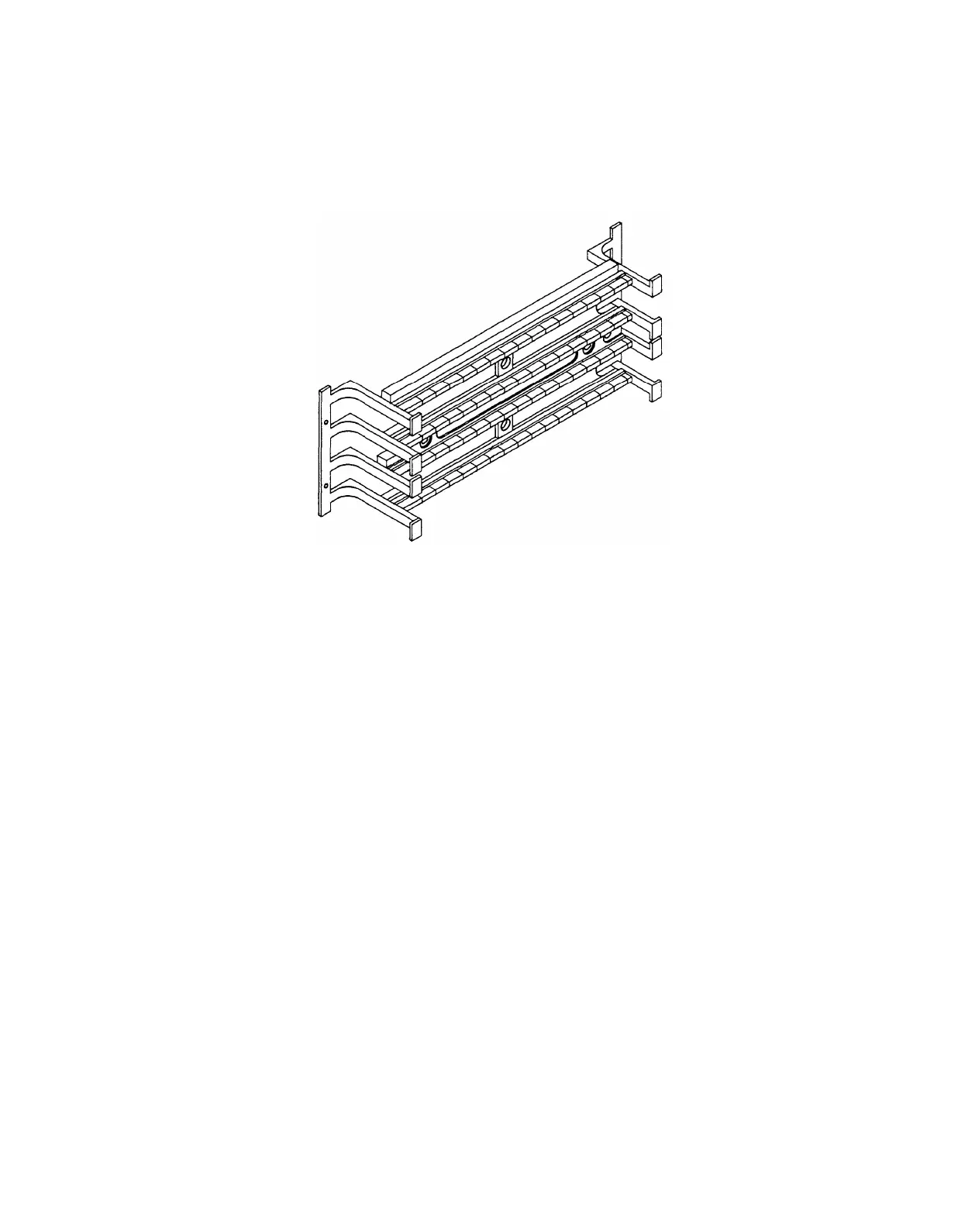

Figure 3-4. 110A-Type 100-Pair Terminal Block
3-6
